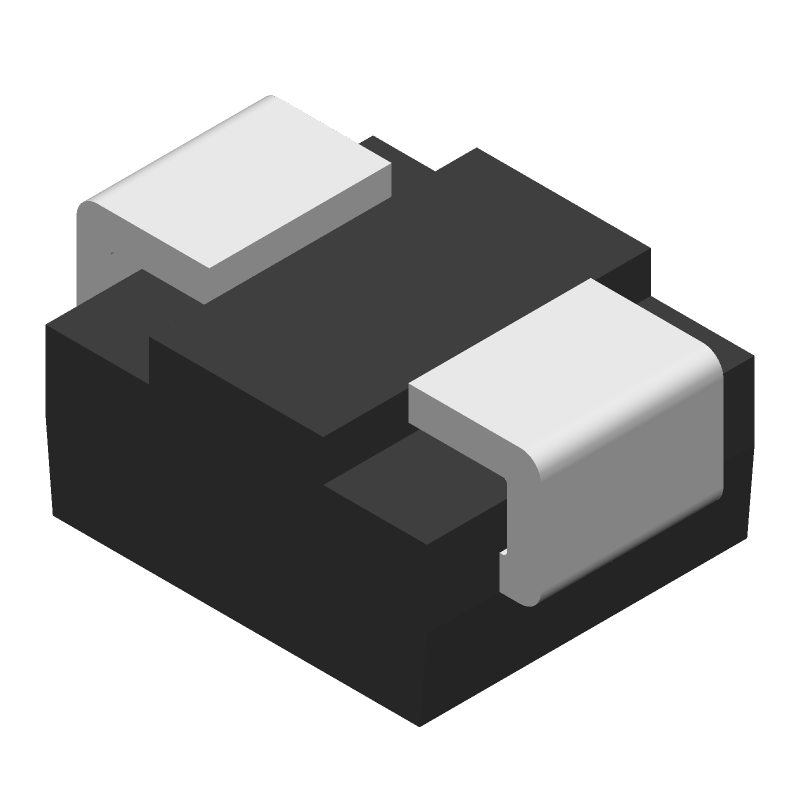

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ10CA-TR by STMicroelectronics
Results Overview of SMBJ10CA-TR by STMicroelectronics
- Distributor Offerings: (33 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ10CA-TR Information
SMBJ10CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ10CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34M8522
|
Newark | Tvs Diode, Bidir, 21.7V, Do-214Aa, Product Range:Transil Smbj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:10V, Clamping Voltage Max:21.7V, Diode Case Style:Do-214Aa (Smb), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Stmicroelectronics SMBJ10CA-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 7120 |
|
$0.1220 | Buy Now |
|
DISTI #
94W9396
|
Newark | Transient Voltage Suppressor, Tvs, Transil Smbj Series, Bidirectional, 10 V, Do-214Aa, 2, 11.1 V Rohs Compliant: Yes |Stmicroelectronics SMBJ10CA-TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1330 | Buy Now |
|
DISTI #
497-3000-1-ND
|
DigiKey | TVS DIODE 10VWM 17VC SMB Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
21235 In Stock |
|
$0.1047 / $0.3400 | Buy Now |
|
DISTI #
SMBJ10CA-TR
|
Avnet Americas | - Tape and Reel (Alt: SMBJ10CA-TR) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 7500 |
|
$0.0616 / $0.0677 | Buy Now |
|
DISTI #
34M8522
|
Avnet Americas | TVS Diode, Bidirectional, 10 V, 17 V, DO-214AA (SMB), 2 Pins - Product that comes on tape, but is not reeled (Alt: 34M8522) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Ammo Pack | 7120 Partner Stock |
|
$0.2460 / $0.5030 | Buy Now |
|
DISTI #
SMBJ10CA-TR
|
Avnet Americas | TVS Diode, Bidirectional, 10 V, 17 V, DO-214AA (SMB), 2 Pins - Tape and Reel (Alt: SMBJ10CA-TR) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1039 / $0.1131 | Buy Now |
|
DISTI #
511-SMBJ10CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 10V Bidirect RoHS: Compliant | 22211 |
|
$0.1040 / $0.3200 | Buy Now |
|
DISTI #
E02:0323_00213628
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Date Code: 2502 | Europe - 42500 |
|
$0.0847 | Buy Now |
|
DISTI #
V72:2272_06548983
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2315 Container: Cut Strips | Americas - 5511 |
|
$0.1013 / $0.1632 | Buy Now |
|
DISTI #
V36:1790_06548983
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 7500 Package Multiple: 2500 Lead time: 13 Weeks Date Code: 2502 | Americas - 5000 |
|
$0.0838 / $0.1003 | Buy Now |
Part Details for SMBJ10CA-TR
SMBJ10CA-TR CAD Models
SMBJ10CA-TR Part Data Attributes
|
|
SMBJ10CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMBJ10CA-TR
STMicroelectronics
600 W, 10 V TVS in SMB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AA | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMB, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Min | 11.1 V | |
| Breakdown Voltage-Nom | 11.7 V | |
| Clamping Voltage-Max | 21.7 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 4000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 10 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
