SMBJ10CA-E3/52 Information
SMBJ10CA-E3/52 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ10CA-E3/52
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1698865
|
Farnell | DIODE, TVS, 600W, 10V, BIDIR, SMB RoHS: Compliant Min Qty: 5 Lead time: 14 Weeks, 1 Days Container: Each | 1957 |
|
$0.1481 / $0.3588 | Buy Now |
|
DISTI #
SMBJ10CA-E3/52
|
Avnet Americas | TVS Diode, Bidirectional, 10 V, 17 V, DO-214AA (SMB), 2 Pins - Tape and Reel (Alt: SMBJ10CA-E3/52) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 11 Weeks, 0 Days Container: Reel | 73500 |
|
$0.0538 | Buy Now |
|
DISTI #
625-SMBJ10CA-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 10V 800W Bidir TransZorb 5% Tol RoHS: Compliant | 16562 |
|
$0.0860 / $0.1400 | Buy Now |
|
DISTI #
V36:1790_18763055
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2338 | Americas - 38250 |
|
$0.0586 / $0.0682 | Buy Now |
|
DISTI #
E02:0323_00192507
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 750 Package Multiple: 750 Lead time: 11 Weeks Date Code: 2504 | Europe - 4500 |
|
$0.0988 | Buy Now |
|
DISTI #
V72:2272_18763055
|
Arrow Electronics | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2312 Container: Cut Strips | Americas - 5 |
|
$0.0860 | Buy Now |
|
DISTI #
76458314
|
Verical | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2338 | Americas - 36000 |
|
$0.0586 / $0.0682 | Buy Now |
|
DISTI #
87670471
|
Verical | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 750 Package Multiple: 750 Date Code: 2504 | Americas - 4500 |
|
$0.0851 | Buy Now |
|
DISTI #
66386070
|
Verical | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R Min Qty: 437 Package Multiple: 1 Date Code: 2223 | Americas - 1717 |
|
$0.0998 | Buy Now |
|
|
Bristol Electronics | 6591 |
|
RFQ |
Part Details for SMBJ10CA-E3/52

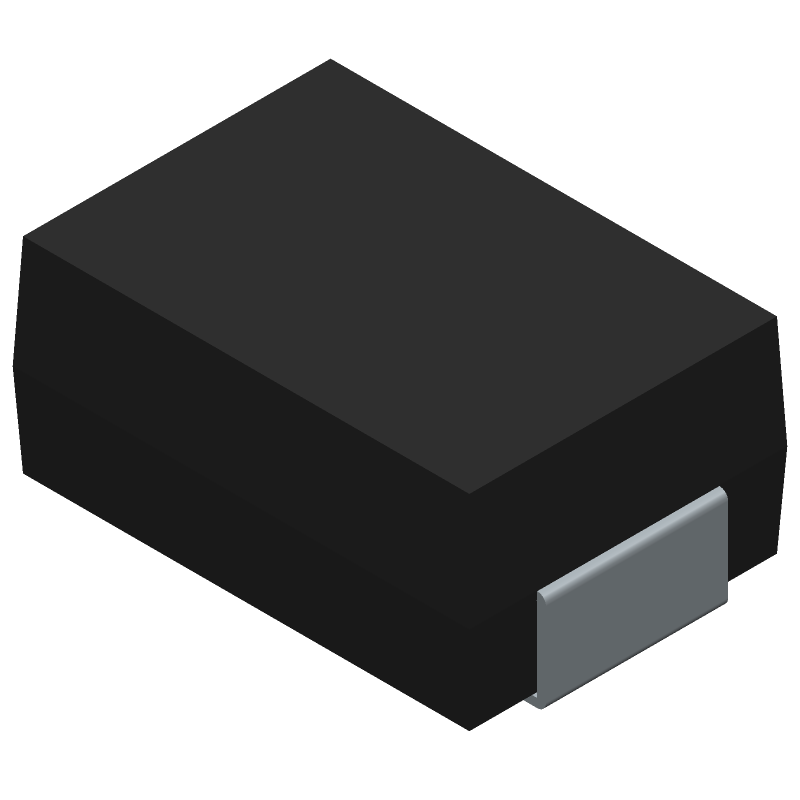

SMBJ10CA-E3/52 CAD Models
SMBJ10CA-E3/52 Part Data Attributes
|
|
SMBJ10CA-E3/52
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMBJ10CA-E3/52
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 600W, 10V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED | |
| Breakdown Voltage-Max | 12.3 V | |
| Breakdown Voltage-Min | 11.1 V | |
| Breakdown Voltage-Nom | 11.7 V | |
| Clamping Voltage-Max | 17 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 10 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 10 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMBJ10CA-E3/52
This table gives cross-reference parts and alternative options found for SMBJ10CA-E3/52. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ10CA-E3/52, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ10CA | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 10V V(RWM), Bidirectional, | SMBJ10CA-E3/52 vs SMBJ10CA |
| SMBJ10C-E3/5B | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 10V V(RWM), Bidirectional, | SMBJ10CA-E3/52 vs SMBJ10C-E3/5B |
| SMBJ10CA | Changzhou Starsea Electronics Co Ltd | Check for Price | Transient Suppressor | SMBJ10CA-E3/52 vs SMBJ10CA |
| SMBJ10C | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 600W, 10V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ10CA-E3/52 vs SMBJ10C |
| SMBJ10C-E3/52 | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 600W, 10V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN | SMBJ10CA-E3/52 vs SMBJ10C-E3/52 |
| SMBJ10CA | Bytesonic Corporation | Check for Price | Trans Voltage Suppressor Diode, 10V V(RWM), Bidirectional | SMBJ10CA-E3/52 vs SMBJ10CA |
| SMBJ10CA_NL | Fairchild Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 10V V(RWM), Bidirectional, 1 Element, Silicon, LEAD FREE, SMB, 2 PIN | SMBJ10CA-E3/52 vs SMBJ10CA_NL |
| SMBJ10C/TR | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 10V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 | SMBJ10CA-E3/52 vs SMBJ10C/TR |
SMBJ10CA-E3/52 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ10CA-E3/52 can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for PCB layout and assembly.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the maximum junction temperature (Tj) of 150°C. Additionally, ensure proper thermal management and heat dissipation in the system design.
-
The SMBJ10CA-E3/52 has an ESD rating of Class 3A (>2500 V) per the Human Body Model (HBM) and Class M3 (>200 V) per the Machine Model (MM).
-
Yes, the SMBJ10CA-E3/52 is AEC-Q101 qualified, which makes it suitable for use in automotive applications. However, it is recommended to consult with Vishay Intertechnologies' application engineers to ensure the device meets the specific requirements of the application.
-
The SMBJ10CA-E3/52 should be stored in a dry, cool place, away from direct sunlight and moisture. It is recommended to follow the EIA-583 standard for storage and handling of electronic components.
