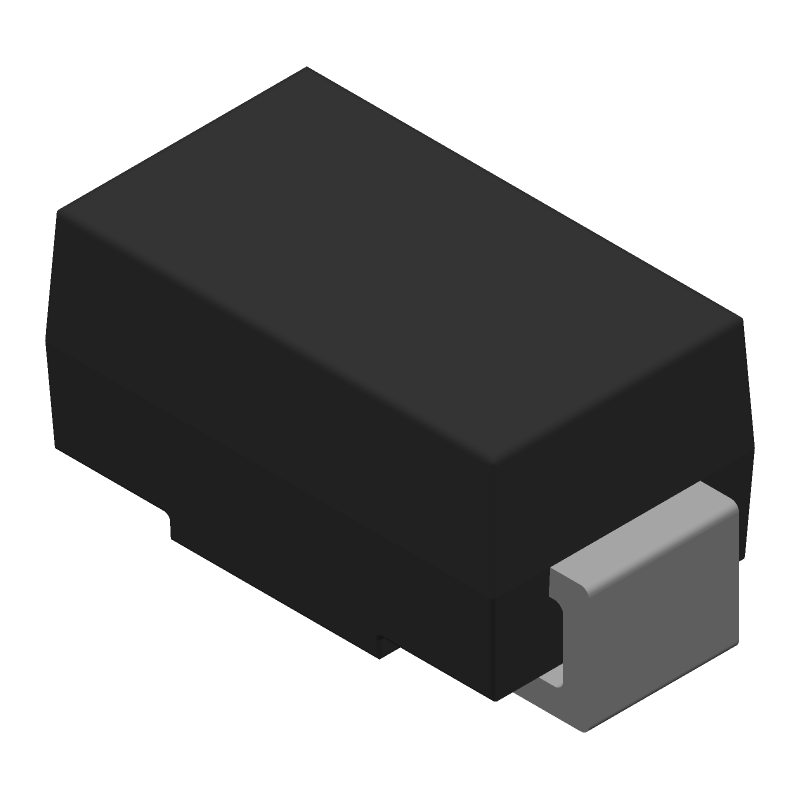

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ85CA-TR by STMicroelectronics
Results Overview of SMAJ85CA-TR by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ85CA-TR Information
SMAJ85CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ85CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-7897-1-ND
|
DigiKey | TVS DIODE 85VWM 178VC DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
9558 In Stock |
|
$0.1215 / $0.4500 | Buy Now |
|
DISTI #
SMAJ85CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 85V 400W 2-Pin SMA T/R - Tape and Reel (Alt: SMAJ85CA-TR) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.0583 / $0.0640 | Buy Now |
|
DISTI #
511-SMAJ85CA-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 400W 85V Bidirect RoHS: Compliant | 2036 |
|
$0.1280 / $0.7000 | Buy Now |
|
|
STMicroelectronics | 400 W, 85 V TVS in SMA RoHS: Compliant Min Qty: 1 | 2036 |
|
$0.2100 / $0.4300 | Buy Now |
|
|
Future Electronics | SMAJ Series 400 W 85 V Bi Directional Surface Mount TVS Diode - DO-214AC Min Qty: 5000 Package Multiple: 5000 |
45000 null |
|
$0.0462 / $0.0489 | Buy Now |
|
DISTI #
SMAJ85CA-TR
|
TME | Diode: TVS, 400W, 99V, 13A, bidirectional, SMA, reel,tape Min Qty: 1 | 0 |
|
$0.0760 / $0.3630 | RFQ |
|
DISTI #
SMAJ85CA-TR
|
Avnet Silica | Diode TVS Single BiDir 85V 400W 2Pin SMA TR (Alt: SMAJ85CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | Silica - 55000 |
|
Buy Now | |
|
DISTI #
SMAJ85CA-TR
|
EBV Elektronik | Diode TVS Single BiDir 85V 400W 2Pin SMA TR (Alt: SMAJ85CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | EBV - 10000 |
|
Buy Now | |
|
|
Vyrian | Diodes | 11292 |
|
RFQ |
Part Details for SMAJ85CA-TR
SMAJ85CA-TR CAD Models
SMAJ85CA-TR Part Data Attributes
|
|
SMAJ85CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMAJ85CA-TR
STMicroelectronics
400 W TVS in SMA
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | MOS COMPATIBLE | |
| Breakdown Voltage-Min | 94.4 V | |
| Clamping Voltage-Max | 178 V | |
| Configuration | SINGLE | |
| Diode Capacitance-Min | 100 pF | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 3.3 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 85 V | |
| Reverse Current-Max | 1 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMAJ85CA-TR
This table gives cross-reference parts and alternative options found for SMAJ85CA-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ85CA-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMAJ85CA-13 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 85V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN | SMAJ85CA-TR vs SMAJ85CA-13 |
| SMAJ85CA-E3/5A | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 300W, 85V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN | SMAJ85CA-TR vs SMAJ85CA-E3/5A |
| P4SMAJ85C | SEMIKRON | Check for Price | Trans Voltage Suppressor Diode, 400W, 85V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | SMAJ85CA-TR vs P4SMAJ85C |
| SMAJ85A-7 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 85V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN | SMAJ85CA-TR vs SMAJ85A-7 |
SMAJ85CA-TR Frequently Asked Questions (FAQ)
-
The recommended footprint for SMAJ85CA-TR is a standard SOD128 package with a 1.5mm x 0.8mm body size and a 0.5mm pitch.
-
To ensure reliability, follow the recommended derating curves for voltage and current, and ensure the device is operated within the specified temperature range of -40°C to 150°C.
-
Yes, the SMAJ85CA-TR is suitable for high-frequency applications up to 1 GHz. However, ensure that the device is properly decoupled and follow the recommended PCB layout guidelines to minimize parasitic effects.
-
The SMAJ85CA-TR can withstand a maximum surge current of 40A, as specified in the datasheet.
-
Select the correct variant based on the required standoff voltage, which ranges from 5V to 85V for the SMAJ85CA-TR series. Ensure the selected variant meets the application's voltage and current requirements.
