Diodes / Transient Suppressors / SMAJ8.5A
Datasheets

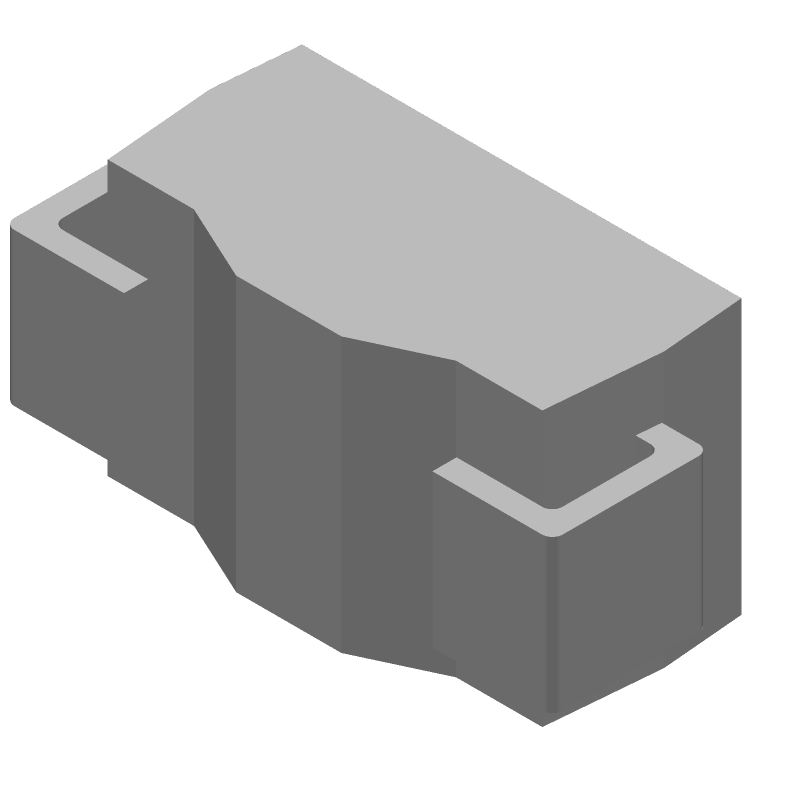

SMAJ8.5A by:

Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for SMAJ8.5A by Bourns Inc

Results Overview of SMAJ8.5A by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

SMAJ8.5A Information

SMAJ8.5A by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMAJ8.5A

Part # Distributor Description Stock Price Buy
DISTI # 67R1601
Newark Diode, Product Range:Smaj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:8.5V, Clamping Voltage Max:-, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:9.44V, Qualification:- Rohs Compliant: Yes |Bourns SMAJ8.5A RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 50 $0.1710
$0.1710 Buy Now
DISTI # SMAJ8.5ABCT-ND
DigiKey TVS DIODE 8.5VWM 14.4V DO214AC Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 9011
In Stock
  • 1 $0.3500
  • 10 $0.2370
  • 100 $0.1040
  • 500 $0.1030
  • 1,000 $0.1020
  • 5,000 $0.0890
  • 10,000 $0.0810
  • 15,000 $0.0765
  • 25,000 $0.0725
$0.0725 / $0.3500 Buy Now
DISTI # SMAJ8.5A
Avnet Americas Diode TVS Single Uni-Dir 8.5V 400W 2-Pin SMA - Tape and Reel (Alt: SMAJ8.5A) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0776
  • 20,000 $0.0429
  • 30,000 $0.0427
  • 50,000 $0.0425
  • 100,000 $0.0422
$0.0422 / $0.0776 Buy Now
DISTI # 652-SMAJ8.5A
Mouser Electronics ESD Protection Diodes / TVS Diodes 8.5volts 10/20uA 27.7 Amps Uni-Dir RoHS: Compliant 13301
  • 1 $0.4900
  • 10 $0.3360
  • 100 $0.1900
  • 500 $0.1500
  • 1,000 $0.1270
  • 2,500 $0.1070
  • 5,000 $0.1020
  • 10,000 $0.0920
  • 25,000 $0.0830
$0.0830 / $0.4900 Buy Now
Onlinecomponents.com Diode TVS Single Uni-Dir 8.5V 400W 2-Pin SMA RoHS: Compliant 18950 In Stock
  • 5,000 $0.0837
  • 10,000 $0.0815
  • 25,000 $0.0773
  • 50,000 $0.0745
  • 100,000 $0.0727
  • 150,000 $0.0716
  • 250,000 $0.0706
$0.0706 / $0.0837 Buy Now
DISTI # 51514167
Verical Diode TVS Single Uni-Dir 8.5V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 1710 Americas - 15000
  • 5,000 $0.1088
  • 10,000 $0.1060
  • 25,000 $0.1005
  • 50,000 $0.0969
  • 100,000 $0.0945
$0.0945 / $0.1088 Buy Now
DISTI # SMAJ8.5A
TTI ESD Protection Diodes / TVS Diodes 8.5volts 10/20uA 27.7 Amps Uni-Dir pbFree: Pb-Free Min Qty: 10000 Package Multiple: 5000 Container: Reel Americas - 0
  • 10,000 $0.0540
$0.0540 Buy Now
DISTI # SMAJ8.5A-BOU
TME Diode: TVS, 0.4kW, 9.44÷10.4V, 27.8A, unidirectional, ±5%, SMA, SMAJ Min Qty: 1 0
  • 1 $0.4186
  • 10 $0.2513
  • 100 $0.1252
  • 250 $0.0775
  • 1,000 $0.0670
  • 2,500 $0.0628
  • 5,000 $0.0586
$0.0586 / $0.4186 RFQ
DISTI # SMAJ8.5A
Avnet Abacus Diode TVS Single UniDir 85V 400W 2Pin SMA - Tape and Reel (Alt: SMAJ8.5A) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics Diode TVS Single Uni-Dir 8.5V 400W 2-Pin SMA RoHS: Compliant 18950 In Stock
  • 5,000 $0.0837
  • 10,000 $0.0815
  • 25,000 $0.0773
  • 50,000 $0.0745
  • 100,000 $0.0727
  • 150,000 $0.0716
  • 250,000 $0.0706
$0.0706 / $0.0837 Buy Now

Part Details for SMAJ8.5A

SMAJ8.5A Part Data Attributes

Parametric Data
SMAJ8.5A Bourns Inc
Buy Now Datasheet
Compare Parts:
SMAJ8.5A Bourns Inc Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Part Package Code DO-214AC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Breakdown Voltage-Max 10.4 V
Breakdown Voltage-Min 9.44 V
Breakdown Voltage-Nom 9.92 V
Clamping Voltage-Max 14.4 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1 W
Qualification Status Not Qualified
Reference Standard IEC-61000-4-2, 4-4, 4-5
Rep Pk Reverse Voltage-Max 8.5 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SMAJ8.5A

This table gives cross-reference parts and alternative options found for SMAJ8.5A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ8.5A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMAJ8.5A MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A
P4SMAJ8.5 Surge Components Inc Check for Price Trans Voltage Suppressor Diode, Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ8.5A vs P4SMAJ8.5
SMAJ8.5A Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, SURFACE MOUNT PACKAGE-2 SMAJ8.5A vs SMAJ8.5A
SMAJ8.5A EIC Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 8.5V V(RWM), Unidirectional, SMAJ8.5A vs SMAJ8.5A
SMAJ8.5AHM3/H Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, SMAJ8.5A vs SMAJ8.5AHM3/H
SMAJ8.5A Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A
SMAJ8.5 Lite-On Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5
SMAJ8.5A Concord Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 8.5V V(RWM), Unidirectional, SMAJ8.5A vs SMAJ8.5A
SMAJ8.5A-H Bourns Inc Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A-H
Part Number Manufacturer Composite Price Description Compare
SMAJ8.5A-E3/61 Vishay Intertechnologies $0.1146 Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A-E3/61
SMAJ8.5 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5
P4SMAJ8.5A Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ8.5A vs P4SMAJ8.5A
SMAJ8.5 Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 SMAJ8.5A vs SMAJ8.5
P4SMAJ8.5A Surge Components Inc Check for Price Trans Voltage Suppressor Diode, Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ8.5A vs P4SMAJ8.5A
SMAJ8.5A-13 Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A-13
P4SMAJ8.5A World Products Inc Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 SMAJ8.5A vs P4SMAJ8.5A
SMAJ8.5A General Instrument Corp Check for Price Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, SMAJ8.5A vs SMAJ8.5A
SMAJ8.5 Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5
SMAJ8.5A Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ8.5A vs SMAJ8.5A

SMAJ8.5A Related Parts

SMAJ8.5A Frequently Asked Questions (FAQ)

  • The recommended footprint for SMAJ8.5A is a standard SOD123 package with a pad size of 2.5mm x 1.5mm.

  • Yes, SMAJ8.5A is rated for operation up to 150°C, making it suitable for high-temperature applications.

  • The cathode (negative leg) of SMAJ8.5A is marked with a band, ensure it is correctly oriented during mounting to avoid damage.

  • The maximum surge current rating for SMAJ8.5A is 8.5A, as indicated in the part number.

  • Yes, SMAJ8.5A is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
