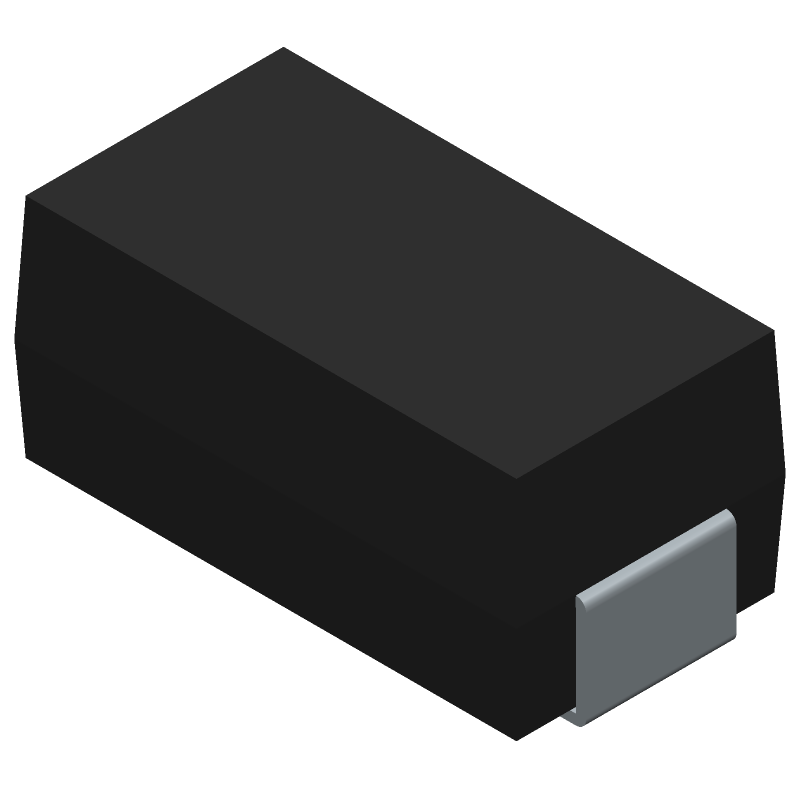

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ6.0CA by Littelfuse Inc
Results Overview of SMAJ6.0CA by Littelfuse Inc
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ6.0CA Information
SMAJ6.0CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ6.0CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06R1896
|
Newark | Tvs Diode, 400W, 6V, Do-214Ac, Full Reel, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:6V, Clamping Voltage Max:10.3V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Littelfuse SMAJ6.0CA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1120 / $0.1720 | Buy Now |
|
DISTI #
71J2047
|
Newark | Tvs Diode, 400W, 6V, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:6V, Clamping Voltage Max:10.3V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:6.67V Rohs Compliant: Yes |Littelfuse SMAJ6.0CA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3040 | Buy Now |
|
DISTI #
SMAJ6.0CALFCT-ND
|
DigiKey | TVS DIODE 6VWM 10.3VC DO214AC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2060 In Stock |
|
$0.0612 / $0.3100 | Buy Now |
|
DISTI #
576-SMAJ6.0CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 400W 6V 5% Bi-Directional RoHS: Compliant | 19372 |
|
$0.0720 / $0.3100 | Buy Now |
|
DISTI #
P40:2555_25451970
|
Arrow Electronics | TVS Diode Single Bi-Dir 6V 400W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Date Code: 2324 | Europe - 3800 |
|
$0.1060 / $0.2947 | Buy Now |
|
DISTI #
V72:2272_06468695
|
Arrow Electronics | TVS Diode Single Bi-Dir 6V 400W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2319 Container: Cut Strips | Americas - 6 |
|
$0.0472 | Buy Now |
|
|
Future Electronics | SMAJ Series 10.3 V 400 W Surface Mount Bi-Directional TVS Diode - DO-214AC RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel | 40000Reel |
|
$0.0464 / $0.0497 | Buy Now |
|
|
Future Electronics | SMAJ Series 10.3 V 400 W Surface Mount Bi-Directional TVS Diode - DO-214AC RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0464 / $0.0497 | Buy Now |
|
DISTI #
87766990
|
Verical | TVS Diode Single Bi-Dir 6V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 2445 | Americas - 30000 |
|
$0.0894 | Buy Now |
|
DISTI #
30579112
|
Verical | TVS Diode Single Bi-Dir 6V 400W 2-Pin SMA T/R Min Qty: 263 Package Multiple: 1 | Americas - 7195 |
|
$0.0868 / $0.0993 | Buy Now |
Part Details for SMAJ6.0CA
SMAJ6.0CA CAD Models
SMAJ6.0CA Part Data Attributes
|
|
SMAJ6.0CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SMAJ6.0CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 50000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, SURFACE MOUNT PACKAGE-2
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AC | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, LOW INDUCTANCE | |
| Breakdown Voltage-Max | 7.37 V | |
| Breakdown Voltage-Min | 6.67 V | |
| Breakdown Voltage-Nom | 7.02 V | |
| Clamping Voltage-Max | 10.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 3.5 V | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 3.3 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 6 V | |
| Reverse Current-Max | 800 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for SMAJ6.0CA
This table gives cross-reference parts and alternative options found for SMAJ6.0CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ6.0CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMAJ6.0C | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 400W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | SMAJ6.0CA vs SMAJ6.0C |
| SMAJ6.0CA-13 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 6V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN | SMAJ6.0CA vs SMAJ6.0CA-13 |
| SMAJ6.0CAHE3/5A | Vishay Semiconductors | Check for Price | DIODE 300 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN, Transient Suppressor | SMAJ6.0CA vs SMAJ6.0CAHE3/5A |
| SMAJ6.0CA-T3 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 400W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | SMAJ6.0CA vs SMAJ6.0CA-T3 |
| SMAJ6.0CA | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SMAJ6.0CA vs SMAJ6.0CA |
SMAJ6.0CA Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for SMAJ6.0CA can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for voltage and current, and to consider the device's thermal resistance and power dissipation. Additionally, ensure that the device is soldered correctly and that the PCB is designed to minimize thermal stress.
-
While SMAJ6.0CA is primarily designed for transient voltage suppression, it can be used in high-frequency circuits. However, the device's capacitance and inductance may affect the circuit's performance. It's essential to evaluate the device's behavior in the specific frequency range of your application.
-
To select the correct SMAJ6.0CA variant, consider the maximum voltage, current, and power requirements of your application. Also, consider the device's clamping voltage, response time, and capacitance. Littelfuse provides a selection guide and application notes to help with the selection process.
-
SMAJ6.0CA provides ESD protection up to ±30kV air discharge and ±30kV contact discharge, according to the IEC 61000-4-2 standard. However, the device's ESD protection capabilities may vary depending on the application and PCB design.
