Diodes / Transient Suppressors / SMAJ45AE3/TR13
Datasheets
SMAJ45AE3/TR13 by:

Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC

Part Details for SMAJ45AE3/TR13 by Microchip Technology Inc

Results Overview of SMAJ45AE3/TR13 by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMAJ45AE3/TR13 Information

SMAJ45AE3/TR13 by Microchip Technology Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMAJ45AE3/TR13

Part # Distributor Description Stock Price Buy
DISTI # 33AJ8977
Newark Tvs 400W, Stand-Off Voltage = 45V, +/- 5%, Uni-Dir Smaj (Do-214Ac) Rohs Compliant: Yes |Microchip SMAJ45AE3/TR13 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.1600
$0.1600 Buy Now
DISTI # SMAJ45AE3/TR13-ND
DigiKey TVS DIODE 45VWM 72.7VC DO214AC Min Qty: 5000 Lead time: 20 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.1600
$0.1600 Buy Now
DISTI # SMAJ45AE3/TR13
Avnet Americas - Tape and Reel (Alt: SMAJ45AE3/TR13) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1500
  • 10,000 $0.1476
  • 20,000 $0.1455
  • 30,000 $0.1447
  • 40,000 $0.1440
$0.1440 / $0.1500 Buy Now
DISTI # 494-SMAJ45AE3/TR13
Mouser Electronics ESD Protection Diodes / TVS Diodes TVS 400W, Stand-off voltage = 45V, +/- 5%, Uni-dir RoHS: Compliant 3941
  • 1 $0.1800
  • 100 $0.1600
$0.1600 / $0.1800 Buy Now
DISTI # SMAJ45AE3/TR13
Microchip Technology Inc Uni-Directional TVS _ SMAJ (DO-214AC), Projected EOL: 2049-02-02 COO: China Lead time: 20 Weeks, 0 Days 0

Alternates Available
  • 1 $0.1800
  • 100 $0.1600
  • 1,000 $0.1500
$0.1500 / $0.1800 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 1,250 $0.2400
  • 2,500 $0.1800
  • 3,750 $0.1680
  • 5,000 $0.1646
$0.1646 / $0.2400 Buy Now
NAC TVS RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 0
  • 1 $0.1800
  • 100 $0.1700
  • 500 $0.1500
  • 1,000 $0.1500
$0.1500 / $0.1800 Buy Now
DISTI # SMAJ45AE3/TR13
Avnet Silica (Alt: SMAJ45AE3/TR13) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 1,250 $0.2400
  • 2,500 $0.1800
  • 3,750 $0.1680
  • 5,000 $0.1646
$0.1646 / $0.2400 Buy Now

Part Details for SMAJ45AE3/TR13

SMAJ45AE3/TR13 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

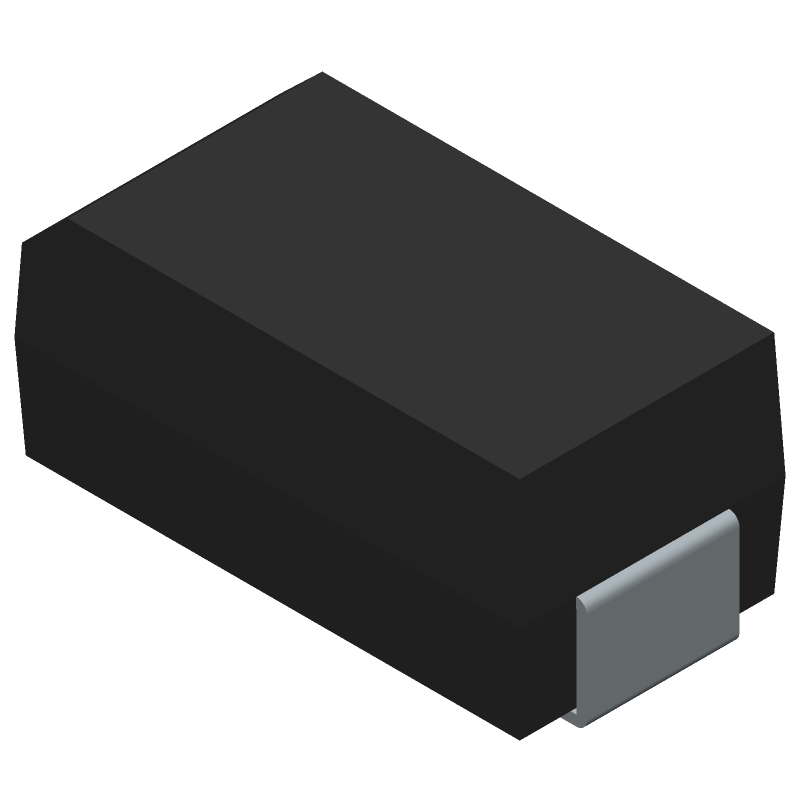

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMAJ45AE3/TR13 Part Data Attributes

Parametric Data
SMAJ45AE3/TR13 Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
SMAJ45AE3/TR13 Microchip Technology Inc Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
Factory Lead Time 20 Weeks
Samacsys Manufacturer Microchip
Breakdown Voltage-Max 55.3 V
Breakdown Voltage-Min 50 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 45 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL

Alternate Parts for SMAJ45AE3/TR13

This table gives cross-reference parts and alternative options found for SMAJ45AE3/TR13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ45AE3/TR13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P4SMAJ45A Diotec Semiconductor AG $0.0495 Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs P4SMAJ45A
SMAJ43AF2 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43AF2
SMAJ45AE3/TR13 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AE3/TR13
SMAJ45AF4 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AF4
SMAJ45AE2 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AE2
SMAJ43AE3/TR13 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43AE3/TR13
SMAJ45AF4G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AF4G
SMAJ45AF2 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AF2
SMAJ43AR3G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43AR3G
P4SMAJ45A-T3 Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs P4SMAJ45A-T3
Part Number Manufacturer Composite Price Description Compare
SMAJ40F4 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 40V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ40F4
SMAJ40F3G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 40V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ40F3G
P4SMAJ40 Diotec Semiconductor AG Check for Price Trans Voltage Suppressor Diode, 400W, 40V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs P4SMAJ40
P4SMAJ43-T3-LF Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs P4SMAJ43-T3-LF
SMAJ43R3 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43R3
SMAJ45AR3 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ45AR3
SMAJ43E3 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43E3
SMAJ43F2G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ43F2G
SMAJ40R3G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 40V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs SMAJ40R3G
P4SMAJ43A-T3 Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 400W, 43V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ45AE3/TR13 vs P4SMAJ43A-T3
