Part Details for SMAJ36CA-Q by Bourns Inc
Results Overview of SMAJ36CA-Q by Bourns Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
SMAJ36CA-Q Information
SMAJ36CA-Q by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ36CA-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AC6946
|
Newark | Dio Tvs Vwm 36V 400W Bidir Sma Aec-Q/Tape & Reel - 7" Reel |Bourns SMAJ36CA-Q RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1120 | Buy Now |
|
DISTI #
118-SMAJ36CA-QCT-ND
|
DigiKey | TVS DIODE 36VWM 58.1VC DO214AC Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
18473 In Stock |
|
$0.0965 / $0.3300 | Buy Now |
|
DISTI #
SMAJ36CA-Q
|
Avnet Americas | - Tape and Reel (Alt: SMAJ36CA-Q) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0901 / $0.1031 | Buy Now |
|
DISTI #
652-SMAJ36CA-Q
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 36volts 400W 5% Bi-Dir. AEC-Q101 RoHS: Compliant | 55803 |
|
$0.1000 / $0.3200 | Buy Now |
|
DISTI #
A03:0893_08189385
|
Arrow Electronics | Diode TVS Single Bi-Dir 36V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 10000 Package Multiple: 5000 Lead time: 16 Weeks Date Code: 2437 | Asia - 10000 |
|
$0.0987 | Buy Now |
|
DISTI #
V72:2272_21593469
|
Arrow Electronics | Diode TVS Single Bi-Dir 36V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2144 Container: Cut Strips | Americas - 9077 |
|
$0.0987 / $0.1728 | Buy Now |
|
|
Onlinecomponents.com | Dio Tvs Vwm 36V 400W Bidir Sma Aec-Q/Tape & Reel - 7" Reel |Bourns SMAJ36CA-Q RoHS: Compliant |
10000 In Stock |
|
$0.0972 / $0.1149 | Buy Now |
|
DISTI #
88135301
|
Verical | Diode TVS Single Bi-Dir 36V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 10000 Package Multiple: 5000 | Americas - 10000 |
|
$0.1089 | Buy Now |
|
DISTI #
66403884
|
Verical | Diode TVS Single Bi-Dir 36V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 2305 | Americas - 10000 |
|
$0.1283 / $0.1494 | Buy Now |
|
DISTI #
60302684
|
Verical | Diode TVS Single Bi-Dir 36V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 60 Package Multiple: 1 Date Code: 2144 | Americas - 9077 |
|
$0.0987 / $0.1217 | Buy Now |
Part Details for SMAJ36CA-Q

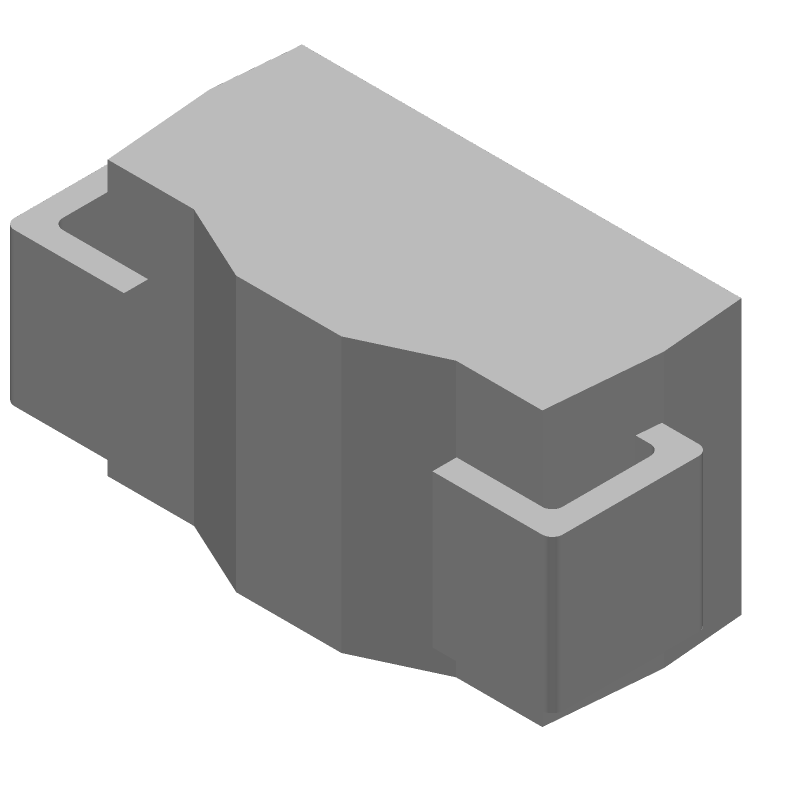

SMAJ36CA-Q CAD Models
SMAJ36CA-Q Part Data Attributes
|
|
SMAJ36CA-Q
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMAJ36CA-Q
Bourns Inc
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMA, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 44.2 V | |
| Breakdown Voltage-Min | 40 V | |
| Breakdown Voltage-Nom | 42.1 V | |
| Clamping Voltage-Max | 58.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 36 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
