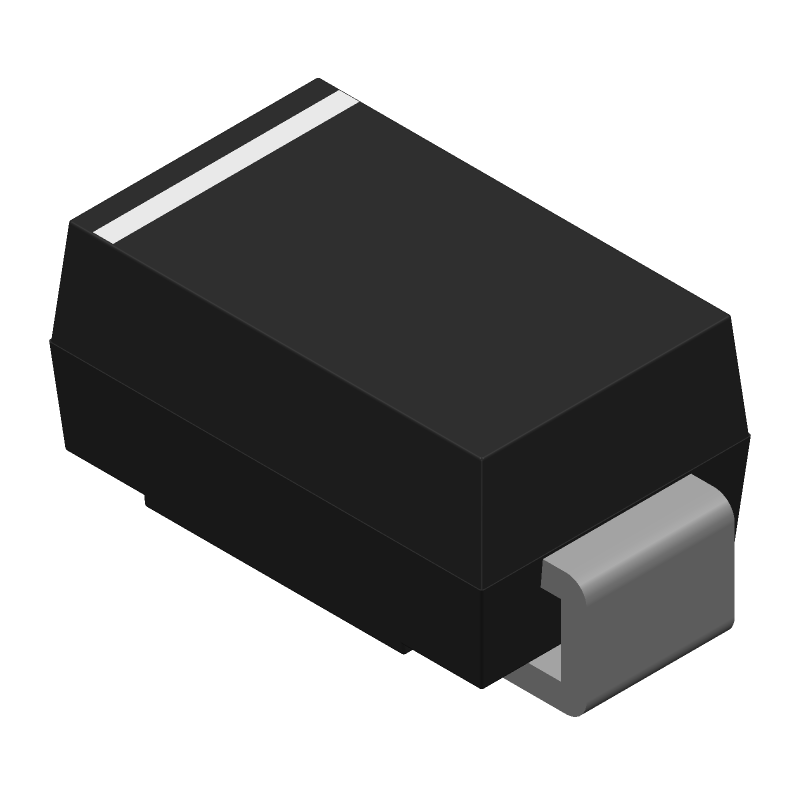

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ36CA/TR13 by YAGEO Corporation
Results Overview of SMAJ36CA/TR13 by YAGEO Corporation
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ36CA/TR13 Information
SMAJ36CA/TR13 by YAGEO Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ36CA/TR13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK9677
|
Newark | Tvs Diode, 400W, Bidir, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:36V, Clamping Voltage Max:58.1V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:40V Rohs Compliant: Yes |Yageo SMAJ36CA/TR13 RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0300 / $0.0370 | Buy Now |
|
DISTI #
60AK9676
|
Newark | Tvs Diode, 400W, Bidir, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:36V, Clamping Voltage Max:58.1V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:40V Rohs Compliant: Yes |Yageo SMAJ36CA/TR13 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.0610 / $0.2600 | Buy Now |
|
DISTI #
13-SMAJ36CA/TR13CT-ND
|
DigiKey | TVS DIODE 36VWM 58.1VC DO214AC Min Qty: 1 Lead time: 31 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6425 In Stock |
|
$0.0438 / $0.2400 | Buy Now |
|
DISTI #
SMAJ36CA/TR13
|
Avnet Americas | - Tape and Reel (Alt: SMAJ36CA/TR13) RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0326 / $0.0350 | Buy Now |
|
DISTI #
603-SMAJ36CA/TR13
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SMAJ - CA 36V RoHS: Compliant | 15170 |
|
$0.0340 / $0.2400 | Buy Now |
|
DISTI #
V36:1790_23547648
|
Arrow Electronics | Diode TVS Single Bi-Dir 36V 400W 2-Pin SMA T/R Min Qty: 5 Package Multiple: 5 Lead time: 17 Weeks Date Code: 2426 | Americas - 5 |
|
$0.0437 / $0.1527 | Buy Now |
|
DISTI #
SMAJ36CA/TR13
|
TTI | ESD Protection Diodes / TVS Diodes SMAJ - CA 36V RoHS: Compliant pbFree: Pb-Free Min Qty: 20000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.0310 / $0.0330 | Buy Now |
|
DISTI #
DTRL13437
|
Rutronik | TVS-DIODE BI 0,4KW 36V SMA RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Stock DE - 5000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0469 / $0.0557 | Buy Now |
|
DISTI #
SMAJ36CA/TR13
|
Avnet Abacus | (Alt: SMAJ36CA/TR13) RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | TVS DIODE 36VWM 58.1VC DO214AC | 5000 |
|
RFQ |
Part Details for SMAJ36CA/TR13
SMAJ36CA/TR13 CAD Models
SMAJ36CA/TR13 Part Data Attributes
|
|
SMAJ36CA/TR13
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
SMAJ36CA/TR13
YAGEO Corporation
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Package Description | SMA, 2 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2019-04-29 | |
| Samacsys Manufacturer | YAGEO | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-MIN | |
| Breakdown Voltage-Max | 44.2 V | |
| Breakdown Voltage-Min | 40 V | |
| Breakdown Voltage-Nom | 42.1 V | |
| Clamping Voltage-Max | 58.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 3.3 W | |
| Reference Standard | IEC-61000-4-2; UL CERTIFIED | |
| Rep Pk Reverse Voltage-Max | 36 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 36 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
SMAJ36CA/TR13 Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMAJ36CA/TR13 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm. This can be found in the YAGEO Corporation's recommended land pattern document.
-
While SMAJ36CA/TR13 has a rated operating temperature range of -55°C to 150°C, it's not recommended to use it in extreme high-temperature environments (>125°C) for extended periods. This may affect the component's reliability and lifespan.
-
To handle the ESD sensitivity of SMAJ36CA/TR13, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Additionally, ensure that the component is stored in a dry, non-conductive environment.
-
The recommended soldering profile for SMAJ36CA/TR13 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's also recommended to use a solder with a melting point of 217°C to 221°C.
-
While SMAJ36CA/TR13 has a moisture sensitivity level (MSL) of 1, it's still recommended to follow proper humidity control measures to prevent moisture absorption. This includes storing the component in a dry, non-conductive environment and using a desiccant package.
