Diodes / Transient Suppressors / SMAJ28CAHE3_A/I
Datasheets
SMAJ28CAHE3_A/I by:

Trans Voltage Suppressor Diode,

Part Details for SMAJ28CAHE3_A/I by Vishay Intertechnologies

Results Overview of SMAJ28CAHE3_A/I by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMAJ28CAHE3_A/I Information

SMAJ28CAHE3_A/I by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMAJ28CAHE3_A/I

Part # Distributor Description Stock Price Buy
DISTI # 44AJ1081
Newark 400W,28V 5%,bidir, sma Tvs |Vishay SMAJ28CAHE3_A/I RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.1280
$0.1280 Buy Now
DISTI # SMAJ28CAHE3_A/I
Avnet Americas 400W,28V 5%,BIDIR,SMA TVS - Tape and Reel (Alt: SMAJ28CAHE3_A/I) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 7,500 $0.1019
  • 15,000 $0.1000
  • 30,000 $0.0989
  • 45,000 $0.0984
  • 60,000 $0.0979
$0.0979 / $0.1019 Buy Now
DISTI # 78-SMAJ28CAHE3_A/I
Mouser Electronics ESD Protection Diodes / TVS Diodes 400W 28V 5% SMA (DO-214AC) 15000
  • 1 $0.6100
  • 10 $0.3750
  • 100 $0.2400
  • 500 $0.1820
  • 1,000 $0.1470
  • 2,500 $0.1420
  • 5,000 $0.1230
  • 7,500 $0.1080
  • 22,500 $0.1020
$0.1020 / $0.6100 Buy Now
DISTI # E02:0323_13638989
Arrow Electronics Diode TVS Single Bi-Dir 28V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Lead time: 7 Weeks Date Code: 2503 Europe - 30000
  • 7,500 $0.6001
  • 15,000 $0.3601
  • 30,000 $0.2160
  • 60,000 $0.1123
$0.1123 / $0.6001 Buy Now
DISTI # 87557100
Verical Diode TVS Single Bi-Dir 28V 400W Automotive AEC-Q101 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Date Code: 2503 Americas - 30000
  • 7,500 $0.6034
  • 15,000 $0.3621
  • 30,000 $0.2172
  • 60,000 $0.1129
$0.1129 / $0.6034 Buy Now
DISTI # SMAJ28CAHE3_A/I
EBV Elektronik 400W28V 5BIDIRSMA TVS (Alt: SMAJ28CAHE3_A/I) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation 400W,28V 5%,BIDIR,SMA TVS RoHS: Compliant Min Qty: 1 Package Multiple: 7500 7500
  • 7,500 $0.1200
$0.1200 Buy Now

Part Details for SMAJ28CAHE3_A/I

SMAJ28CAHE3_A/I CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

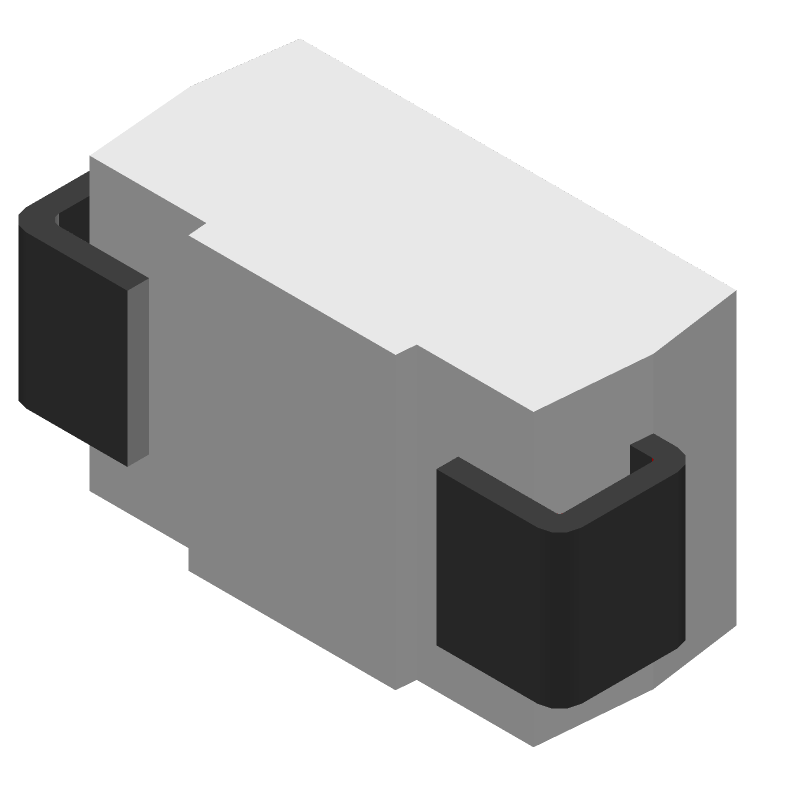

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMAJ28CAHE3_A/I Part Data Attributes

Parametric Data
SMAJ28CAHE3_A/I Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SMAJ28CAHE3_A/I Vishay Intertechnologies Trans Voltage Suppressor Diode,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description SMA, 2 PIN
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 7 Weeks
Date Of Intro 2019-02-06
Samacsys Manufacturer Vishay
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 34.4 V
Breakdown Voltage-Min 31.1 V
Breakdown Voltage-Nom 32.75 V
Clamping Voltage-Max 45.4 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 3.3 W
Reference Standard AEC-Q101; UL RECOGNIZED
Rep Pk Reverse Voltage-Max 28 V
Reverse Current-Max 1 µA
Reverse Test Voltage 28 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SMAJ28CAHE3_A/I

This table gives cross-reference parts and alternative options found for SMAJ28CAHE3_A/I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ28CAHE3_A/I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMAJ28CA Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CA
SMAJ28CA-7 Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CA-7
SMAJ28C Lite-On Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28C
P4SMAJ28CA Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ28CAHE3_A/I vs P4SMAJ28CA
SMAJ28C World Products Inc Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMAJ28CAHE3_A/I vs SMAJ28C
SMAJ28CA-13 Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CA-13
SMAJ28CA MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CA
P4SMAJ28C World Products Inc Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 SMAJ28CAHE3_A/I vs P4SMAJ28C
SMAJ28C Concord Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 28V V(RWM), Bidirectional, SMAJ28CAHE3_A/I vs SMAJ28C
Part Number Manufacturer Composite Price Description Compare
P4SMAJ28C SEMIKRON Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs P4SMAJ28C
SMAJ28CA Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CA
SMAJ28C-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28C-GT3
P4SMAJ28C Surge Components Inc Check for Price Trans Voltage Suppressor Diode, Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs P4SMAJ28C
P4SMAJ28CA World Products Inc Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 SMAJ28CAHE3_A/I vs P4SMAJ28CA
SMAJ28C-TP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28C-TP
SMAJ28C Telefunken Microelectronics Gmbh Check for Price Transient Suppressor, SMAJ28CAHE3_A/I vs SMAJ28C
SMAJ28CAHE3/61 Vishay Semiconductors Check for Price DIODE 300 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN, Transient Suppressor SMAJ28CAHE3_A/I vs SMAJ28CAHE3/61
SMAJ28C Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28C
SMAJ28CAHE3/61 Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SMAJ28CAHE3_A/I vs SMAJ28CAHE3/61
