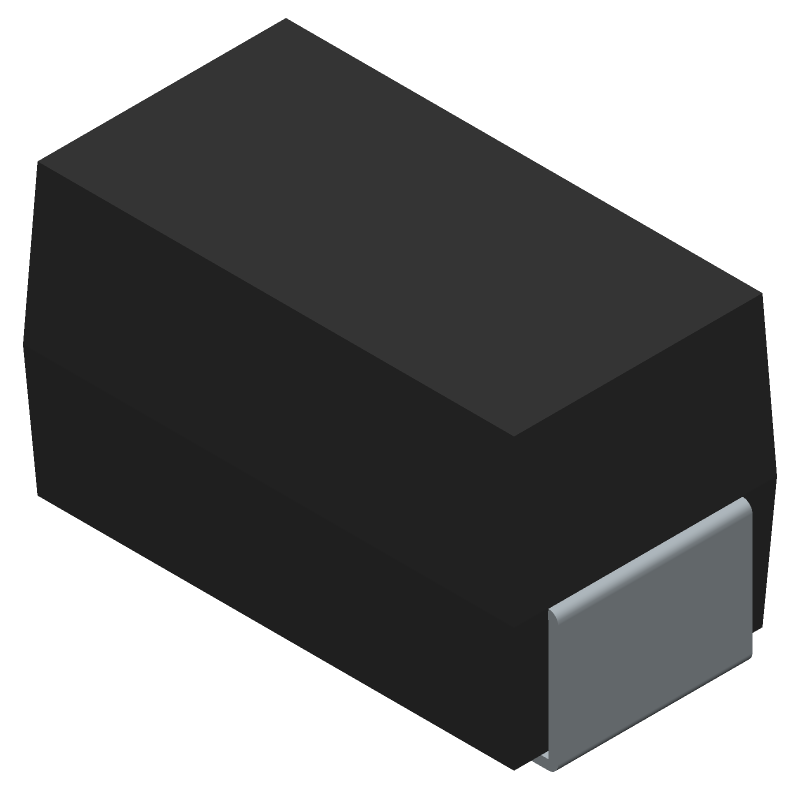

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ13CAE3/TR13 by Microchip Technology Inc
Results Overview of SMAJ13CAE3/TR13 by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ13CAE3/TR13 Information
SMAJ13CAE3/TR13 by Microchip Technology Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CLC001AJE-TR13 | Texas Instruments | Serial Digital Cable Driver with Adjustable Outputs 8-SOIC -40 to 85 | |
| CLC001AJE-TR13/NOPB | Texas Instruments | Serial Digital Cable Driver with Adjustable Outputs 8-SOIC -40 to 85 |
Price & Stock for SMAJ13CAE3/TR13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AJ8870
|
Newark | Tvs 400W, Stand-Off Voltage = 13V, +/- 5%, Bi-Dir Smaj (Do-214Ac) Rohs Compliant: Yes |Microchip SMAJ13CAE3/TR13 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1600 | Buy Now |
|
DISTI #
150-SMAJ13CAE3/TR13CT-ND
|
DigiKey | TVS DIODE 13VWM 21.5VC DO214AC Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1600 / $0.1800 | Buy Now |
|
DISTI #
SMAJ13CAE3/TR13
|
Avnet Americas | Diode TVS Single Bi-Dir 13V 500W 2-Pin DO-214AC T/R - Tape and Reel (Alt: SMAJ13CAE3/TR13) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.1397 / $0.1426 | Buy Now |
|
DISTI #
494-SMAJ13CAE3/TR13
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes TVS 400W, Stand-off voltage = 13V, +/- 5%, Bi-dir RoHS: Compliant | 4421 |
|
$0.1600 / $0.1800 | Buy Now |
|
DISTI #
SMAJ13CAE3/TR13
|
Microchip Technology Inc | Bi-Directional TVS _ SMAJ (DO-214AC), Projected EOL: 2049-02-02 COO: China ECCN: EAR99 Lead time: 20 Weeks, 0 Days |
0 Alternates Available |
|
$0.1500 / $0.1800 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1437 / $0.1791 | Buy Now |
|
|
NAC | TVS RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$0.1500 / $0.1800 | Buy Now |
|
DISTI #
SMAJ13CAE3/TR13
|
Avnet Silica | Diode TVS Single BiDir 13V 500W 2Pin DO214AC TR (Alt: SMAJ13CAE3/TR13) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SMAJ13CAE3/TR13
|
EBV Elektronik | Diode TVS Single BiDir 13V 500W 2Pin DO214AC TR (Alt: SMAJ13CAE3/TR13) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 21 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.1437 / $0.1791 | Buy Now |
Part Details for SMAJ13CAE3/TR13
SMAJ13CAE3/TR13 CAD Models
SMAJ13CAE3/TR13 Part Data Attributes
|
|
SMAJ13CAE3/TR13
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SMAJ13CAE3/TR13
Microchip Technology Inc
Trans Voltage Suppressor Diode, 400W, 13V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Description | TVS Diode Single Bi-Dir 13V 500W 2-Pin SMA T/R | |
| Samacsys Manufacturer | Microchip | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Category CO2 Kg | 8.54 | |
| Compliance Temperature Grade | Military: -55C to +150C | |
| EU RoHS Version | RoHS 2 (2011/65/EU) | |
| Candidate List Date | 2018-01-15 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V5.10 | |
| Breakdown Voltage-Max | 15.9 V | |
| Breakdown Voltage-Min | 14.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 13 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for SMAJ13CAE3/TR13
This table gives cross-reference parts and alternative options found for SMAJ13CAE3/TR13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ13CAE3/TR13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMAJ13CA | Taiwan Semiconductor | $0.2428 | Trans Voltage Suppressor Diode, 400W, 13V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN | SMAJ13CAE3/TR13 vs SMAJ13CA |
| SMAJ13CAHE3_A/H | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | SMAJ13CAE3/TR13 vs SMAJ13CAHE3_A/H |
| SMAJ13CAHE3_A/I | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | SMAJ13CAE3/TR13 vs SMAJ13CAHE3_A/I |
SMAJ13CAE3/TR13 Frequently Asked Questions (FAQ)
-
The recommended footprint for SMAJ13CAE3/TR13 is a DO-214AC (SMA) package with a pad layout of 2.5mm x 1.5mm.
-
Yes, SMAJ13CAE3/TR13 is a high-reliability device that meets the requirements of AEC-Q101, making it suitable for automotive and other high-reliability applications.
-
SMAJ13CAE3/TR13 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device to prevent damage.
-
The maximum operating temperature range for SMAJ13CAE3/TR13 is -55°C to +150°C.
-
Yes, SMAJ13CAE3/TR13 is a 13V TVS (Transient Voltage Suppressor) diode, making it suitable for high-voltage applications up to 13V.
