SMAJ13A Information
SMAJ13A by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ13A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8450
|
Newark | Tvs Diode, 400W, 13V, Unidir, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:13V, Clamping Voltage Vc Max:23.8V, Diode Case Style:Do-214Ac, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Bourns SMAJ13A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8491 |
|
$0.1500 / $0.3300 | Buy Now |
|
DISTI #
67R0050
|
Newark | Diode, Full Reel, Product Range:Smaj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:13V, Clamping Voltage Max:21.5V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:14.4V, Qualification:- Rohs Compliant: Yes |Bourns SMAJ13A RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0750 / $0.1010 | Buy Now |
|
DISTI #
SMAJ13ABCT-ND
|
DigiKey | TVS DIODE 13VWM 21.5VC DO214AC Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
49019 In Stock |
|
$0.0725 / $0.3400 | Buy Now |
|
DISTI #
SMAJ13A
|
Avnet Americas | TVS Diode, SMAJ, Unidirectional, 13 V, 21.5 V, DO-214AC (SMA), 2 Pins - Tape and Reel (Alt: SMAJ13A) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel | 5000 |
|
$0.0495 / $0.0776 | Buy Now |
|
DISTI #
SMAJ13A
|
Avnet Americas | TVS Diode, SMAJ, Unidirectional, 13 V, 21.5 V, DO-214AC (SMA), 2 Pins - Tape and Reel (Alt: SMAJ13A) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0407 / $0.0832 | Buy Now |
|
DISTI #
652-SMAJ13A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 13volts 5uA 18.6 Amps Uni-Dir RoHS: Compliant | 5926 |
|
$0.0720 / $0.3400 | Buy Now |
|
DISTI #
71279515
|
RS | A 13V, 400W, uni-directional, SMA pkg TVS Diode Min Qty: 10000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1060 / $0.1180 | RFQ |
|
|
Onlinecomponents.com | Diode TVS Single Uni-Dir 13V 400W 2-Pin SMA T/R RoHS: Compliant |
15000 In Stock |
|
$0.0706 / $0.0837 | Buy Now |
|
DISTI #
66200385
|
Verical | Diode TVS Single Uni-Dir 13V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 2251 | Americas - 15000 |
|
$0.0945 / $0.1088 | Buy Now |
|
|
Bristol Electronics | 5000 |
|
RFQ |
Part Details for SMAJ13A

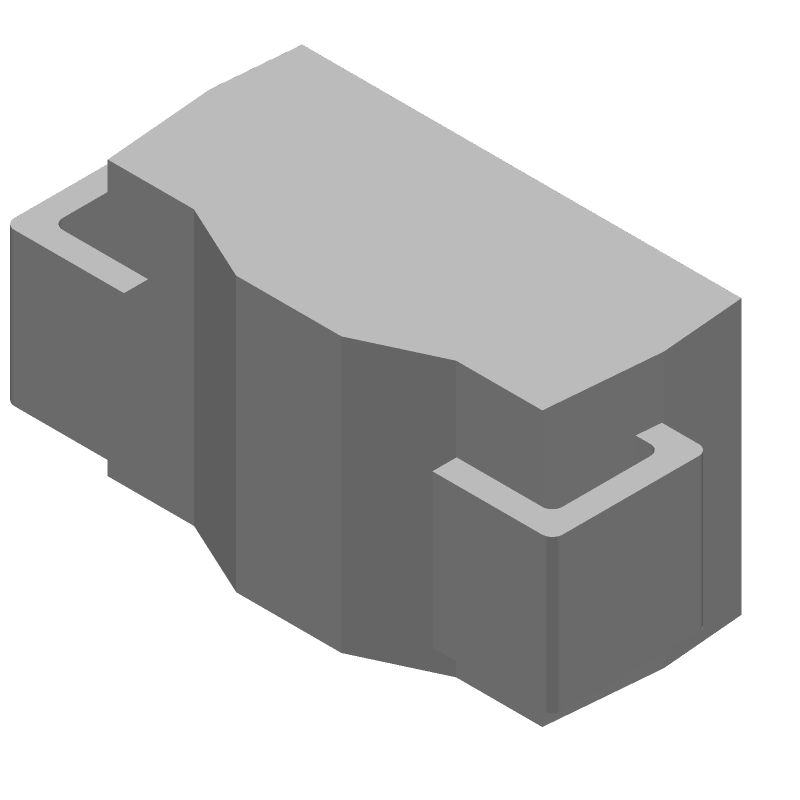

SMAJ13A CAD Models
SMAJ13A Part Data Attributes
|
|
SMAJ13A
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMAJ13A
Bourns Inc
Trans Voltage Suppressor Diode, 400W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Part Package Code | DO-214AC | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Breakdown Voltage-Max | 15.9 V | |
| Breakdown Voltage-Min | 14.4 V | |
| Breakdown Voltage-Nom | 15.15 V | |
| Clamping Voltage-Max | 21.5 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 13 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
