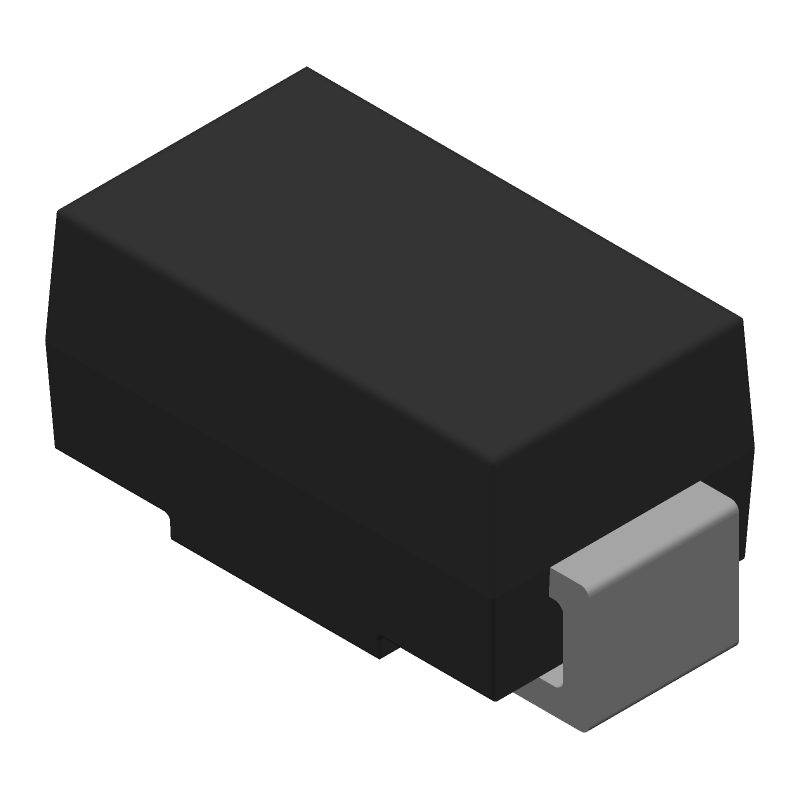

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ130CA-TR by STMicroelectronics
Results Overview of SMAJ130CA-TR by STMicroelectronics
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ130CA-TR Information
SMAJ130CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ130CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33R1019
|
Newark | Transil 400W 130V Bi-Directional Sma, Product Range:Transil Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:130V, Clamping Voltage Max:265V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Stmicroelectronics SMAJ130CA-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2 |
|
$0.1130 / $0.1230 | Buy Now |
|
DISTI #
497-15655-1-ND
|
DigiKey | TVS DIODE 130VWM 265VC DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1215 / $0.7000 | Buy Now |
|
DISTI #
33R1019
|
Avnet Americas | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R - Product that comes on tape, but is not reeled (Alt: 33R1019) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Ammo Pack | 2 Partner Stock |
|
$0.2460 / $0.4000 | Buy Now |
|
DISTI #
SMAJ130CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R - Tape and Reel (Alt: SMAJ130CA-TR) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.0889 / $0.0907 | Buy Now |
|
DISTI #
511-SMAJ130CA-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 400W 130V Bidirect RoHS: Compliant | 0 |
|
$0.1210 / $0.4100 | Order Now |
|
DISTI #
E02:0323_00209064
|
Arrow Electronics | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks | Europe - 20000 |
|
$0.1174 | Buy Now |
|
DISTI #
V72:2272_06556584
|
Arrow Electronics | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2315 Container: Cut Strips | Americas - 1529 |
|
$0.1039 / $0.4100 | Buy Now |
|
|
STMicroelectronics | 400 W, 130 V TVS in SMA RoHS: Compliant Min Qty: 1 | 0 |
|
$0.2000 / $0.4000 | Buy Now |
|
DISTI #
9754931
|
Verical | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 | Americas - 20000 |
|
$0.1379 | Buy Now |
|
DISTI #
67588672
|
Verical | Diode TVS Single Bi-Dir 130V 400W 2-Pin SMA T/R Min Qty: 70 Package Multiple: 1 Date Code: 2315 | Americas - 1529 |
|
$0.1039 / $0.3524 | Buy Now |
Part Details for SMAJ130CA-TR
SMAJ130CA-TR CAD Models
SMAJ130CA-TR Part Data Attributes
|
|
SMAJ130CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMAJ130CA-TR
STMicroelectronics
400 W TVS in SMA
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | MOS COMPATIBLE | |
| Breakdown Voltage-Min | 144 V | |
| Clamping Voltage-Max | 265 V | |
| Configuration | SINGLE | |
| Diode Capacitance-Min | 72.5 pF | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 3.3 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 130 V | |
| Reverse Current-Max | 1 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
