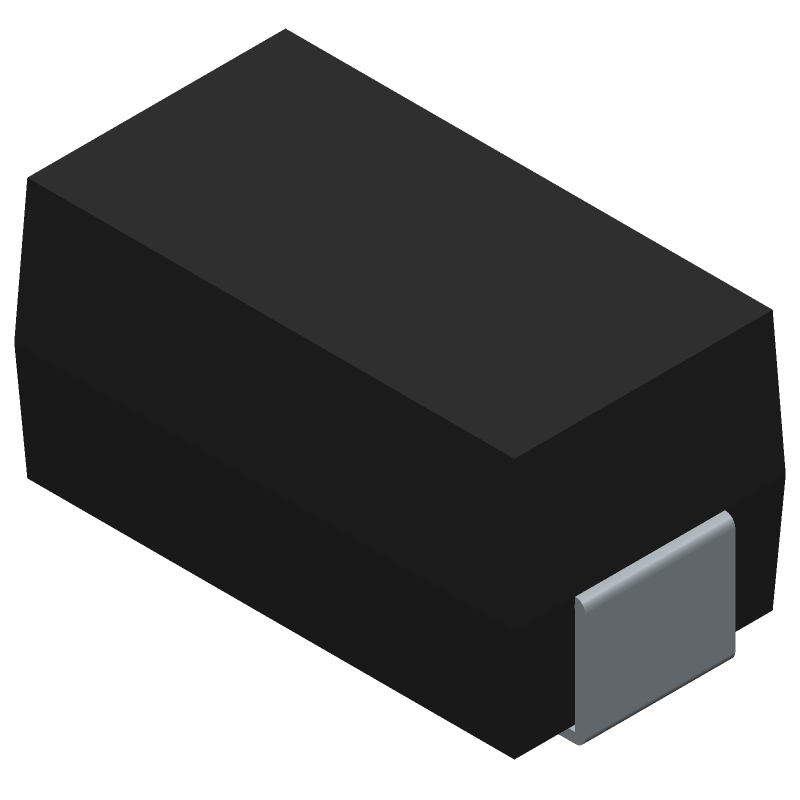

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMAJ12CA by SPC Multicomp
Results Overview of SMAJ12CA by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMAJ12CA Information
SMAJ12CA by SPC Multicomp is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ12CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05AC0098
|
Newark | Tvs Diode, 400W, 12V, Bidir, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:12V, Clamping Voltage Max:19.9V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Diode Mounting:Surface Mount Rohs Compliant: Yes |Multicomp Pro SMAJ12CA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 31 |
|
$0.0650 / $0.0780 | Buy Now |
Part Details for SMAJ12CA
SMAJ12CA CAD Models
SMAJ12CA Part Data Attributes
|
|
SMAJ12CA
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
SMAJ12CA
SPC Multicomp
Trans Voltage Suppressor Diode, 400W, 12V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Part Package Code | DO-214AC | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-MIN | |
| Breakdown Voltage-Max | 14.7 V | |
| Breakdown Voltage-Min | 13.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Rep Pk Reverse Voltage-Max | 12 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for SMAJ12CA
This table gives cross-reference parts and alternative options found for SMAJ12CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAJ12CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMAJ12CA | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Trans Voltage Suppressor Diode, 12V V(RWM), Bidirectional | SMAJ12CA vs SMAJ12CA |
| P4SMAJ12CA | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 400W, 12V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | SMAJ12CA vs P4SMAJ12CA |
| P4SMAJ12CA | Diotec Semiconductor AG | $0.0510 | Trans Voltage Suppressor Diode, 400W, 12V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | SMAJ12CA vs P4SMAJ12CA |
| P4SMAJ12C | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 400W, 12V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | SMAJ12CA vs P4SMAJ12C |
| P4SMAJ12CA_R2_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode | SMAJ12CA vs P4SMAJ12CA_R2_10001 |
| P4SMAJ12CA_R1_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 400W, 12V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN | SMAJ12CA vs P4SMAJ12CA_R1_10001 |
SMAJ12CA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for SMAJ12CA is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, SMAJ12CA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The maximum operating temperature range for SMAJ12CA is -40°C to 150°C, making it suitable for a wide range of applications.
-
Yes, SMAJ12CA is designed for high-reliability applications, including aerospace, automotive, and industrial control systems, due to its high surge current capability and low clamping voltage.
-
Yes, SMAJ12CA is suitable for use in high-frequency circuits up to 1 GHz due to its low capacitance and inductance.
