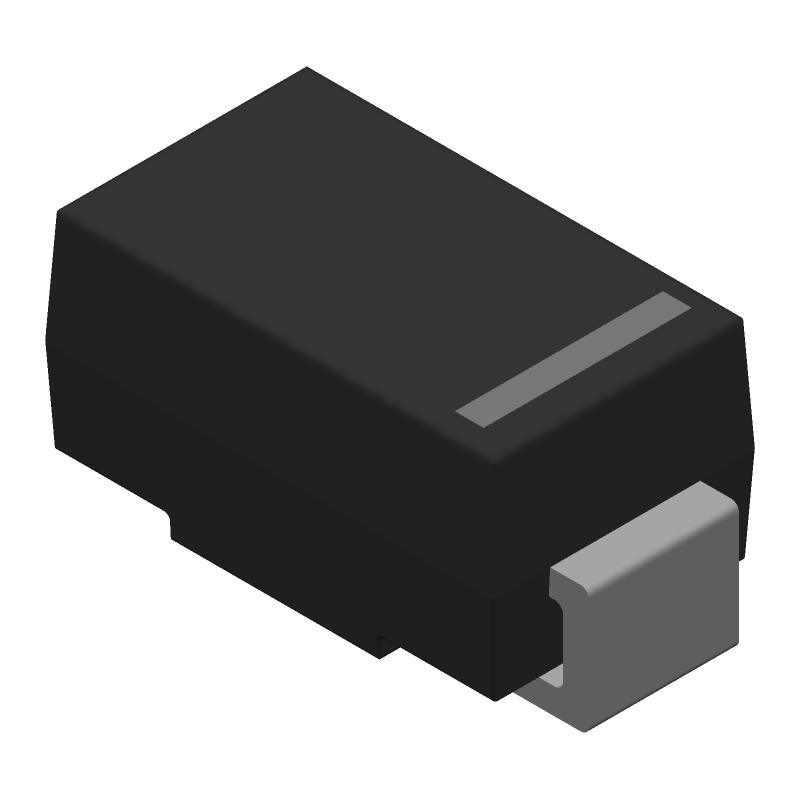

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMA6J85A-TR by STMicroelectronics
Results Overview of SMA6J85A-TR by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
Automotive
SMA6J85A-TR Information
SMA6J85A-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMA6J85A-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57P0251
|
Newark | Protection |Stmicroelectronics SMA6J85A-TR RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
497-7445-1-ND
|
DigiKey | TVS DIODE 85VWM 146VC DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4451 In Stock |
|
$0.1905 / $0.3800 | Buy Now |
|
DISTI #
SMA6J85A-TR
|
Avnet Americas | Diode TVS Single Uni-Dir 85V 600W 2-Pin DO-214AA T/R - Tape and Reel (Alt: SMA6J85A-TR) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1701 / $0.1869 | Buy Now |
|
DISTI #
511-SMA6J85A-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes High Temp Transil RoHS: Compliant | 2203 |
|
$0.1900 / $0.3800 | Buy Now |
|
DISTI #
V72:2272_17709320
|
Arrow Electronics | Diode TVS Single Uni-Dir 85V 600W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Date Code: 1637 Container: Cut Strips | Americas - 5507 |
|
$0.1386 / $0.1406 | Buy Now |
|
|
STMicroelectronics | 600 W, 85 V TVS in SMA RoHS: Compliant Min Qty: 1 | 2203 |
|
$0.1900 / $0.3400 | Buy Now |
|
DISTI #
25819605
|
Verical | Diode TVS Single Uni-Dir 85V 600W 2-Pin SMA T/R Min Qty: 47 Package Multiple: 1 Date Code: 1637 | Americas - 5507 |
|
$0.1386 | Buy Now |
|
DISTI #
SMA6J85A-TR
|
EBV Elektronik | Diode TVS Single UniDir 85V 600W 2Pin DO214AA TR (Alt: SMA6J85A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 4625 |
|
RFQ |
Part Details for SMA6J85A-TR
SMA6J85A-TR CAD Models
SMA6J85A-TR Part Data Attributes
|
|
SMA6J85A-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMA6J85A-TR
STMicroelectronics
600 W TVS in SMA
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 104 V | |
| Breakdown Voltage-Min | 94 V | |
| Breakdown Voltage-Nom | 99 V | |
| Clamping Voltage-Max | 134 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 4 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 85 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SMA6J85A-TR
This table gives cross-reference parts and alternative options found for SMA6J85A-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMA6J85A-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P6SMB100AHM3/H | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | SMA6J85A-TR vs P6SMB100AHM3/H |
| SMBJ850A-E | Littelfuse Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 850V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMA6J85A-TR vs SMBJ850A-E |
| P6FMBJ100A | Rectron Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 85.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 | SMA6J85A-TR vs P6FMBJ100A |
| SMBJP6KE100-TP-HF | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, | SMA6J85A-TR vs SMBJP6KE100-TP-HF |
| SMBJP6KE100 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 81V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMA6J85A-TR vs SMBJP6KE100 |
| P6SMB100A | SEMIKRON | Check for Price | Trans Voltage Suppressor Diode, 600W, 85.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMA6J85A-TR vs P6SMB100A |
| P6SMB100AHE3/5B | Vishay Semiconductors | Check for Price | DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN, Transient Suppressor | SMA6J85A-TR vs P6SMB100AHE3/5B |
| P6FMBJ100-W | Rectron Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 81V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 | SMA6J85A-TR vs P6FMBJ100-W |
| P6FMBJ100A-W | Rectron Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 85.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 | SMA6J85A-TR vs P6FMBJ100A-W |
| P6SMBJ75-F | World Products Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 75V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC PACKAGE-2 | SMA6J85A-TR vs P6SMBJ75-F |
SMA6J85A-TR Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the SMA6J85A-TR is a standard SOT23 package with a 5-pin layout. The recommended land pattern is available in the STMicroelectronics documentation or can be obtained from the manufacturer's website.
-
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads and use a reflow oven or a hot air gun to solder the component. Avoid overheating the component or the PCB.
-
The SMA6J85A-TR has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
-
The SMA6J85A-TR is an ESD-sensitive device. To prevent damage, handle the component in an ESD-protected environment, wear an ESD strap or wrist strap, and use ESD-safe packaging and storage materials. Avoid touching the component's pins or exposing it to static electricity.
-
Store the SMA6J85A-TR in its original packaging or in a dry, cool place away from direct sunlight and moisture. Avoid exposing the component to temperatures above 30°C or humidity above 60%. Follow the manufacturer's storage guidelines to prevent damage or degradation.
