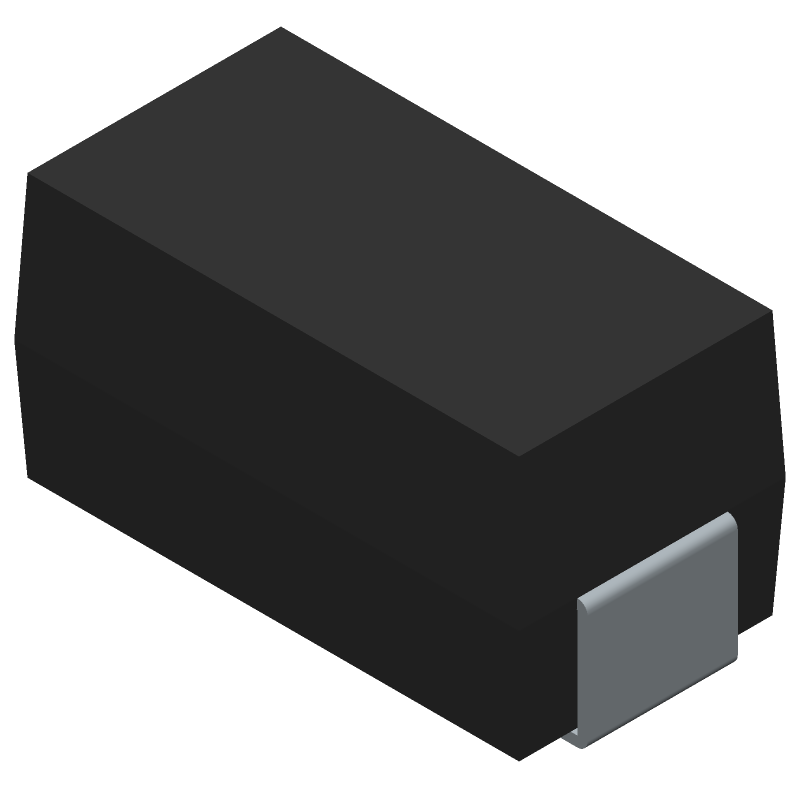

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMA6J58CA-TR by STMicroelectronics
Results Overview of SMA6J58CA-TR by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMA6J58CA-TR Information
SMA6J58CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMA6J58CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-5941-1-ND
|
DigiKey | TVS DIODE 58VWM 100VC DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3984 In Stock |
|
$0.1905 / $0.4400 | Buy Now |
|
DISTI #
SMA6J58CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R - Tape and Reel (Alt: SMA6J58CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1793 / $0.1970 | Buy Now |
|
DISTI #
511-SMA6J58CA-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes HJ Temp Transil RoHS: Compliant | 6000 |
|
$0.1900 / $0.4400 | Buy Now |
|
DISTI #
V72:2272_06556537
|
Arrow Electronics | Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2432 Container: Cut Strips | Americas - 5000 |
|
$0.1869 / $0.2742 | Buy Now |
|
|
STMicroelectronics | 600 W, 58 V TVS in SMA RoHS: Compliant Min Qty: 1 | 6000 |
|
$0.2300 / $0.4400 | Buy Now |
|
DISTI #
84352774
|
Verical | Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R Min Qty: 32 Package Multiple: 1 Date Code: 2432 | Americas - 5000 |
|
$0.1869 / $0.2453 | Buy Now |
|
DISTI #
SMA6J58CA-TR
|
Avnet Silica | Diode TVS Single BiDir 58V 600W 2Pin SMA TR (Alt: SMA6J58CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | Silica - 20000 |
|
Buy Now | |
|
DISTI #
SMA6J58CA-TR
|
EBV Elektronik | Diode TVS Single BiDir 58V 600W 2Pin SMA TR (Alt: SMA6J58CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 5757 |
|
RFQ |
Part Details for SMA6J58CA-TR
SMA6J58CA-TR CAD Models
SMA6J58CA-TR Part Data Attributes
|
|
SMA6J58CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMA6J58CA-TR
STMicroelectronics
600 W TVS in SMA
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 71.2 V | |
| Breakdown Voltage-Min | 64.4 V | |
| Breakdown Voltage-Nom | 67.8 V | |
| Clamping Voltage-Max | 91.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 4 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 58 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
