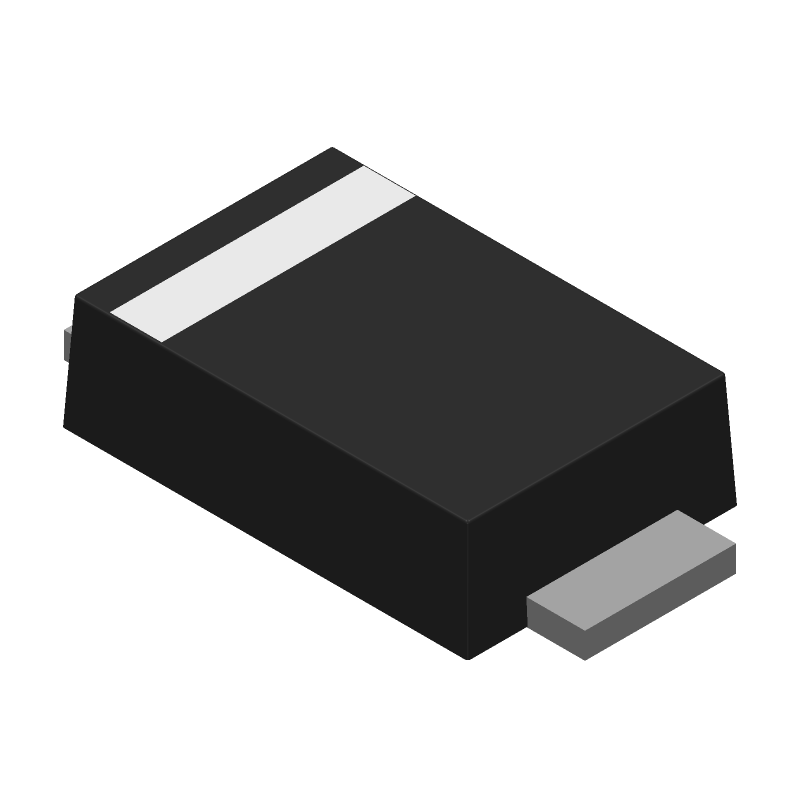

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMA6J30AFL-TP by Micro Commercial Components
Results Overview of SMA6J30AFL-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Robotics and Drones
SMA6J30AFL-TP Information
SMA6J30AFL-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMA6J30AFL-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-SMA6J30AFL-TPCT-ND
|
DigiKey | TVS DIODE 30VWM 48.4VC DO221AC Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10000 In Stock |
|
$0.0850 / $0.5400 | Buy Now |
|
DISTI #
833-SMA6J30AFL-TP
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W,TVS, DO-221AC RoHS: Compliant | 0 |
|
$0.0910 / $0.0950 | Order Now |
Part Details for SMA6J30AFL-TP
SMA6J30AFL-TP CAD Models
SMA6J30AFL-TP Part Data Attributes
|
|
SMA6J30AFL-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SMA6J30AFL-TP
Micro Commercial Components
Trans Voltage Suppressor Diode, 600W, 30V V(RWM),
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 36.8 V | |
| Breakdown Voltage-Min | 33.3 V | |
| Breakdown Voltage-Nom | 35.05 V | |
| Clamping Voltage-Max | 48.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-221AC | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
SMA6J30AFL-TP Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for SMA6J30AFL-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It is essential to follow the recommended footprint to ensure proper soldering and to prevent thermal and mechanical stress on the component.
-
To prevent damage, handle the SMA6J30AFL-TP by the body, avoid touching the leads or the glass diode, and use an anti-static wrist strap or mat. Also, ensure that the assembly area is clean and free from debris.
-
The maximum soldering temperature for SMA6J30AFL-TP is 260°C (500°F) for 10 seconds. Exceeding this temperature or time may damage the component or affect its reliability.
-
While SMA6J30AFL-TP is a general-purpose TVS diode, it may not be suitable for high-frequency applications due to its parasitic capacitance and inductance. For high-frequency applications, consider using a TVS diode specifically designed for high-frequency use.
-
To select the correct TVS diode, consider the following factors: working voltage, peak pulse current, clamping voltage, response time, and package type. Ensure that the TVS diode's characteristics meet or exceed the requirements of your application.
