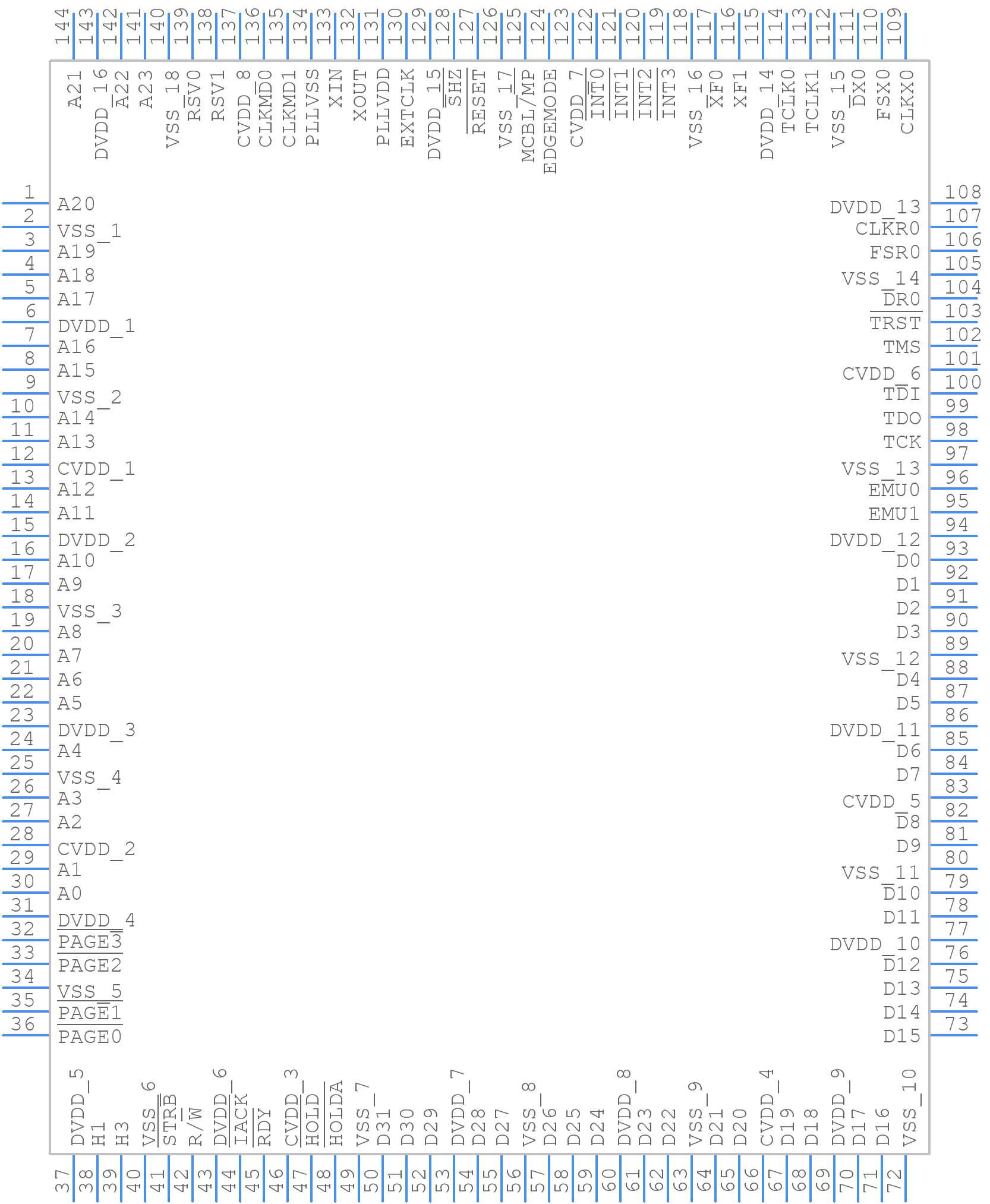

Part Symbol
-

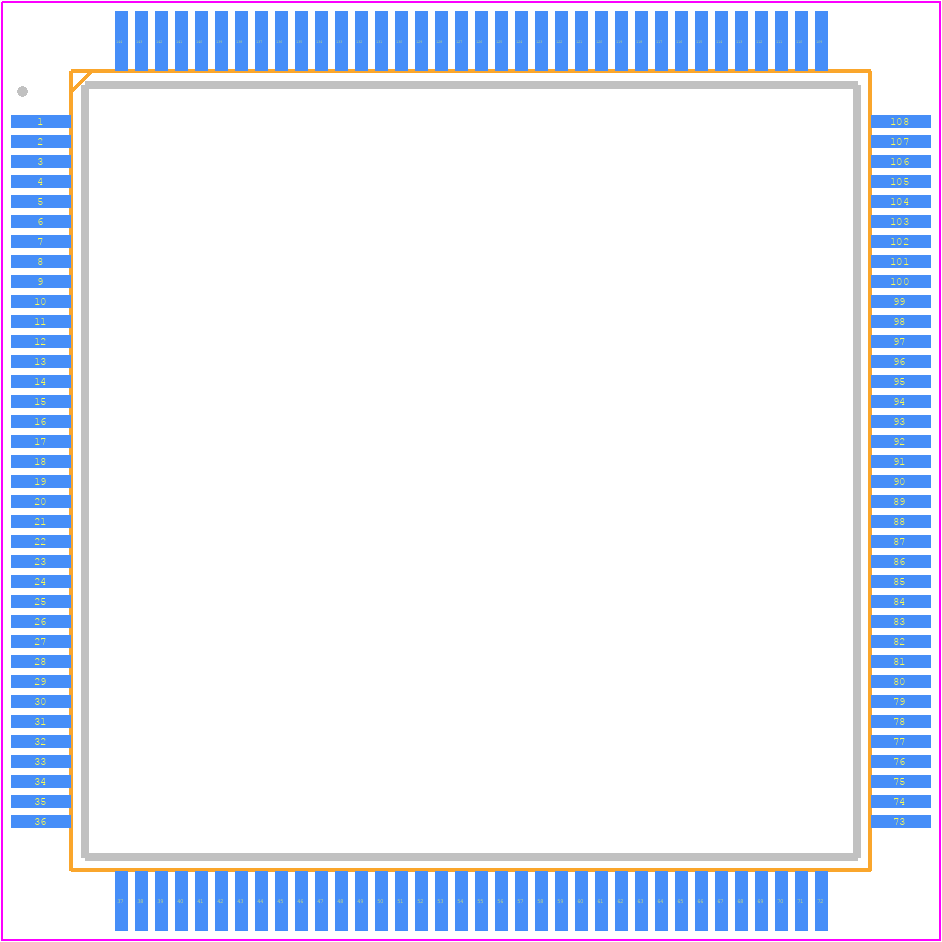

Footprint
-

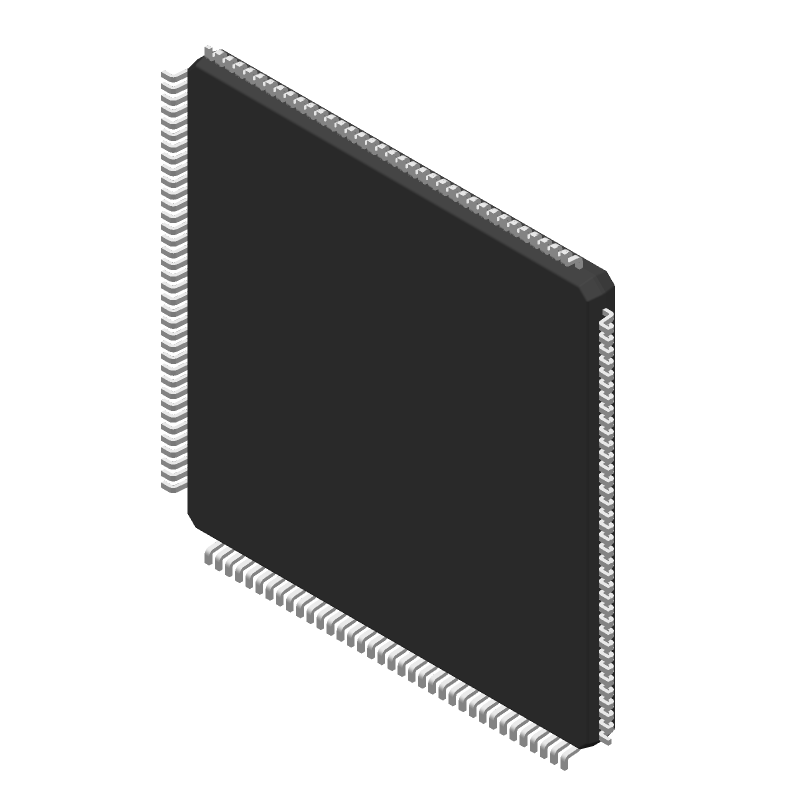

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SM320VC33PGEA120EP by Texas Instruments
Results Overview of SM320VC33PGEA120EP by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
SM320VC33PGEA120EP Information
SM320VC33PGEA120EP by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SM320VC33PGEA120EP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-22219-ND
|
DigiKey | IC DSP FLOATING-POINT 144-LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
340 In Stock |
|
$27.8629 / $40.3300 | Buy Now |
|
DISTI #
595-320VC33PGEA120EP
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC EP Dig Signal Proc RoHS: Compliant | 86 |
|
$28.7800 / $39.9500 | Buy Now |
|
|
Cytech Systems Limited | IC DSP FLOATING-POINT 144-LQFP | 120 |
|
RFQ |
Part Details for SM320VC33PGEA120EP
SM320VC33PGEA120EP CAD Models
SM320VC33PGEA120EP Part Data Attributes
|
|
SM320VC33PGEA120EP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SM320VC33PGEA120EP
Texas Instruments
Enhanced product C33 floating-point DSP 144-LQFP -40 to 100
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LQFP-144 | |
| Pin Count | 144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | 24 | |
| Barrel Shifter | YES | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 100 MHz | |
| External Data Bus Width | 32 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e4 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of DMA Channels | 1 | |
| Number of External Interrupts | 4 | |
| Number of Terminals | 144 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 32 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 34816 | |
| ROM (words) | 16777216 | |
| Seated Height-Max | 1.6 mm | |
| Supply Current-Max | 80 mA | |
| Supply Voltage-Max | 1.89 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
SM320VC33PGEA120EP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the SM320VC33PGEA120EP is -40°C to 85°C.
-
The clock settings for the SM320VC33PGEA120EP can be configured using the Clock Enable (CKEN) and Clock Source (CKS) registers. Refer to the device's user guide for detailed instructions.
-
The maximum clock frequency supported by the SM320VC33PGEA120EP is 120 MHz.
-
The SM320VC33PGEA120EP has a built-in Power Management Module (PMM) that allows for dynamic voltage and frequency scaling. Refer to the device's user guide for detailed instructions on how to implement power management.
-
The SM320VC33PGEA120EP has 128 KB of flash memory.
