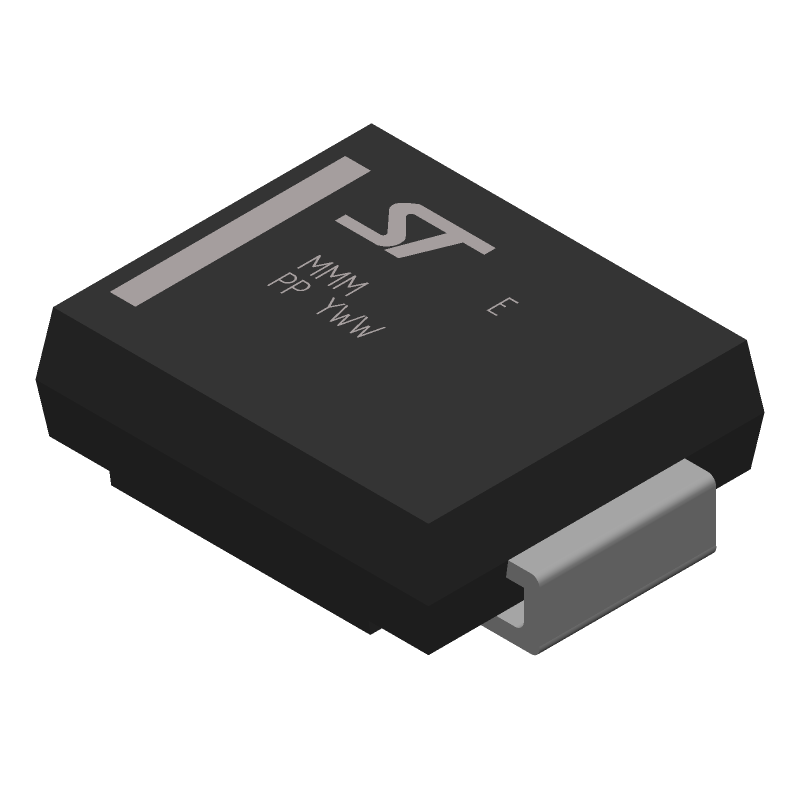

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SM30T33AY by STMicroelectronics
Results Overview of SM30T33AY by STMicroelectronics
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SM30T33AY Information
SM30T33AY by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SM30T33AY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W2827
|
Newark | Tvs Diode, Unidir, 28V, 3Kw, Do-214Ab, Product Range:Transil Sm30Ty Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:28V, Clamping Voltage Max:59V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins Rohs Compliant: Yes |Stmicroelectronics SM30T33AY RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 3187 |
|
$0.5070 / $0.6850 | Buy Now |
|
DISTI #
497-12187-1-ND
|
DigiKey | TVS DIODE 28VWM 45.4VC SMC Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3324 In Stock |
|
$0.5070 / $1.0300 | Buy Now |
|
DISTI #
97W2827
|
Avnet Americas | ESD Suppressor TVS 30KV 2-Pin SMC T/R - Bulk (Alt: 97W2827) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 1 Days Container: Bulk | 242 Partner Stock |
|
$0.5600 / $1.0300 | Buy Now |
|
DISTI #
SM30T33AY
|
Avnet Americas | ESD Suppressor TVS 30KV 2-Pin SMC T/R - Tape and Reel (Alt: SM30T33AY) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.5032 / $0.5481 | Buy Now |
|
DISTI #
511-SM30T33AY
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3000 W 28kW Transil 15V to 33V Uni RoHS: Compliant | 8967 |
|
$0.5070 / $1.0300 | Buy Now |
|
DISTI #
V36:1790_06556330
|
Arrow Electronics | Diode TVS Single Uni-Dir 28V 3KW Automotive AEC-Q101 2-Pin SMC T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Date Code: 2508 | Americas - 5000 |
|
$0.4907 / $0.5078 | Buy Now |
|
DISTI #
70521298
|
RS | SM30T33AY, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$1.1200 / $1.3300 | RFQ |
|
|
STMicroelectronics | Automotive 3000 W, 28 V TVS in SMC RoHS: Compliant Min Qty: 1 | 8967 |
|
$0.5900 / $1.0100 | Buy Now |
|
DISTI #
88081680
|
Verical | Diode TVS Single Uni-Dir 28V 3KW Automotive AEC-Q101 2-Pin SMC T/R Min Qty: 2500 Package Multiple: 2500 Date Code: 2508 | Americas - 5000 |
|
$0.4907 / $0.5078 | Buy Now |
|
DISTI #
60899935
|
Verical | Diode TVS Single Uni-Dir 28V 3KW Automotive AEC-Q101 2-Pin SMC T/R Min Qty: 73 Package Multiple: 1 | Americas - 242 |
|
$1.1186 / $1.1709 | Buy Now |
Part Details for SM30T33AY
SM30T33AY CAD Models
SM30T33AY Part Data Attributes
|
|
SM30T33AY
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SM30T33AY
STMicroelectronics
Automotive 3000 W, 28 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 34.3 V | |
| Breakdown Voltage-Min | 31.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 3000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
SM30T33AY Frequently Asked Questions (FAQ)
-
A good PCB layout for the SM30T33AY should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the package to facilitate heat dissipation.
-
To ensure reliable operation at high temperatures, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended thermal management guidelines in the datasheet.
-
To minimize EMI and RFI, use a shielded enclosure, keep sensitive circuits away from the SM30T33AY, and use filtering and shielding techniques as recommended in the datasheet.
-
Choose external components that meet the recommended specifications in the datasheet, considering factors such as voltage rating, current handling, and temperature range.
-
Monitor the SM30T33AY's junction temperature, input voltage, output current, and power dissipation to ensure reliable operation and prevent overheating or damage.
