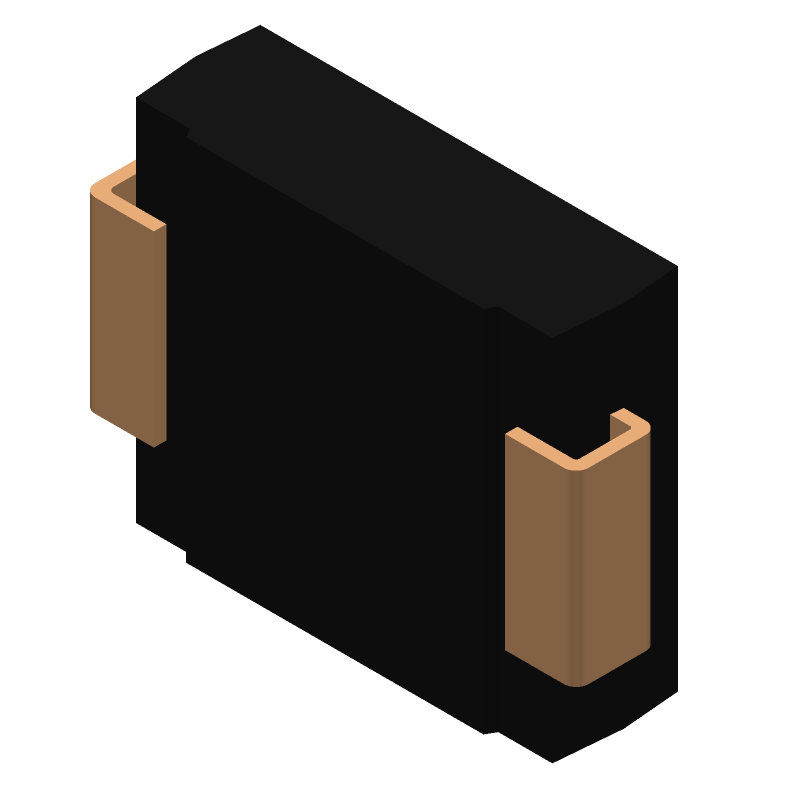

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SM15T68CA-E3/57T by Vishay Intertechnologies
Results Overview of SM15T68CA-E3/57T by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SM15T68CA-E3/57T Information
SM15T68CA-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SM15T68CA-E3/57T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
77K7506
|
Newark | Transient Suppressor Diode, single, bidirectional,58.1V V(Rwm),do-214Ab |Vishay SM15T68CA-E3/57T RoHS: Not Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2770 / $0.3600 | Buy Now |
|
DISTI #
SM15T68CA-E3/57T
|
Avnet Americas | 1.5KW,68V 5%,BIDIR,SMC TVS - Tape and Reel (Alt: SM15T68CA-E3/57T) RoHS: Compliant Min Qty: 1700 Package Multiple: 850 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.2060 / $0.2231 | Buy Now |
|
DISTI #
625-SM15T68CA-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 68V 5% Bi RoHS: Compliant | 2451 |
|
$0.2220 / $0.7300 | Buy Now |
|
DISTI #
E02:0323_00447690
|
Arrow Electronics | Diode TVS Single Bi-Dir 58.1V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 850 Lead time: 11 Weeks Date Code: 2503 | Europe - 13600 |
|
$0.5652 / $0.5877 | Buy Now |
|
DISTI #
SM15T68CA-E3/57T
|
TTI | ESD Protection Diodes / TVS Diodes 1500W 68V 5% Bi pbFree: Pb-Free Min Qty: 1700 Package Multiple: 850 Container: Reel | Americas - 0 |
|
$0.2980 / $0.3220 | Buy Now |
|
DISTI #
SM15T68CA-E3/57T
|
EBV Elektronik | 15KW68V 5BIDIRSMC TVS (Alt: SM15T68CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 12 Weeks, 0 Days | EBV - 850 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 850 | 850 |
|
$0.6183 | Buy Now |
|
|
Vyrian | Diodes | 5326 |
|
RFQ |
Part Details for SM15T68CA-E3/57T
SM15T68CA-E3/57T CAD Models
SM15T68CA-E3/57T Part Data Attributes
|
|
SM15T68CA-E3/57T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SM15T68CA-E3/57T
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 1500W, 58.1V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY | |
| Breakdown Voltage-Max | 71.4 V | |
| Breakdown Voltage-Min | 64.6 V | |
| Breakdown Voltage-Nom | 68 V | |
| Clamping Voltage-Max | 92 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 58.1 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SM15T68CA-E3/57T
This table gives cross-reference parts and alternative options found for SM15T68CA-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SM15T68CA-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SM15T68CAHE3/57T | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | SM15T68CA-E3/57T vs SM15T68CAHE3/57T |
| SM15T68CAHE3/9AT | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | SM15T68CA-E3/57T vs SM15T68CAHE3/9AT |
| SM15T68CA-E3/57T | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | SM15T68CA-E3/57T vs SM15T68CA-E3/57T |
| SM15T68CA-E3/9AT | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 58.1V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, | SM15T68CA-E3/57T vs SM15T68CA-E3/9AT |
SM15T68CA-E3/57T Frequently Asked Questions (FAQ)
-
Vishay recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
-
Handle the components by the body, avoiding touching the leads or glass. Store them in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions to prevent damage.
-
The maximum allowable voltage derating for the SM15T68CA-E3/57T is 10% of the rated voltage, which is 680V. Therefore, the maximum allowable voltage derating is 68V.
-
While the SM15T68CA-E3/57T is suitable for high-voltage applications, its frequency response is limited. For high-frequency applications above 1 MHz, consider using a different component or consulting with a Vishay application engineer.
-
To ensure reliability in high-temperature environments, follow Vishay's recommended derating guidelines, ensure proper thermal management, and consider using a thermally conductive interface material to reduce thermal resistance.
