SM06B-ZESS-TB(LF)(SN) by: JST Manufacturing

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

Part Details for SM06B-ZESS-TB(LF)(SN) by JST Manufacturing

Results Overview of SM06B-ZESS-TB(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

SM06B-ZESS-TB(LF)(SN) Information

SM06B-ZESS-TB(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SM06B-ZESS-TB(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 64X7036
Newark Wire-To-Board Connector, Ze Series, Surface Mount, Header, 6, 1.5 Mm, Tin Plated Contacts Rohs Compliant: Yes |Jst/japan Solderless Terminals SM06B-ZESS-TB(LF)(SN) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3
  • 1 $1.1000
  • 10 $0.9710
  • 100 $0.8450
  • 500 $0.6990
$0.6990 / $1.1000 Buy Now
DISTI # 53X3482
Newark Wire-To-Board Connector, Ze Series, Surface Mount, Header, 6, 1.5 Mm, Tin Plated Contacts Rohs Compliant: Yes |Jst/japan Solderless Terminals SM06B-ZESS-TB(LF)(SN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.5410
  • 2,000 $0.5120
  • 3,000 $0.4960
$0.4960 / $0.5410 Buy Now
DISTI # 455-2399-1-ND
DigiKey CONN HEADER SMD R/A 6POS 1.5MM Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.7400
  • 10 $0.6260
  • 100 $0.5318
  • 500 $0.4746
  • 1,000 $0.4746
  • 2,000 $0.4519
  • 3,000 $0.4392
  • 5,000 $0.4236
  • 7,000 $0.4137
  • 10,000 $0.4034
  • 25,000 $0.3782
$0.3782 / $0.7400 Buy Now
Quest Components BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL 5569
  • 1 $2.3700
  • 845 $0.8295
  • 1,809 $0.7110
$0.7110 / $2.3700 Buy Now
Win Source Electronics CONN HEADER SMD R/A 6POS 1.5MM 155000
  • 125 $0.4732
  • 300 $0.3883
  • 465 $0.3762
  • 635 $0.3641
  • 825 $0.3520
  • 1,100 $0.3155
$0.3155 / $0.4732 Buy Now

Part Details for SM06B-ZESS-TB(LF)(SN)

SM06B-ZESS-TB(LF)(SN) CAD Models

  • Part Symbol

    Part Symbol

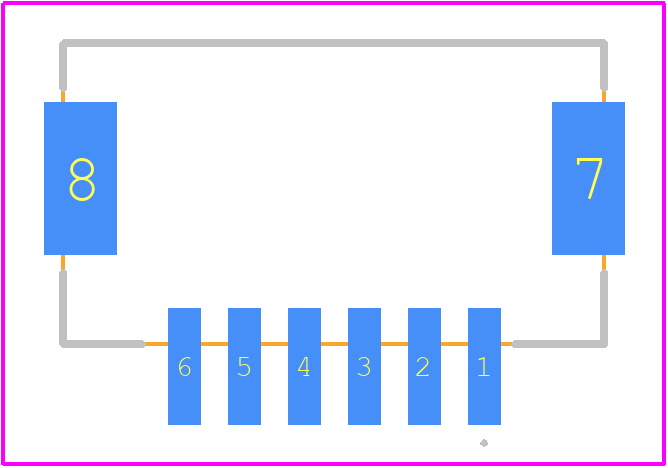

  • Footprint

    footprint

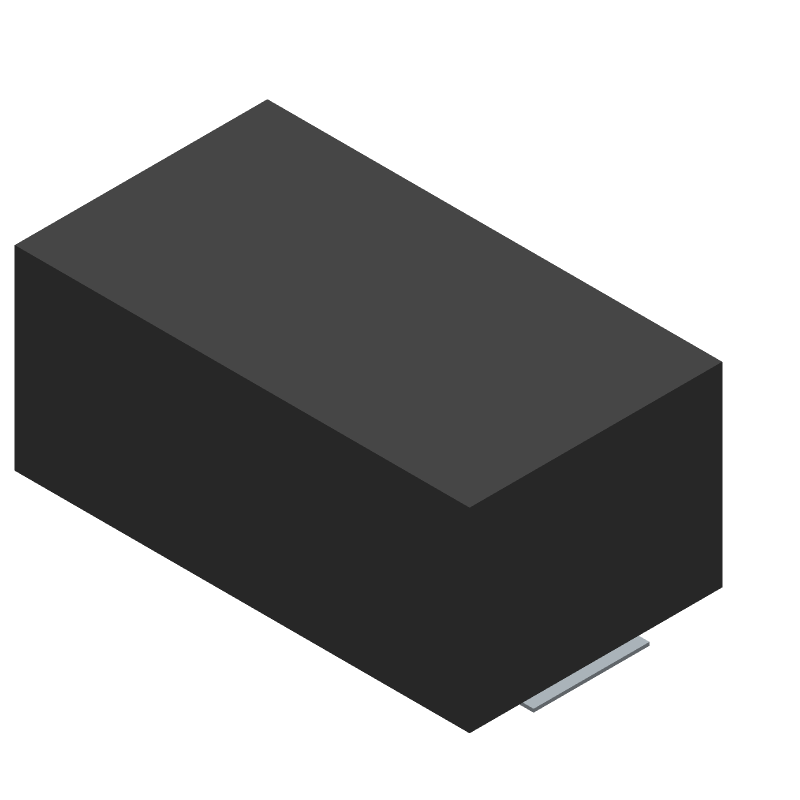

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SM06B-ZESS-TB(LF)(SN) Part Data Attributes

Parametric Data
SM06B-ZESS-TB(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
SM06B-ZESS-TB(LF)(SN) JST Manufacturing Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Package Description ROHS COMPLIANT
Reach Compliance Code unknown
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Additional Feature SHROUDED, SIDE ENTRY
Connector Type BOARD CONNECTOR
Contact Finish Mating TIN OVER COPPER
Contact Finish Termination TIN
Contact Gender MALE
Contact Material COPPER ALLOY
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 1
Option GENERAL PURPOSE
Terminal Pitch 1.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 6
UL Flammability Code 94V-0
