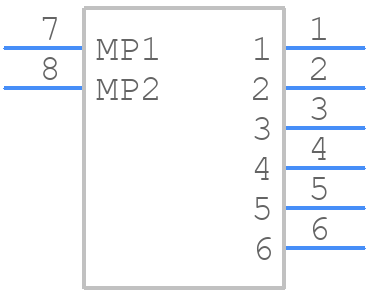

Part Symbol
-

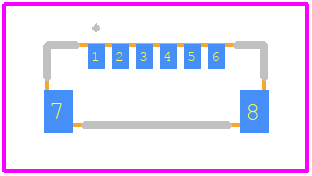

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SM06B-XSRS-ETB(LF)(SN) by JST Manufacturing
Results Overview of SM06B-XSRS-ETB(LF)(SN) by JST Manufacturing
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
Telecommunications
SM06B-XSRS-ETB(LF)(SN) Information
SM06B-XSRS-ETB(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for SM06B-XSRS-ETB(LF)(SN)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
306-SM06BXSRSETBLFSN
|
Mouser Electronics | Headers & Wire Housings XSR HEADER (SMT SIDE) RoHS: Compliant | 547 |
|
$0.4870 / $1.0700 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL | 40 |
|
$0.8640 / $1.4400 | Buy Now |
Part Details for SM06B-XSRS-ETB(LF)(SN)
SM06B-XSRS-ETB(LF)(SN) CAD Models
SM06B-XSRS-ETB(LF)(SN) Part Data Attributes
|
|
SM06B-XSRS-ETB(LF)(SN)
JST Manufacturing
Buy Now
Datasheet
|
Compare Parts:
SM06B-XSRS-ETB(LF)(SN)
JST Manufacturing
Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | J S T MFG CO LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | JST (JAPAN SOLDERLESS TERMINALS) | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | TIN OVER COPPER | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | MALE | |
| Contact Material | COPPER ALLOY | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 0.6 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 6 | |
| UL Flammability Code | 94V-0 |
