Connectors / Headers and Edge Type Connectors / SM05B-PASS-1-TB(LF)(SN)
Datasheets
SM05B-PASS-1-TB(LF)(SN) by: JST Manufacturing

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Ivory Insulator,

Part Details for SM05B-PASS-1-TB(LF)(SN) by JST Manufacturing

Results Overview of SM05B-PASS-1-TB(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SM05B-PASS-1-TB(LF)(SN) Information

SM05B-PASS-1-TB(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SM05B-PASS-1-TB(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 306-SM05BPASS1TBLFSN
Mouser Electronics Headers & Wire Housings PA HEADER (SMT SIDE) RoHS: Compliant 859
  • 1 $0.7900
  • 10 $0.6660
  • 25 $0.6240
  • 100 $0.5980
  • 250 $0.5390
  • 500 $0.4970
  • 1,000 $0.4220
  • 4,000 $0.3940
  • 8,000 $0.3610
$0.3610 / $0.7900 Buy Now
PUI   RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days 2000
RFQ

Part Details for SM05B-PASS-1-TB(LF)(SN)

SM05B-PASS-1-TB(LF)(SN) CAD Models

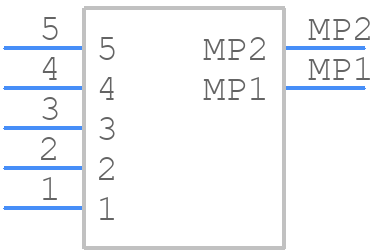

  • Part Symbol

    Part Symbol

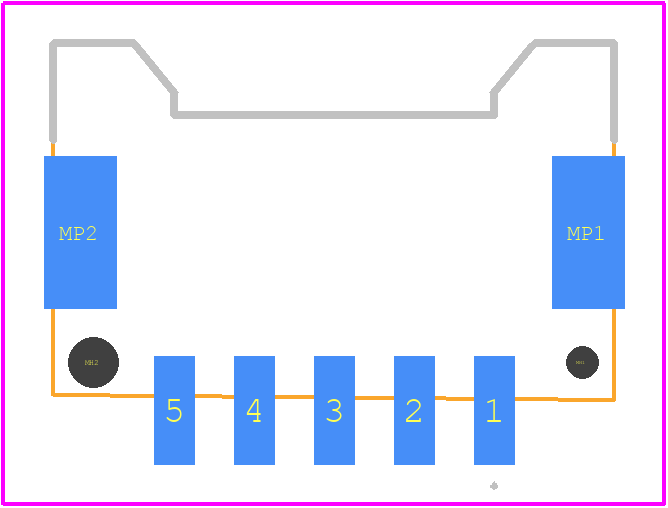

  • Footprint

    footprint

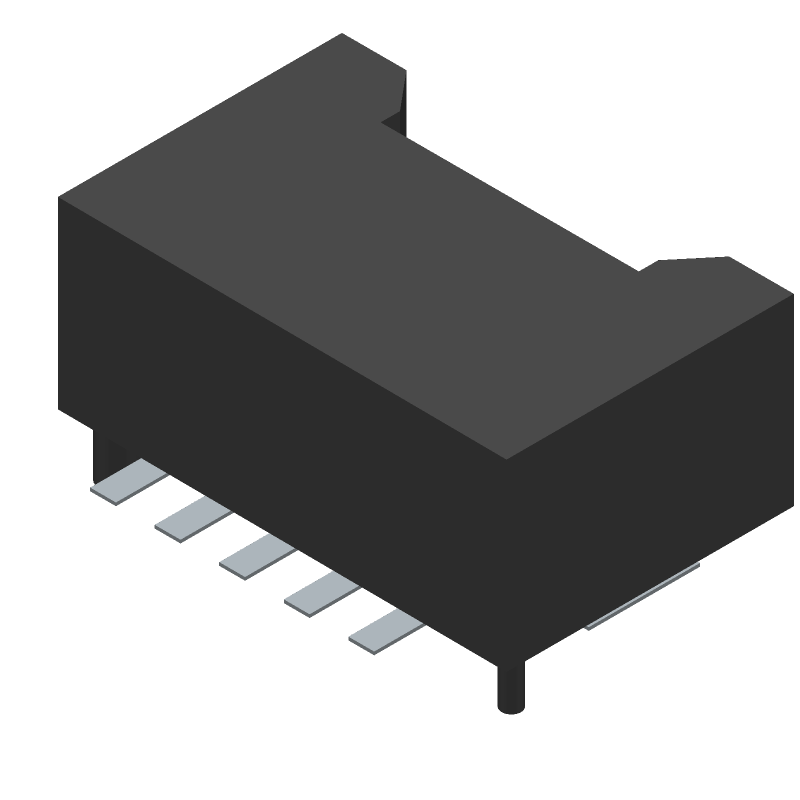

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SM05B-PASS-1-TB(LF)(SN) Part Data Attributes

Parametric Data
SM05B-PASS-1-TB(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
SM05B-PASS-1-TB(LF)(SN) JST Manufacturing Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Ivory Insulator,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Reach Compliance Code unknown
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Board Mounting Option PEG
Body Breadth 0.224 inch
Body Length 0.551 inch
Connector Type BOARD CONNECTOR
Contact Finish Termination TIN
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 800VAC V
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Color IVORY
Insulator Material POLYAMIDE
JESD-609 Code e3
Mating Contact Pitch 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZATION NOTCH
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 5
UL Flammability Code 94V-0

Alternate Parts for SM05B-PASS-1-TB(LF)(SN)

This table gives cross-reference parts and alternative options found for SM05B-PASS-1-TB(LF)(SN). The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SM05B-PASS-1-TB(LF)(SN), but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
5787444-1 TE Connectivity $3.8038 PCB Connector, 5 Contact(s), Male, Straight, Solder Terminal, Black Insulator, Plug SM05B-PASS-1-TB(LF)(SN) vs 5787444-1
54101-F34-05LF Amphenol FCi Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE SM05B-PASS-1-TB(LF)(SN) vs 54101-F34-05LF
77315-144V05 Amphenol FCi Check for Price Board Connector SM05B-PASS-1-TB(LF)(SN) vs 77315-144V05
77315-441V05 Amphenol FCi Check for Price Board Connector SM05B-PASS-1-TB(LF)(SN) vs 77315-441V05
95614-005H Amphenol FCi Check for Price Board Connector, 1 Row(s), Male, Straight, Solder Terminal SM05B-PASS-1-TB(LF)(SN) vs 95614-005H
68797-305HLF Amphenol Communications Solutions Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE SM05B-PASS-1-TB(LF)(SN) vs 68797-305HLF
78959-105LF Amphenol FCi Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE SM05B-PASS-1-TB(LF)(SN) vs 78959-105LF
77316-926 Amphenol Communications Solutions Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, SM05B-PASS-1-TB(LF)(SN) vs 77316-926
77316-123 Amphenol FCi Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal SM05B-PASS-1-TB(LF)(SN) vs 77316-123
94611-205HLF Amphenol FCi Check for Price Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE SM05B-PASS-1-TB(LF)(SN) vs 94611-205HLF

SM05B-PASS-1-TB(LF)(SN) Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.0 N·m (4.4-8.8 lb·in).

  • Yes, the SM05B-PASS-1-TB(LF)(SN) is designed to withstand vibrations and is suitable for use in high-vibration environments.

  • Yes, the SM05B-PASS-1-TB(LF)(SN) is designed for automated assembly and can be easily mounted using automated assembly equipment.

  • The operating temperature range for the SM05B-PASS-1-TB(LF)(SN) is -40°C to 105°C (-40°F to 221°F).

  • Yes, the SM05B-PASS-1-TB(LF)(SN) is RoHS and REACH compliant, making it suitable for use in EU markets.
