SLF7032T-470MR67-2PF Information
SLF7032T-470MR67-2PF by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SLF7032T-470MR67-2PF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-2008-1-ND
|
DigiKey | FIXED IND 47UH 670MA 288MOHM SMD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
34010 In Stock |
|
$0.3375 / $0.7600 | Buy Now |
|
DISTI #
SLF7032T-470MR67-2PF
|
Avnet Americas | Power Inductor (SMD), 47 uH, ? 20%, 670 mA, Shielded, 670 mA, 7mm x 7mm x 3.2mm - Tape and Reel (Alt: SLF7032T-470MR67-2PF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.3110 / $0.3462 | Buy Now |
|
DISTI #
810-SLF732T470M672PF
|
Mouser Electronics | Power Inductors - SMD RECOMMENDED ALT 810-VLS6045EX-470M-H RoHS: Compliant | 1729 |
|
$0.3380 / $0.6700 | Buy Now |
|
DISTI #
V72:2272_06599885
|
Arrow Electronics | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.67A 0.288Ohm DCR T/R RoHS: Compliant Min Qty: 268 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2115 Container: Cut Strips | Americas - 1074 |
|
$0.3494 / $0.3729 | Buy Now |
|
|
Onlinecomponents.com | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 670mA 288mOhm DCR T/R RoHS: Compliant |
935 In Stock |
|
$0.3290 / $0.4752 | Buy Now |
|
DISTI #
55357729
|
Verical | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.67A 0.288Ohm DCR T/R RoHS: Compliant Min Qty: 268 Package Multiple: 1 Date Code: 2115 | Americas - 1074 |
|
$0.3729 | Buy Now |
|
DISTI #
30618687
|
Verical | Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.67A 0.288Ohm DCR T/R RoHS: Compliant Min Qty: 134 Package Multiple: 1 | Americas - 180 |
|
$0.4840 | Buy Now |
|
|
Quest Components | 532 |
|
$0.5200 / $2.0000 | Buy Now | |
|
DISTI #
SLF7032T-470MR67-2PF
|
TTI | Power Inductors - SMD RECOMMENDED ALT 810-VLS6045EX-470M-H pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.3690 / $0.4130 | Buy Now |
|
DISTI #
SLF7032T-470MR67-2PF
|
Avnet Abacus | Power Inductor SMD 47 uH 20 670 mA Shielded 670 mA 7mm x 7mm x 32mm (Alt: SLF7032T-470MR67-2PF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SLF7032T-470MR67-2PF

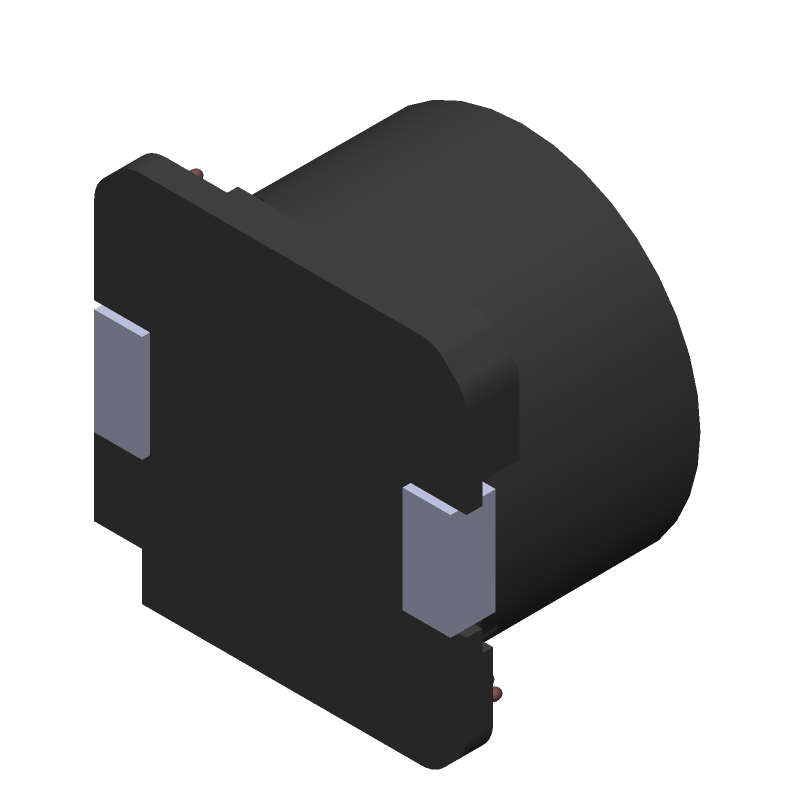

SLF7032T-470MR67-2PF CAD Models
SLF7032T-470MR67-2PF Part Data Attributes
|
|
SLF7032T-470MR67-2PF
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
SLF7032T-470MR67-2PF
TDK Corporation
General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 2828, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2828 | |
| Construction | Rectangular | |
| Core Material | FERRITE | |
| DC Resistance | 0.24 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.2 mm | |
| Package Length | 7 mm | |
| Package Style | SMT | |
| Package Width | 7 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 0.67 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
