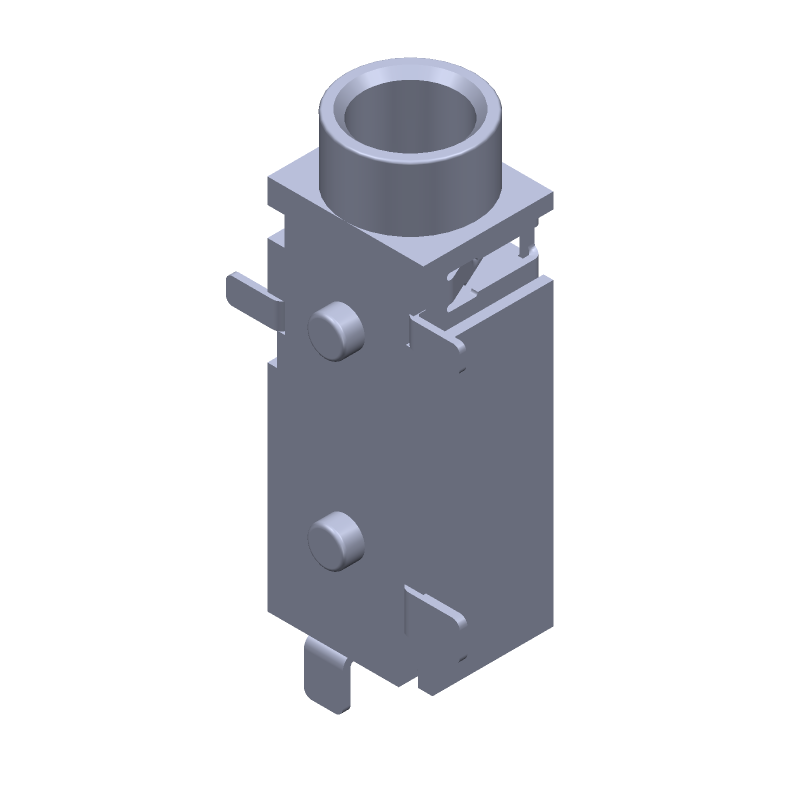

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SJ-3524-SMT-TR-BE by Same Sky
Results Overview of SJ-3524-SMT-TR-BE by Same Sky
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
SJ-3524-SMT-TR-BE Information
SJ-3524-SMT-TR-BE by Same Sky is an Audio/RCA Connector.
Audio/RCA Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DDR4-288-S0591-TF | Amphenol Communications Solutions | DDR4 SMT | |
| DDR4288S0213VF | Amphenol Communications Solutions | DDR4 SMT | |
| DDR4-288-S0121-HF | Amphenol Communications Solutions | DDR4 SMT |
Price & Stock for SJ-3524-SMT-TR-BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CP-3524SJBECT-ND
|
DigiKey | CONN JACK STEREO 3.5MM SMD R/A Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1233 In Stock |
|
$0.6343 / $1.2200 | Buy Now |
|
DISTI #
490-SJ3524SMTTRBE
|
Mouser Electronics | Phone Connectors audio jack, 3.5 mm, rt, stereo, SMT, 1 switch, blue, T&R package RoHS: Compliant | 8 |
|
$0.6750 / $1.0100 | Buy Now |
|
DISTI #
V36:1790_18663135
|
Arrow Electronics | Conn 3.5MM Audio Jack RCP 3 POS Solder RA SMD 4 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks Date Code: 2305 | Americas - 1000 |
|
$0.5718 / $0.6008 | Buy Now |
|
DISTI #
V72:2272_18663135
|
Arrow Electronics | Conn 3.5MM Audio Jack RCP 3 POS Solder RA SMD 4 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2313 Container: Cut Strips | Americas - 479 |
|
$0.6281 / $0.8504 | Buy Now |
|
|
Onlinecomponents.com | 3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 1 Internal Switch, Audio Jack Connector RoHS: Compliant |
2750 In Stock |
|
$0.6130 / $0.7140 | Buy Now |
|
DISTI #
68498754
|
Verical | Conn 3.5MM Audio Jack RCP 3 POS Solder RA SMD 4 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2305 | Americas - 1000 |
|
$0.5718 / $0.6008 | Buy Now |
|
DISTI #
67228914
|
Verical | Conn 3.5MM Audio Jack RCP 3 POS Solder RA SMD 4 Terminal 1 Port T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 2313 | Americas - 479 |
|
$0.6281 / $0.7278 | Buy Now |
|
|
Master Electronics | 3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 1 Internal Switch, Audio Jack Connector RoHS: Compliant |
2750 In Stock |
|
$0.6130 / $0.7140 | Buy Now |
Part Details for SJ-3524-SMT-TR-BE
SJ-3524-SMT-TR-BE CAD Models
SJ-3524-SMT-TR-BE Part Data Attributes
|
|
SJ-3524-SMT-TR-BE
Same Sky
Buy Now
Datasheet
|
Compare Parts:
SJ-3524-SMT-TR-BE
Same Sky
3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 1 Internal Switch, Audio Jack Connector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CUI DEVICES | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Same Sky | |
| Additional Feature | LOW PROFILE | |
| Audio Type | STEREO | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.197 inch | |
| Body Depth | 0.669 inch | |
| Body Length | 0.236 inch | |
| Body/Shell Style | JACK | |
| Configuration | 1X1 HORIZONTAL | |
| Connector Type | 3.5mm Audio | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Silver (Ag) | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Resistance | 50 mΩ | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Durability | 5000 Cycles | |
| IEC Conformance | NO | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | BLUE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Poles | 3 | |
| Number of Ports | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | GENERAL PURPOSE | |
| Polarization Key | POLARIZED KEY | |
| Rated Current (Signal) | 1 A | |
| Termination Type | SURFACE MOUNT |
SJ-3524-SMT-TR-BE Frequently Asked Questions (FAQ)
-
The recommended land pattern for SJ-3524-SMT-TR-BE can be found in the CUI Devices' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
-
Thermal considerations for SJ-3524-SMT-TR-BE include ensuring good thermal conductivity between the component and the PCB, using thermal vias, and providing adequate airflow. Consult the datasheet and CUI Devices' application notes for specific guidance.
-
The recommended soldering profile for SJ-3524-SMT-TR-BE follows the IPC-J-STD-020 standard. A typical profile includes a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C.
-
While SJ-3524-SMT-TR-BE is designed to be robust, it's essential to evaluate the component's performance in a high-vibration environment. Consult with CUI Devices' technical support team to discuss specific requirements and potential modifications.
-
The typical lead time and MOQ (Minimum Order Quantity) for SJ-3524-SMT-TR-BE vary depending on the region and distributor. Contact a CUI Devices' authorized distributor or their sales team for the most up-to-date information.
