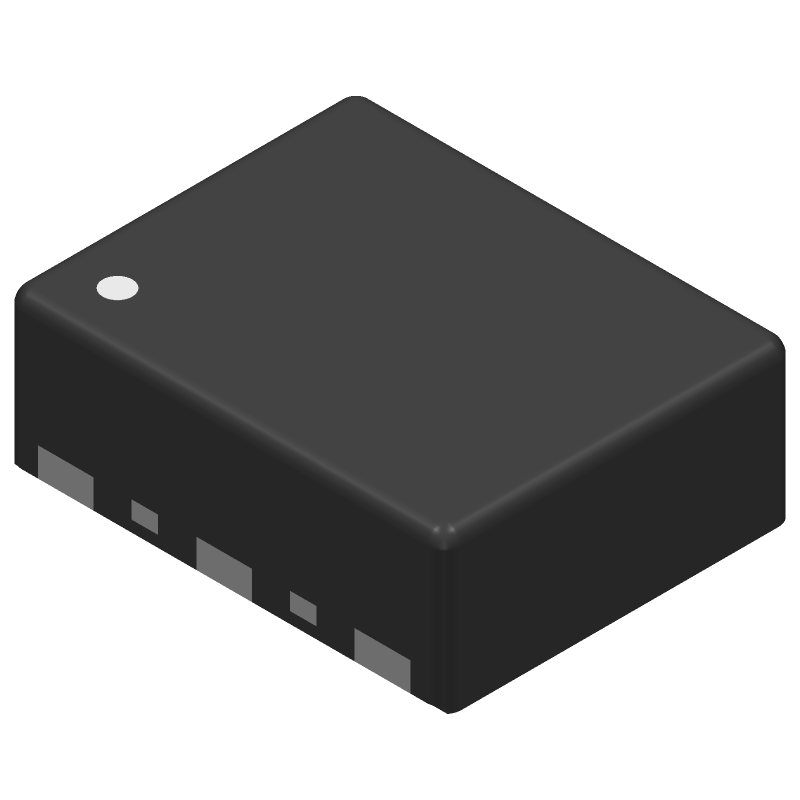

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT9501AI-01A1-2500-156.250000 by SiTime Corporation
Results Overview of SIT9501AI-01A1-2500-156.250000 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SIT9501AI-01A1-2500-156.250000 Information
SIT9501AI-01A1-2500-156.250000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| INA301A1QDGKTQ1 | Texas Instruments | AEC-Q100, 36V, Low-/High-side, Voltage Output CSA with Comparator 8-VSSOP -40 to 125 | |
| INA301A1IDGKR | Texas Instruments | 36V, Low-/High-side, Voltage Output CSA with Comparator 8-VSSOP -40 to 125 | |
| INA301A1QDGKRQ1 | Texas Instruments | AEC-Q100, 36V, Low-/High-side, Voltage Output CSA with Comparator 8-VSSOP -40 to 125 |
Price & Stock for SIT9501AI-01A1-2500-156.250000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SiT9501AI-01A1-2500-156.250000
|
SiTime Corporation | Ultra-low Jitter Differential XO for Standard Networking Frequencies Package Multiple: 1 | 4999 |
|
$5.7750 / $6.3530 | Buy Now |
Part Details for SIT9501AI-01A1-2500-156.250000
SIT9501AI-01A1-2500-156.250000 CAD Models
SIT9501AI-01A1-2500-156.250000 Part Data Attributes
|
|
SIT9501AI-01A1-2500-156.250000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9501AI-01A1-2500-156.250000
SiTime Corporation
Ultra-low Jitter Differential XO for Standard Networking Frequencies
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | COMPLEMENTARY OUTPUT | |
| Fall Time-Max | 0.2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 20% | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 156.25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVPECL | |
| Output Load | 50 OHM | |
| Package Equivalence Code | SOLCC6,.08,35 | |
| Physical Dimension | 2.5mm x 2.0mm x 0.9mm | |
| Rise Time-Max | 0.2 ns | |
| Screening Level | MIL-STD-883F | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Symmetry-Max | 52/48 % | |
| Terminal Finish | Tin (Sn) |
