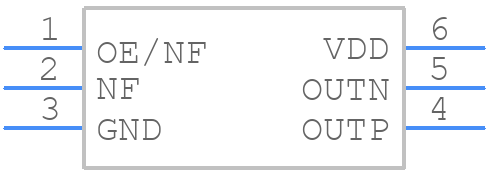

Part Symbol
-
Footprint
-

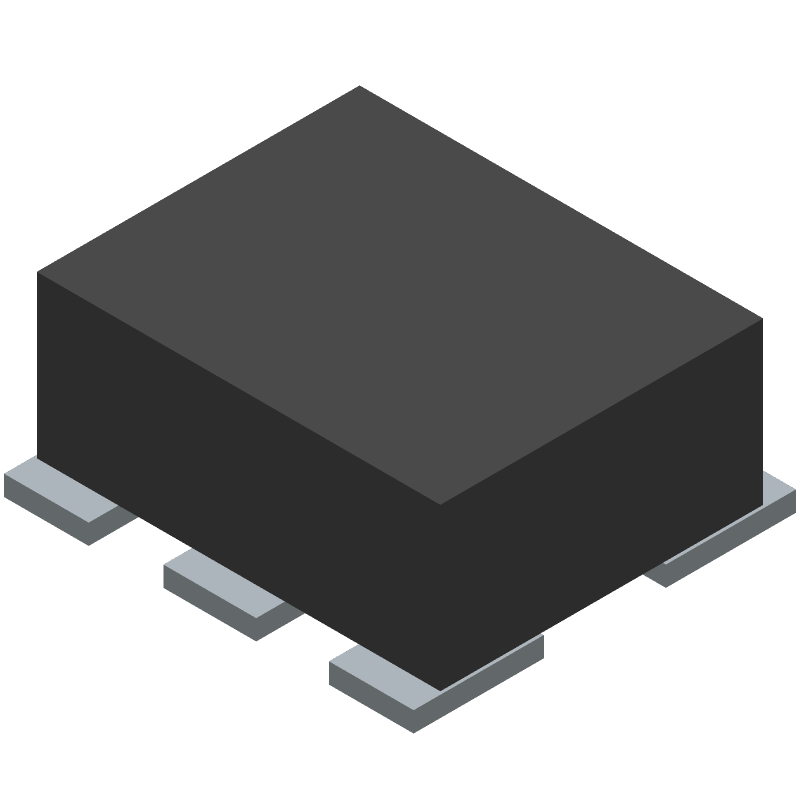

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT9501AC-01P2-2500-39.062500 by SiTime Corporation
Results Overview of SIT9501AC-01P2-2500-39.062500 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SIT9501AC-01P2-2500-39.062500 Information
SIT9501AC-01P2-2500-39.062500 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PGA2500IDBRG4 | Texas Instruments | Gain Range: 0dB, and 10dB to 65dB in 1dB steps 28-SSOP -40 to 85 | |
| PGA2500IDBG4 | Texas Instruments | Gain Range: 0dB, and 10dB to 65dB in 1dB steps 28-SSOP -40 to 85 | |
| PGA2500IDBR | Texas Instruments | Gain Range: 0dB, and 10dB to 65dB in 1dB steps 28-SSOP -40 to 85 |
Price & Stock for SIT9501AC-01P2-2500-39.062500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SIT9501AC-01P2-2500-39.062500
|
SiTime Corporation | Ultra-low Jitter Differential XO for Standard Networking Frequencies Package Multiple: 1 | 4999 |
|
$4.5750 / $5.0310 | Buy Now |
Part Details for SIT9501AC-01P2-2500-39.062500
SIT9501AC-01P2-2500-39.062500 CAD Models
SIT9501AC-01P2-2500-39.062500 Part Data Attributes
|
|
SIT9501AC-01P2-2500-39.062500
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9501AC-01P2-2500-39.062500
SiTime Corporation
LVPECL Output Clock Oscillator, 39.0625MHz Nom,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Package Description | PQFN-6 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Fall Time-Max | 0.2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 39.0625 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Oscillator Type | LVPECL | |
| Output Load | 50 OHM | |
| Package Equivalence Code | SOLCC6,.06,28 | |
| Physical Dimension | 2mm x 1.6mm x 0.8mm | |
| Rise Time-Max | 0.2 ns | |
| Screening Level | MIL-STD-883F | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Symmetry-Max | 52/48 % | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
