SIT9121AI-2C2-25E125.000000 Information
SIT9121AI-2C2-25E125.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT9121AI-2C2-25E125.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1473-SIT9121AI-2C2-25E125.000000-ND
|
DigiKey | MEMS OSC XO 125.0000MHZ LVDS SMD Min Qty: 1 Lead time: 26 Weeks Container: Strip | Temporarily Out of Stock |
|
$3.5524 / $5.7200 | Buy Now |
|
DISTI #
86524190
|
Verical | Oscillator MEMS 125MHz ±25ppm (Stability) LVDS 55% 2.5V 6-Pin QFN SMD Bulk RoHS: Compliant Min Qty: 17 Package Multiple: 1 Date Code: 2406 | Americas - 27916 |
|
$3.5010 / $4.2713 | Buy Now |
|
DISTI #
SiT9121AI-2C2-25E125.000000
|
SiTime Corporation | 1 to 220 MHz, ±10 to ±50 ppm Differential XO Package Multiple: 1 | 14563 |
|
$2.7390 / $5.7660 | Buy Now |
|
|
SEMIX | 1 to 220 MHz, ±10 to ±50 ppm Differential XO | 1000 |
|
$2.2186 / $4.3916 | Buy Now |
|
|
Vyrian | Oscillators | 17255 |
|
RFQ |
Part Details for SIT9121AI-2C2-25E125.000000

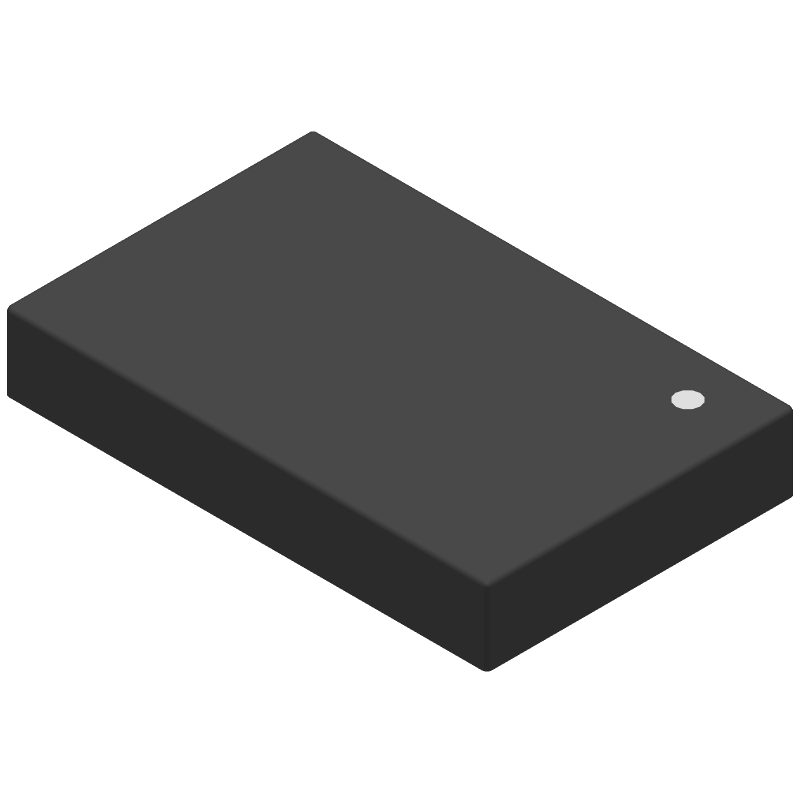

SIT9121AI-2C2-25E125.000000 CAD Models
SIT9121AI-2C2-25E125.000000 Part Data Attributes
|
|
SIT9121AI-2C2-25E125.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9121AI-2C2-25E125.000000
SiTime Corporation
LVDS Output Clock Oscillator, 125MHz Nom,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT | |
| Fall Time-Max | 0.7 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 125 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVDS | |
| Output Load | 100 OHM | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOLCC6,.12 | |
| Physical Dimension | 5.0mm x 3.2mm x 0.75mm | |
| Rise Time-Max | 0.7 ns | |
| Supply Current-Max | 69 mA | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
