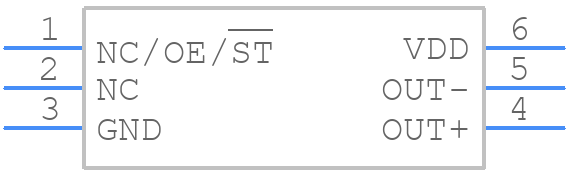

Part Symbol
-
Footprint
-

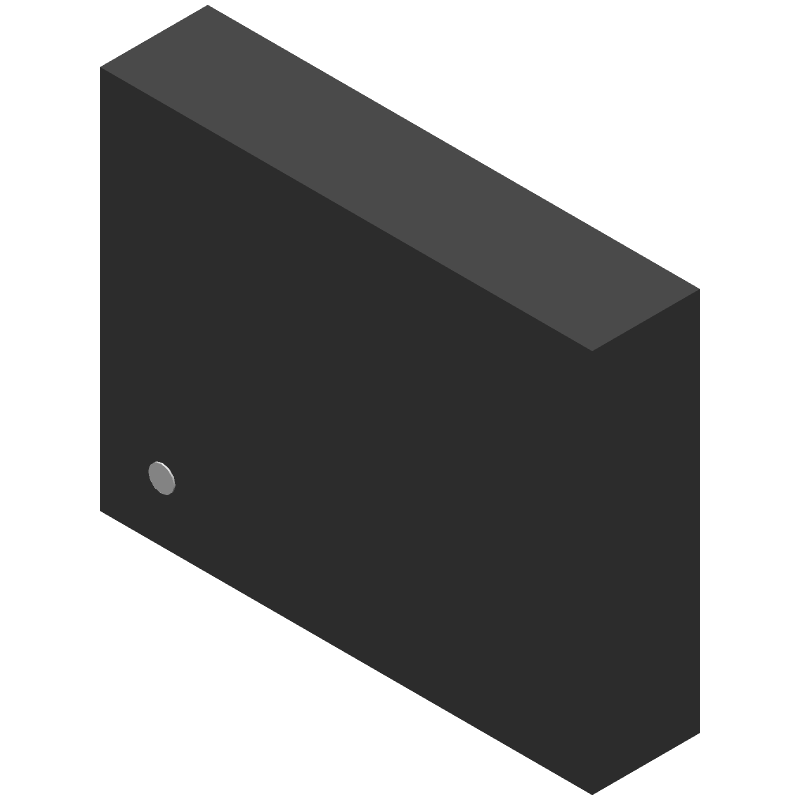

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT9120AI-2B2-33E50.000000 by SiTime Corporation
Results Overview of SIT9120AI-2B2-33E50.000000 by SiTime Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SIT9120AI-2B2-33E50.000000 Information
SIT9120AI-2B2-33E50.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CS-USBAB00000-000.5 | Amphenol Cables on Demand | Amphenol CS-USBAB00000-000.5 Molded USB 2.0 Cable - Type A-B 0.5m | |
| CS-USBAA00000-003 | Amphenol Cables on Demand | Amphenol CS-USBAA00000-003 Molded USB 2.0 Cable - Type A-A 3m | |
| CS-USBAA00000-001 | Amphenol Cables on Demand | Amphenol CS-USBAA00000-001 Molded USB 2.0 Cable - Type A-A 1m |
Price & Stock for SIT9120AI-2B2-33E50.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1473-SIT9120AI-2B2-33E50.000000-ND
|
DigiKey | MEMS OSC XO 50.0000MHZ LVDS SMD Min Qty: 1 Lead time: 26 Weeks Container: Strip | Temporarily Out of Stock |
|
$3.5505 / $5.7100 | Buy Now |
|
DISTI #
74249384
|
Verical | Oscillator MEMS 50MHz ±25ppm (Stability) LVDS 55% 3.3V 6-Pin QFN SMD Bulk Min Qty: 18 Package Multiple: 1 | Americas - 17278 |
|
$3.2768 / $3.9977 | Buy Now |
|
DISTI #
SiT9120AI-2B2-33E50.000000
|
SiTime Corporation | Standard Frequency ±10 to ±50 ppm Differential XO Package Multiple: 1 | 27180 |
|
$2.2830 / $4.8050 | Buy Now |
|
|
SEMIX | Standard Frequency ±10 to ±50 ppm Differential XO | 1000 |
|
$1.8492 / $4.3893 | Buy Now |
Part Details for SIT9120AI-2B2-33E50.000000
SIT9120AI-2B2-33E50.000000 CAD Models
SIT9120AI-2B2-33E50.000000 Part Data Attributes
|
|
SIT9120AI-2B2-33E50.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9120AI-2B2-33E50.000000
SiTime Corporation
LVDS Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 50MHz Nom, CMOS,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT | |
| Fall Time-Max | 0.6 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 50 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVDS | |
| Output Load | 100 OHM | |
| Package Body Material | PLASTIC | |
| Package Equivalence Code | SOLCC6,.1,45 | |
| Physical Dimension | 3.2mm x 2.5mm x 0.75mm | |
| Qualification Status | Not Qualified | |
| Rise Time-Max | 0.6 ns | |
| Supply Current-Max | 55 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
Alternate Parts for SIT9120AI-2B2-33E50.000000
This table gives cross-reference parts and alternative options found for SIT9120AI-2B2-33E50.000000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIT9120AI-2B2-33E50.000000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SIT9120AI-2B2-33E50.000000 Frequently Asked Questions (FAQ)
-
SiTime recommends a symmetrical layout with the oscillator placed near the center of the board, and the output traces should be routed as differential pairs to minimize noise and EMI.
-
Make sure to follow the recommended power-up sequence, and ensure the VDD pin is powered up before the EN pin. Also, add a 10kΩ pull-up resistor on the EN pin to prevent unwanted startup.
-
The SIT9120AI-2B2-33E50.000000 has an industrial temperature range of -40°C to +85°C, but it's essential to check the specific temperature range for your application and ensure the oscillator is within its recommended operating conditions.
-
Yes, the SIT9120AI-2B2-33E50.000000 is designed to operate in high-vibration environments, but it's crucial to follow proper PCB mounting and soldering techniques to ensure the oscillator remains securely attached to the board.
-
Check the power supply voltage, ensure the EN pin is properly biased, and verify the output frequency using an oscilloscope. Also, check for any board-level issues, such as shorts or opens, that might prevent the oscillator from functioning correctly.
