Oscillators / XO / SIT9120AI-1D2-33E150.000000
Datasheets
SIT9120AI-1D2-33E150.000000 by: SiTime Corporation

LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS,

Part Details for SIT9120AI-1D2-33E150.000000 by SiTime Corporation

Results Overview of SIT9120AI-1D2-33E150.000000 by SiTime Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

SIT9120AI-1D2-33E150.000000 Information

SIT9120AI-1D2-33E150.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for SIT9120AI-1D2-33E150.000000

Part # Distributor Description Stock Price Buy
DISTI # 1473-SIT9120AI-1D2-33E150.000000-ND
DigiKey MEMS OSC XO 150.0000MHZ LVPECL Min Qty: 1 Lead time: 26 Weeks Container: Strip Temporarily Out of Stock
  • 1 $5.7200
  • 10 $4.9700
  • 50 $4.5058
  • 100 $4.3197
  • 500 $3.9172
  • 1,000 $3.7559
  • 2,500 $3.5537
$3.5537 / $5.7200 Buy Now
DISTI # 86520983
Verical Oscillator MEMS 150MHz ±25ppm (Stability) LVPECL 55% 3.3V 6-Pin QFN SMD Bulk Min Qty: 18 Package Multiple: 1 Date Code: 2406 Americas - 29283
  • 18 $3.9771
  • 150 $3.5207
  • 250 $3.3577
  • 500 $3.2599
$3.2599 / $3.9771 Buy Now
DISTI # SiT9120AI-1D2-33E150.000000
SiTime Corporation Standard Frequency ±10 to ±50 ppm Differential XO Package Multiple: 1 8692
  • 1 $4.8050
  • 100 $3.2440
  • 500 $2.6430
  • 1,000 $2.2830
$2.2830 / $4.8050 Buy Now
SEMIX Standard Frequency ±10 to ±50 ppm Differential XO 1000
  • 50 $4.3933
  • 100 $2.9196
  • 500 $2.3787
  • 1,000 $2.0547
  • 5,000 $1.8492
$1.8492 / $4.3933 Buy Now

Part Details for SIT9120AI-1D2-33E150.000000

SIT9120AI-1D2-33E150.000000 CAD Models

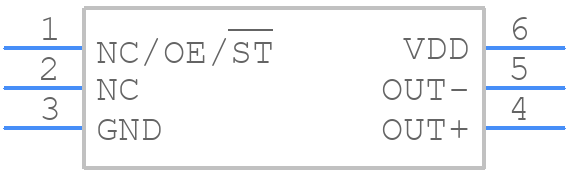

  • Part Symbol

    Part Symbol

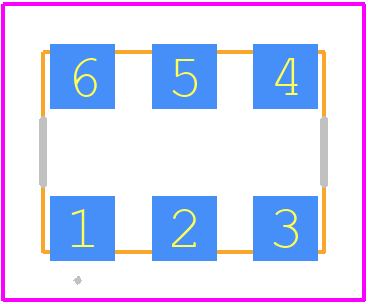

  • Footprint

    footprint

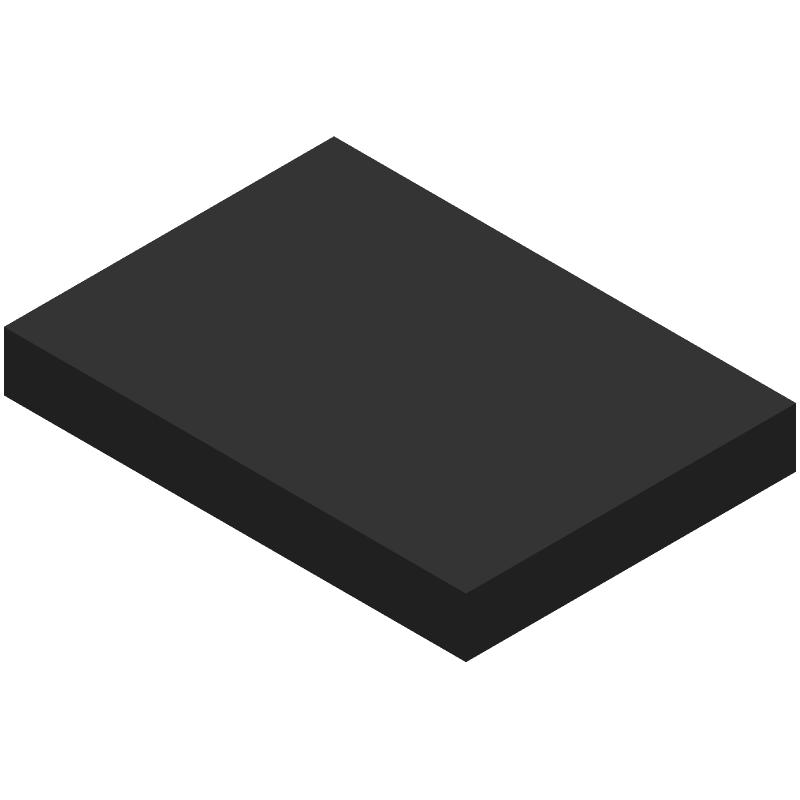

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SIT9120AI-1D2-33E150.000000 Part Data Attributes

Parametric Data
SIT9120AI-1D2-33E150.000000 SiTime Corporation
Buy Now Datasheet
Compare Parts:
SIT9120AI-1D2-33E150.000000 SiTime Corporation LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SITIME CORP
Reach Compliance Code compliant
Samacsys Manufacturer SiTime
Additional Feature ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT
Fall Time-Max 0.5 ns
Frequency Adjustment-Mechanical NO
Frequency Stability 25%
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Terminals 6
Operating Frequency-Nom 150 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type LVPECL
Output Load 50 OHM
Package Body Material PLASTIC
Package Equivalence Code DILCC6,.2
Physical Dimension 7mm x 5mm x 0.9mm
Qualification Status Not Qualified
Rise Time-Max 0.5 ns
Supply Current-Max 69 mA
Supply Voltage-Max 3.63 V
Supply Voltage-Min 2.97 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Symmetry-Max 55/45 %
Terminal Finish NICKEL PALLADIUM GOLD

Alternate Parts for SIT9120AI-1D2-33E150.000000

This table gives cross-reference parts and alternative options found for SIT9120AI-1D2-33E150.000000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIT9120AI-1D2-33E150.000000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SIT9120AI-1D2-33E150.000000T SiTime Corporation Check for Price LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS, SIT9120AI-1D2-33E150.000000 vs SIT9120AI-1D2-33E150.000000T
SIT9120AC-1D2-33E150.000000 SiTime Corporation Check for Price LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS, SIT9120AI-1D2-33E150.000000 vs SIT9120AC-1D2-33E150.000000
SIT9120AI-1D2-33E150.000000Y SiTime Corporation Check for Price LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS, SIT9120AI-1D2-33E150.000000 vs SIT9120AI-1D2-33E150.000000Y
SIT9120AC-1D2-33E150.000000Y SiTime Corporation Check for Price LVPECL Output Clock Oscillator, 25MHz Min, 212.5MHz Max, 150MHz Nom, CMOS, SIT9120AI-1D2-33E150.000000 vs SIT9120AC-1D2-33E150.000000Y
