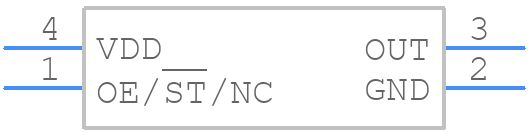

Part Symbol
-
Footprint
-

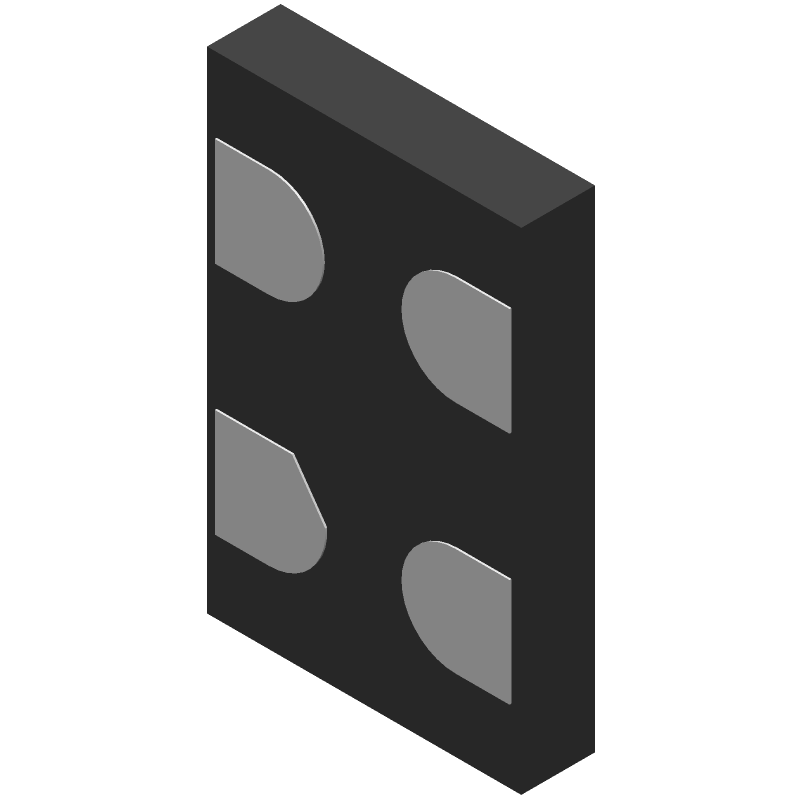

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT8008BI-32-33E-50.000000 by SiTime Corporation
Results Overview of SIT8008BI-32-33E-50.000000 by SiTime Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SIT8008BI-32-33E-50.000000 Information
SIT8008BI-32-33E-50.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CS-USBAB00000-000.5 | Amphenol Cables on Demand | Amphenol CS-USBAB00000-000.5 Molded USB 2.0 Cable - Type A-B 0.5m | |
| CS-USBAA00000-003 | Amphenol Cables on Demand | Amphenol CS-USBAA00000-003 Molded USB 2.0 Cable - Type A-A 3m | |
| CS-USBAA00000-001 | Amphenol Cables on Demand | Amphenol CS-USBAA00000-001 Molded USB 2.0 Cable - Type A-A 1m |
Price & Stock for SIT8008BI-32-33E-50.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1473-SIT8008BI-32-33E-50.000000-ND
|
DigiKey | MEMS OSC XO 50.0000MHZ H/LV-CMOS Min Qty: 1 Lead time: 26 Weeks Container: Strip | Temporarily Out of Stock |
|
$0.8892 / $1.5600 | Buy Now |
|
DISTI #
88249720
|
Verical | Oscillator MEMS 50MHz ±25ppm (Stability) 15pF HCMOS/LVCMOS 55% 3.3V Medical 4-Pin QFN SMD Bulk RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 2503 | Americas - 48818 |
|
$0.9471 / $1.1533 | Buy Now |
|
DISTI #
SiT8008BI-32-33E-50.000000
|
SiTime Corporation | 1 to 110 MHz, Low Power Oscillator Package Multiple: 1 | 46827 |
|
$0.7370 / $2.8540 | Buy Now |
|
|
SEMIX | 1 to 110 MHz, Low Power Oscillator | 37500 |
|
$0.5970 / $1.2560 | Buy Now |
Part Details for SIT8008BI-32-33E-50.000000
SIT8008BI-32-33E-50.000000 CAD Models
SIT8008BI-32-33E-50.000000 Part Data Attributes
|
|
SIT8008BI-32-33E-50.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT8008BI-32-33E-50.000000
SiTime Corporation
1 to 110 MHz, Low Power Oscillator
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH HCMOS O/P | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 50 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS | |
| Output Load | 15 pF | |
| Output Low Current-Max | 4 mA | |
| Package Body Material | PLASTIC | |
| Package Equivalence Code | DILCC4,.12,94 | |
| Physical Dimension | 5.0mm x 3.2mm x 0.75mm | |
| Rise Time-Max | 2 ns | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
SIT8008BI-32-33E-50.000000 Frequently Asked Questions (FAQ)
-
SiTime provides a recommended PCB layout guide in their application note AN10005, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The SIT8008BI-32-33E-50.000000 is a programmable oscillator, and the frequency can be configured using SiTime's TimeView software or by using the device's I2C interface. The specific configuration process is outlined in the datasheet and application notes.
-
The typical power consumption of the SIT8008BI-32-33E-50.000000 is around 3.5mA, but this can vary depending on the specific configuration and operating conditions. The datasheet provides more detailed information on power consumption.
-
The SIT8008BI-32-33E-50.000000 is a standard CMOS oscillator and is compatible with most microcontrollers and FPGAs. However, it's always recommended to check the specific interface requirements and signal integrity with your microcontroller or FPGA datasheet.
-
The lead time and availability of the SIT8008BI-32-33E-50.000000 can vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or SiTime's website for the latest information on lead time and availability.
