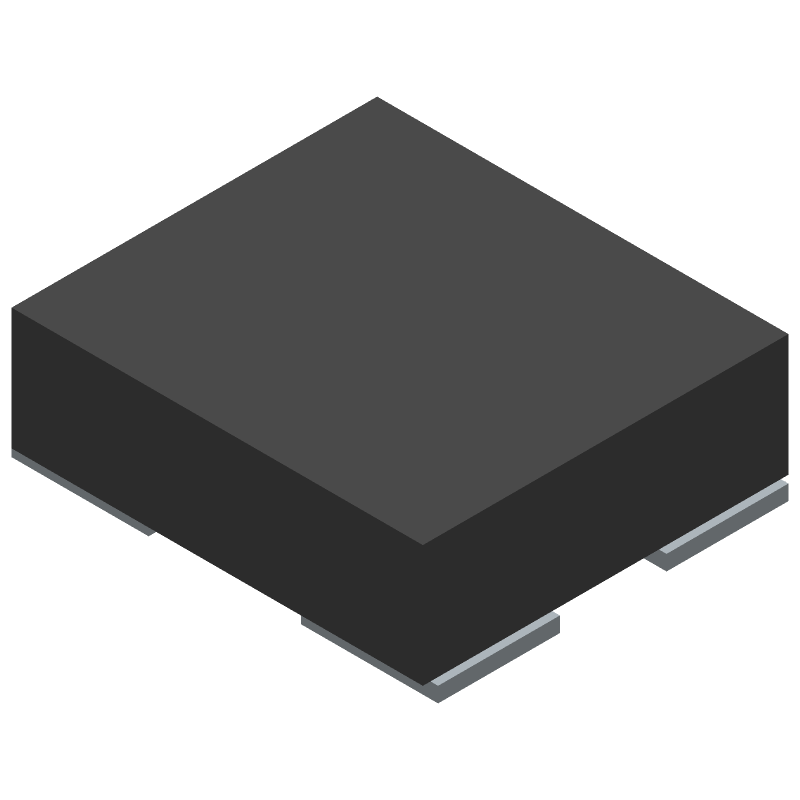

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT5000AICGE-33E0-25.000000 by SiTime Corporation
Results Overview of SIT5000AICGE-33E0-25.000000 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
Automotive
SIT5000AICGE-33E0-25.000000 Information
SIT5000AICGE-33E0-25.000000 by SiTime Corporation is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT5000AICGE-33E0-25.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SiT5000AICGE-33E0-25.000000
|
SiTime Corporation | Standard Frequency ±5 ppm (VC)TCXO Package Multiple: 1 | 4999 |
|
$1.7030 / $6.6430 | Buy Now |
Part Details for SIT5000AICGE-33E0-25.000000
SIT5000AICGE-33E0-25.000000 CAD Models
SIT5000AICGE-33E0-25.000000 Part Data Attributes
|
|
SIT5000AICGE-33E0-25.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT5000AICGE-33E0-25.000000
SiTime Corporation
Standard Frequency ±5 ppm (VC)TCXO
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION; BULK; ALSO COMPATIBLE WITH 2.5X2 MM FOOTPRINT | |
| Aging | 2.5 PPM/FIRST YEAR | |
| Fall Time-Max | 9.5 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 5% | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS | |
| Output Load | 10 KOHM, 10 pF | |
| Physical Dimension | 2.7mm x 2.4mm x 0.75mm | |
| Rise Time-Max | 9.5 ns | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
