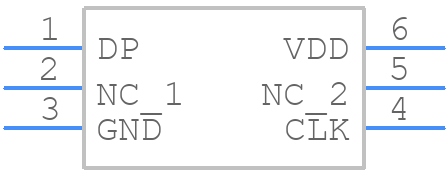

Part Symbol
-
Footprint
-

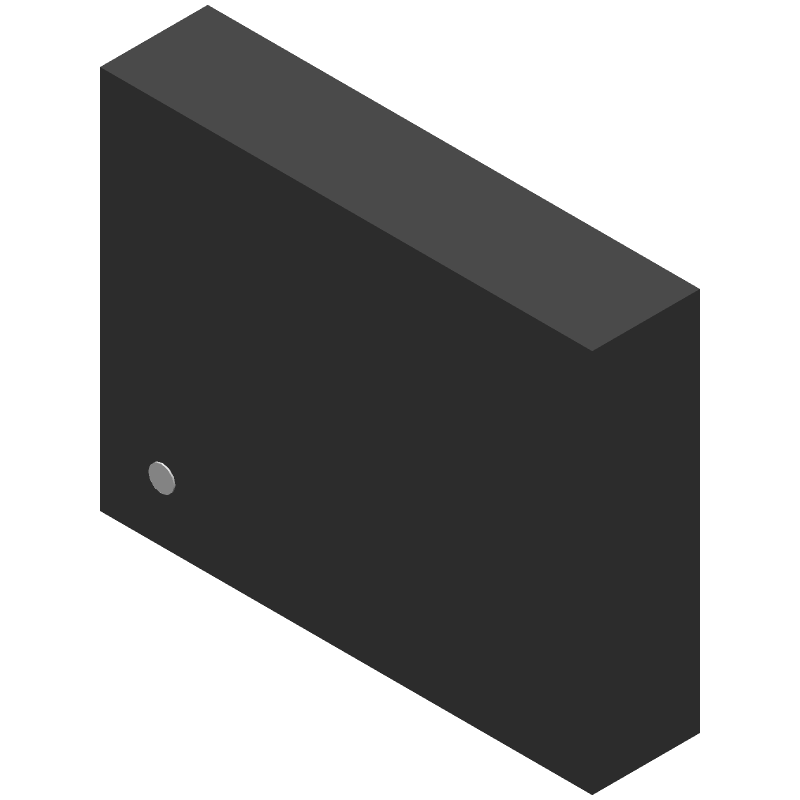

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT3907AC-2F-33NM-80.372250 by SiTime Corporation
Results Overview of SIT3907AC-2F-33NM-80.372250 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
SIT3907AC-2F-33NM-80.372250 Information
SIT3907AC-2F-33NM-80.372250 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT3907AC-2F-33NM-80.372250
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SiT3907AC-2F-33NM-80.372250
|
SiTime Corporation | 1 to 220 MHz, ±10 to ±50 ppm Digitally-controlled XO Package Multiple: 1 | 4999 |
|
$10.8290 / $37.6610 | Buy Now |
Part Details for SIT3907AC-2F-33NM-80.372250
SIT3907AC-2F-33NM-80.372250 CAD Models
SIT3907AC-2F-33NM-80.372250 Part Data Attributes
|
|
SIT3907AC-2F-33NM-80.372250
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT3907AC-2F-33NM-80.372250
SiTime Corporation
1 to 220 MHz, ±10 to ±50 ppm Digitally-controlled XO
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | TRI-STATE; ENABLE/DISABLE FUNCTION | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 10% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 80.37225 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Oscillator Type | LVCMOS | |
| Output Load | 15 pF | |
| Physical Dimension | 3.2mm x 2.5mm x 0.75mm | |
| Rise Time-Max | 2 ns | |
| Supply Current-Max | 34 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Technology | LVCMOS |
