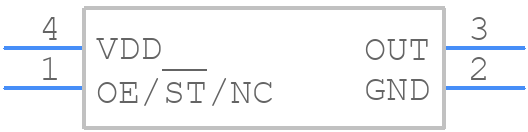

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT1602BI-22-33E-25.000000 by SiTime Corporation
Results Overview of SIT1602BI-22-33E-25.000000 by SiTime Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SIT1602BI-22-33E-25.000000 Information
SIT1602BI-22-33E-25.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT1602BI-22-33E-25.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1473-SIT1602BI-22-33E-25.000000-ND
|
DigiKey | MEMS OSC XO 25.0000MHZ H/LV-CMOS Min Qty: 1 Lead time: 26 Weeks Container: Strip | Temporarily Out of Stock |
|
$0.8436 / $1.4800 | Buy Now |
|
DISTI #
86479894
|
Verical | Oscillator MEMS 25MHz ±25ppm (Stability) 15pF HCMOS/LVCMOS 55% 3.3V 4-Pin PQFN SMD Bulk RoHS: Compliant Min Qty: 124 Package Multiple: 1 Date Code: 2406 | Americas - 50040 |
|
$0.4695 / $0.5728 | Buy Now |
|
DISTI #
SIT1602BI-22-33E-25.000000
|
SiTime Corporation | Low Power, Standard Frequency Oscillator Package Multiple: 1 | 62255 |
|
$0.6510 / $2.5220 | Buy Now |
|
|
SEMIX | Low Power, Standard Frequency Oscillator | 27500 |
|
$0.5273 / $1.1839 | Buy Now |
Part Details for SIT1602BI-22-33E-25.000000
SIT1602BI-22-33E-25.000000 CAD Models
SIT1602BI-22-33E-25.000000 Part Data Attributes
|
|
SIT1602BI-22-33E-25.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT1602BI-22-33E-25.000000
SiTime Corporation
LVCMOS Output Clock Oscillator, 25MHz Nom,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Package Description | PQFN-4 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS/HCMOS | |
| Output Load | 15 pF | |
| Output Low Current-Max | 4 mA | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | DILCC4,.1,83 | |
| Physical Dimension | 3.2mm x 2.5mm x 0.85mm | |
| Rise Time-Max | 2 ns | |
| Screening Level | MIL-STD-883F | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
Alternate Parts for SIT1602BI-22-33E-25.000000
This table gives cross-reference parts and alternative options found for SIT1602BI-22-33E-25.000000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIT1602BI-22-33E-25.000000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SIT1602BI-22-33E-25.000000 Frequently Asked Questions (FAQ)
-
SiTime provides a recommended PCB layout guide on their website, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise.
-
The SIT1602BI-22-33E-25.000000 is a fixed-frequency oscillator, so it does not require configuration for a specific frequency. However, SiTime offers a frequency customization service for their oscillators, which allows customers to specify a custom frequency.
-
The SIT1602BI-22-33E-25.000000 has an operating temperature range of -40°C to +85°C, as specified in the datasheet. However, SiTime also offers extended temperature range options for their oscillators, which can be specified at the time of ordering.
-
The SIT1602BI-22-33E-25.000000 has a CMOS output signal, which can be connected directly to a microcontroller or other digital circuitry. However, it's recommended to use a series resistor and/or a buffer circuit to ensure signal integrity and minimize noise.
-
The SIT1602BI-22-33E-25.000000 has a typical power consumption of 10mA, as specified in the datasheet. However, the actual power consumption may vary depending on the specific application and operating conditions.
