Transistors / Power Field-Effect Transistors / SIA469DJ-T1-GE3
Datasheets
SIA469DJ-T1-GE3 by:

Power Field-Effect Transistor,

Part Details for SIA469DJ-T1-GE3 by Vishay Intertechnologies

Results Overview of SIA469DJ-T1-GE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

SIA469DJ-T1-GE3 Information

SIA469DJ-T1-GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for SIA469DJ-T1-GE3

Part # Distributor Description Stock Price Buy
DISTI # 10AC9109
Newark Mosfet, P-Ch, 30V, 12A, 150Deg C, 15.6W, Channel Type:P Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:12A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:3V Rohs Compliant: Yes |Vishay SIA469DJ-T1-GE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 18733
  • 1 $0.1060
  • 10 $0.1060
  • 25 $0.1060
  • 50 $0.1060
$0.1060 Buy Now
DISTI # 20AC3777
Newark P-Channel 30-V (D-S) Mosfet |Vishay SIA469DJ-T1-GE3 RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.1600
  • 10,000 $0.1410
  • 20,000 $0.1260
  • 30,000 $0.1170
  • 50,000 $0.1070
$0.1070 / $0.1600 Buy Now
DISTI # SIA469DJ-T1-GE3
Avnet Americas P-CHANNEL 30-V (D-S) MOSFET - Tape and Reel (Alt: SIA469DJ-T1-GE3) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel 15000
  • 3,000 $0.0963
$0.0963 Buy Now
DISTI # 10AC9109
Avnet Americas P-CHANNEL 30-V (D-S) MOSFET - Product that comes on tape, but is not reeled (Alt: 10AC9109) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack 98 Partner Stock
  • 1 $0.5760
  • 10 $0.3800
  • 25 $0.3250
  • 50 $0.2690
  • 100 $0.2140
$0.2140 / $0.5760 Buy Now
DISTI # 78-SIA469DJ-T1-GE3
Mouser Electronics MOSFETs -30V Vds 20V Vgs PowerPAK SC-70 RoHS: Compliant 119655
  • 1 $0.4700
  • 10 $0.2940
  • 100 $0.1850
  • 500 $0.1690
  • 1,000 $0.1450
  • 3,000 $0.1000
  • 6,000 $0.0970
  • 9,000 $0.0960
$0.0960 / $0.4700 Buy Now
DISTI # E02:0323_11591075
Arrow Electronics Trans MOSFET P-CH 30V 12A 6-Pin PowerPAK SC-70 EP T/R RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 15 Weeks Europe - 6000
  • 6,000 $0.1206
$0.1206 Buy Now
DISTI # 29497297
Verical Trans MOSFET P-CH 30V 12A 6-Pin PowerPAK SC-70 EP T/R RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Americas - 6000
  • 6,000 $0.2069
$0.2069 Buy Now
DISTI # 66386410
Verical Trans MOSFET P-CH 30V 12A 6-Pin PowerPAK SC-70 EP T/R RoHS: Compliant Min Qty: 309 Package Multiple: 1 Date Code: 2248 Americas - 2929
  • 309 $0.4510
  • 500 $0.2880
  • 1,000 $0.1770
$0.1770 / $0.4510 Buy Now
DISTI # SIA469DJ-T1-GE3
TTI MOSFETs -30V Vds 20V Vgs PowerPAK SC-70 RoHS: Compliant pbFree: Pb-Free Min Qty: 6000 Package Multiple: 3000 Container: Reel Americas - 0
  • 6,000 $0.0970
$0.0970 Buy Now
DISTI # SIA469DJ-T1-GE3
TME Transistor: P-MOSFET, TrenchFET®, unipolar, -30V, -12A, Idm: -40A Min Qty: 3 2733
  • 3 $0.2630
  • 25 $0.2370
  • 100 $0.2090
  • 500 $0.1880
  • 3,000 $0.1750
$0.1750 / $0.2630 Buy Now
DISTI # SIA469DJ-T1-GE3
IBS Electronics &#xC5, &#x152, &#xBA, &#xC6, &#x2022, &#x2C6, &#xC5, &#xBA, &#x201D, &#xC7, &#xAE, MOSFET P&#xC6, &#xB2, &#x178, &#xC9, &#x81, &#x201C, -30V -12A POWERPAK SC70 Min Qty: 3000 Package Multiple: 1 15000
  • 3,000 $0.1243
  • 6,000 $0.1223
  • 12,000 $0.1202
  • 15,000 $0.1196
  • 45,000 $0.1157
$0.1157 / $0.1243 Buy Now
DISTI # SIA469DJ-T1-GE3
Avnet Asia P-CHANNEL 30-V (D-S) MOSFET (Alt: SIA469DJ-T1-GE3) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days 0
RFQ
DISTI # SIA469DJ-T1-GE3
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2929
  • 5 $0.4510
  • 50 $0.2880
  • 100 $0.1770
  • 200 $0.1760
  • 500 $0.1620
  • 1,000 $0.1390
  • 6,000 $0.1180
$0.1180 / $0.4510 Buy Now
DISTI # SIA469DJ-T1-GE3
EBV Elektronik PCHANNEL 30V DS MOSFET (Alt: SIA469DJ-T1-GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days EBV - 3000
Buy Now
LCSC 30V 12A 0.026510V5A 10W 3V 1 piece P-channel PowerPAK-SC-70-6-Single MOSFETs ROHS 1250
  • 5 $0.2812
  • 50 $0.2194
  • 150 $0.1928
  • 500 $0.1598
  • 3,000 $0.1291
  • 6,000 $0.1203
$0.1203 / $0.2812 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 3000
  • 3,000 $0.2550
$0.2550 Buy Now
Vyrian Transistors 37569
RFQ

Part Details for SIA469DJ-T1-GE3

SIA469DJ-T1-GE3 CAD Models

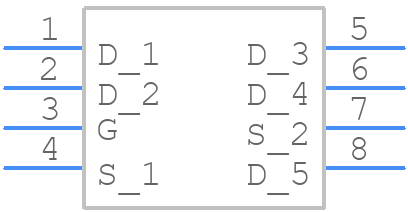

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

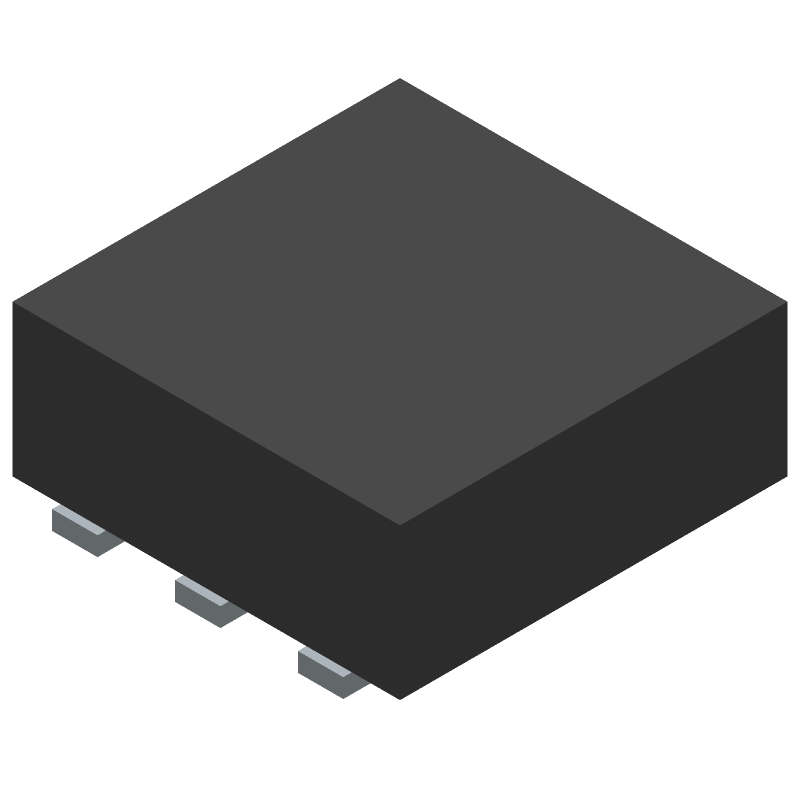

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SIA469DJ-T1-GE3 Part Data Attributes

Parametric Data
SIA469DJ-T1-GE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SIA469DJ-T1-GE3 Vishay Intertechnologies Power Field-Effect Transistor,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description SC-70, 6 PIN
Reach Compliance Code unknown
ECCN Code EAR99
Factory Lead Time 17 Weeks, 3 Days
Date Of Intro 2017-03-22
Samacsys Manufacturer Vishay
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 30 V
Drain Current-Max (ID) 12 A
Drain-source On Resistance-Max 0.0265 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss) 115 pF
JESD-30 Code S-PDSO-N6
Number of Elements 1
Number of Terminals 6
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape SQUARE
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type P-CHANNEL
Power Dissipation-Max (Abs) 15.6 W
Pulsed Drain Current-Max (IDM) 40 A
Surface Mount YES
Terminal Form NO LEAD
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Turn-off Time-Max (toff) 60 ns
Turn-on Time-Max (ton) 50 ns

SIA469DJ-T1-GE3 Related Parts

SIA469DJ-T1-GE3 Frequently Asked Questions (FAQ)

  • Store the devices in a dry, cool place, away from direct sunlight, and avoid exposure to moisture, dust, and extreme temperatures.

  • Yes, SIA469DJ-T1-GE3 is a high-reliability device, suitable for use in demanding applications, including aerospace, defense, and industrial control systems.

  • Use proper ESD handling procedures, such as wearing an ESD strap, using ESD-safe work surfaces, and storing devices in ESD-protective packaging.

  • Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 183°C 60s.

  • Yes, SIA469DJ-T1-GE3 is rated for operation up to 150°C, making it suitable for high-temperature applications.
