Transistors / Power Field-Effect Transistors / SI7456DDP-T1-GE3
Datasheets
SI7456DDP-T1-GE3 by:

Power Field-Effect Transistor, 27.8A I(D), 100V, 0.023ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HALOGEN FREE AND ROHS COMPLIANT, POWERPAK, SOP-8

Part Details for SI7456DDP-T1-GE3 by Vishay Intertechnologies

Results Overview of SI7456DDP-T1-GE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

SI7456DDP-T1-GE3 Information

SI7456DDP-T1-GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for SI7456DDP-T1-GE3

Part # Distributor Description Stock Price Buy
DISTI # 63W4148
Newark Mosfet, N-Ch, 100V, 27.8A, Powerpak So, Channel Type:N Channel, Drain Source Voltage Vds:100V, Continuous Drain Current Id:27.8A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:2.8V Rohs Compliant: Yes |Vishay SI7456DDP-T1-GE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 6867
  • 1 $0.9160
  • 10 $0.9160
  • 25 $0.8400
  • 50 $0.8400
  • 100 $0.8400
  • 500 $0.7750
$0.7750 / $0.9160 Buy Now
DISTI # 63W4148
Avnet Americas Power MOSFET, N Channel, 100 V, 27.8 A, 0.017 ohm, PowerPAK SO, Surface Mount - Bulk (Alt: 63W4148) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk 416 Partner Stock
  • 1 $1.7500
  • 10 $1.3000
  • 25 $1.2000
  • 50 $1.1100
  • 100 $1.0100
$1.0100 / $1.7500 Buy Now
DISTI # SI7456DDP-T1-GE3
Avnet Americas Power MOSFET, N Channel, 100 V, 27.8 A, 0.017 ohm, PowerPAK SO, Surface Mount - Tape and Reel (Alt: SI7456DDP-T1-GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.6750
  • 6,000 $0.6642
  • 12,000 $0.6538
  • 18,000 $0.6429
  • 24,000 $0.6353
$0.6353 / $0.6750 Buy Now
DISTI # 78-SI7456DDP-T1-GE3
Mouser Electronics MOSFETs 100V Vds 20V Vgs PowerPAK SO-8 RoHS: Compliant 9374
  • 1 $1.4100
  • 10 $1.1600
  • 25 $1.1500
  • 100 $0.9440
  • 500 $0.8430
  • 1,000 $0.7550
  • 3,000 $0.7010
$0.7010 / $1.4100 Buy Now
DISTI # V72:2272_09215658
Arrow Electronics Trans MOSFET N-CH 100V 27.8A 8-Pin PowerPAK SO EP T/R Min Qty: 1 Package Multiple: 1 Lead time: 28 Weeks Date Code: 2332 Container: Cut Strips Americas - 1455
  • 1 $0.9304
  • 10 $0.8573
  • 25 $0.8464
  • 50 $0.8379
  • 100 $0.7749
  • 250 $0.7671
  • 500 $0.7460
  • 1,000 $0.7248
$0.7248 / $0.9304 Buy Now
DISTI # 69863775
Verical Trans MOSFET N-CH 100V 27.8A 8-Pin PowerPAK SO EP T/R Min Qty: 9 Package Multiple: 1 Date Code: 2332 Americas - 1455
  • 9 $0.8573
  • 25 $0.8464
  • 50 $0.8379
  • 100 $0.7749
  • 250 $0.7671
  • 500 $0.7460
  • 1,000 $0.7248
$0.7248 / $0.8573 Buy Now
DISTI # SI7456DDP-T1-GE3
TTI MOSFETs 100V Vds 20V Vgs PowerPAK SO-8 pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 3000
In Stock
  • 3,000 $0.6940
  • 6,000 $0.6800
$0.6800 / $0.6940 Buy Now
DISTI # STDMOS1281
Rutronik N-CH 100V 27,8A 23mOhm PP SO8 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel Stock DE - 39000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 3,000 $0.6756
$0.6756 Buy Now
DISTI # SI7456DDP-T1-GE3
EBV Elektronik Power MOSFET N Channel 100 V 278 A 0017 ohm PowerPAK SO Surface Mount (Alt: SI7456DDP-T1-GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 29 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Transistors 6282
RFQ

Part Details for SI7456DDP-T1-GE3

SI7456DDP-T1-GE3 CAD Models

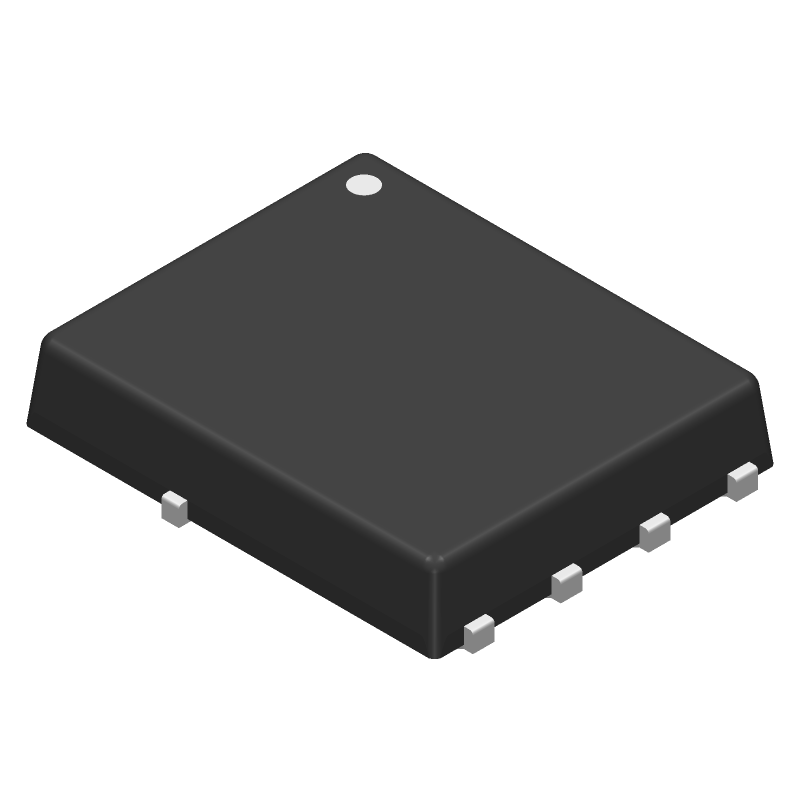

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SI7456DDP-T1-GE3 Part Data Attributes

Parametric Data
SI7456DDP-T1-GE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SI7456DDP-T1-GE3 Vishay Intertechnologies Power Field-Effect Transistor, 27.8A I(D), 100V, 0.023ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HALOGEN FREE AND ROHS COMPLIANT, POWERPAK, SOP-8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description HALOGEN FREE AND ROHS COMPLIANT, POWERPAK, SOP-8
Reach Compliance Code not_compliant
ECCN Code EAR99
Factory Lead Time 28 Weeks
Samacsys Manufacturer Vishay
Avalanche Energy Rating (Eas) 11.2 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 100 V
Drain Current-Max (ID) 27.8 A
Drain-source On Resistance-Max 0.023 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-C5
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 5
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) 70 A
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON

SI7456DDP-T1-GE3 Related Parts

SI7456DDP-T1-GE3 Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the SI7456DDP-T1-GE3 is a standard SOIC-8 package with a 1.27mm pitch. A recommended land pattern is available in the Vishay Intertechnologies' application note AN81142.

  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Vishay Intertechnologies' application note AN81142. Additionally, use a solder with a melting point below 260°C to prevent damage to the device.

  • The SI7456DDP-T1-GE3 has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.

  • Yes, the SI7456DDP-T1-GE3 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is PPAP capable. However, it's essential to consult with Vishay Intertechnologies' application engineers to ensure the device meets the specific requirements of your application.

  • To prevent electrostatic discharge (ESD) damage, handle the SI7456DDP-T1-GE3 with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in a conductive bag or tube when not in use.
