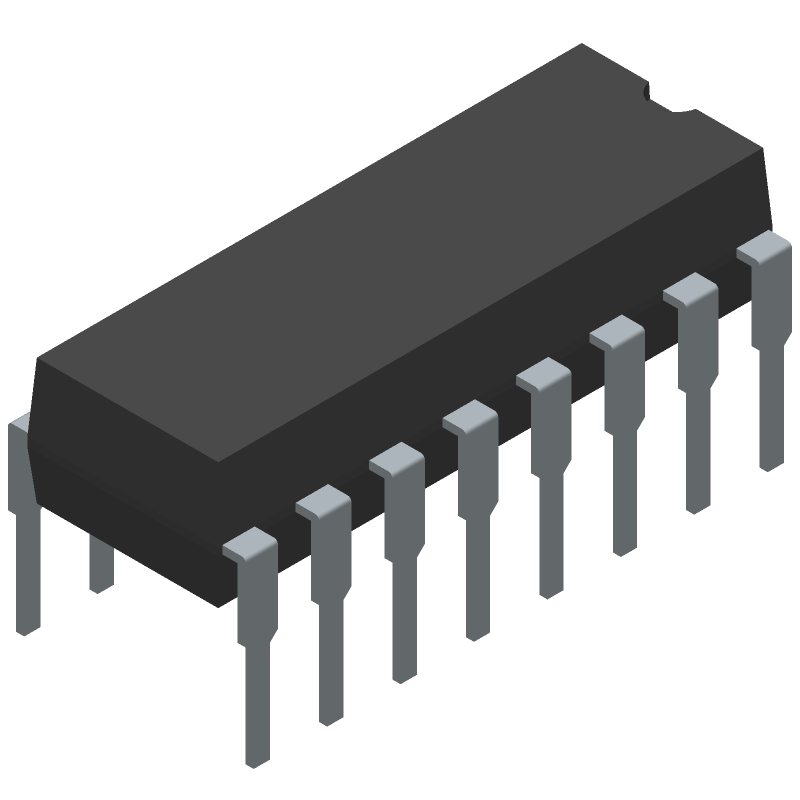

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SG3525AN by Microchip Technology Inc
Results Overview of SG3525AN by Microchip Technology Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
SG3525AN Information
SG3525AN by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for SG3525AN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SG3525AN-ND
|
DigiKey | IC REG CTRLR PUSH-PULL 16DIP Lead time: 7 Weeks Container: Tube | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
SG3525AN
|
Microchip Technology Inc | Voltage Mode PWMs Dual Sink/Source Outputs - 100Hz to 500KHz oscillator range, PDIP, Projected EOL: 2044-01-29 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$3.5300 / $7.4200 | Buy Now |
|
|
Onlinecomponents.com | Voltage Mode PWM Controller 400mA 350kHz 16-Pin PDIP RoHS: Compliant | 0 |
|
$5.0800 / $7.3400 | Buy Now |
|
|
Master Electronics | Voltage Mode PWM Controller 400mA 350kHz 16-Pin PDIP RoHS: Compliant | 0 |
|
$5.0800 / $7.3400 | Buy Now |
Part Details for SG3525AN
SG3525AN CAD Models
SG3525AN Part Data Attributes
|
|
SG3525AN
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SG3525AN
Microchip Technology Inc
Switching Controller, 0.5A, 500kHz Switching Freq-Max, BIPolar, PDIP16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | DIP-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 35 V | |
| Input Voltage-Min | 8 V | |
| Input Voltage-Nom | 20 V | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 19.18 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 5.33 mm | |
| Surface Mount | NO | |
| Switcher Configuration | PUSH-PULL | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.62 mm |
Alternate Parts for SG3525AN
This table gives cross-reference parts and alternative options found for SG3525AN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SG3525AN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-8951103EX | Unitrode Corp (RETIRED) | Check for Price | Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, CDIP16, DIP-16 | SG3525AN vs 5962-8951103EX |
| UC1525AJ | Texas Instruments | $8.8038 | Regulating Pulse Width Modulators 16-CDIP -55 to 125 | SG3525AN vs UC1525AJ |
| M38510/12602BEA | Unitrode Corp (RETIRED) | Check for Price | Switching Controller, Voltage-mode, 0.2A, 300kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC, DIP-16 | SG3525AN vs M38510/12602BEA |
| 5962-8951101EX | Linear Technology | Check for Price | IC 0.5 A SWITCHING CONTROLLER, 350 kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16, Switching Regulator or Controller | SG3525AN vs 5962-8951101EX |
| UC3525AJ | Texas Instruments | Check for Price | Regulating Pulse Width Modulators 16-CDIP 0 to 70 | SG3525AN vs UC3525AJ |
| UC2525AN | Texas Instruments | $1.2368 | 35V, Dual 0.4A 400KHz PWM controller with -25C to 85C 16-PDIP -25 to 85 | SG3525AN vs UC2525AN |
| UC3525ANG4 | Texas Instruments | Check for Price | 35V, Dual 0.4A 400KHz PWM controller with 0C to 70C 16-PDIP 0 to 70 | SG3525AN vs UC3525ANG4 |
| SG2525AJ | Motorola Mobility LLC | Check for Price | 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16 | SG3525AN vs SG2525AJ |
| SG1525AJ | Motorola Mobility LLC | Check for Price | 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16 | SG3525AN vs SG1525AJ |
| M38510/12602BEA | Linfinity Microelectronics | Check for Price | Switching Controller, Voltage-mode, 0.2A, 300kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC, DIP-16 | SG3525AN vs M38510/12602BEA |
SG3525AN Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the SG3525AN is 40V. Exceeding this voltage may damage the device.
-
To ensure stable operation, ensure that the input voltage is within the recommended range, the output voltage is set correctly, and the feedback loop is properly compensated. Additionally, ensure that the device is properly decoupled and that the layout is designed to minimize noise and electromagnetic interference (EMI).
-
The soft-start pin (SS) is used to slowly ramp up the output voltage during startup, reducing inrush current and preventing voltage overshoot. This helps to prevent damage to the device and other components in the power supply.
-
The frequency of the SG3525AN oscillator can be calculated using the formula: f = 1 / (2 * R1 * C1), where R1 is the resistance of the oscillator resistor and C1 is the capacitance of the oscillator capacitor.
-
The maximum power dissipation of the SG3525AN is 1.5W. Exceeding this power dissipation may cause the device to overheat and fail.
