SFW26R-1STE1LF by:

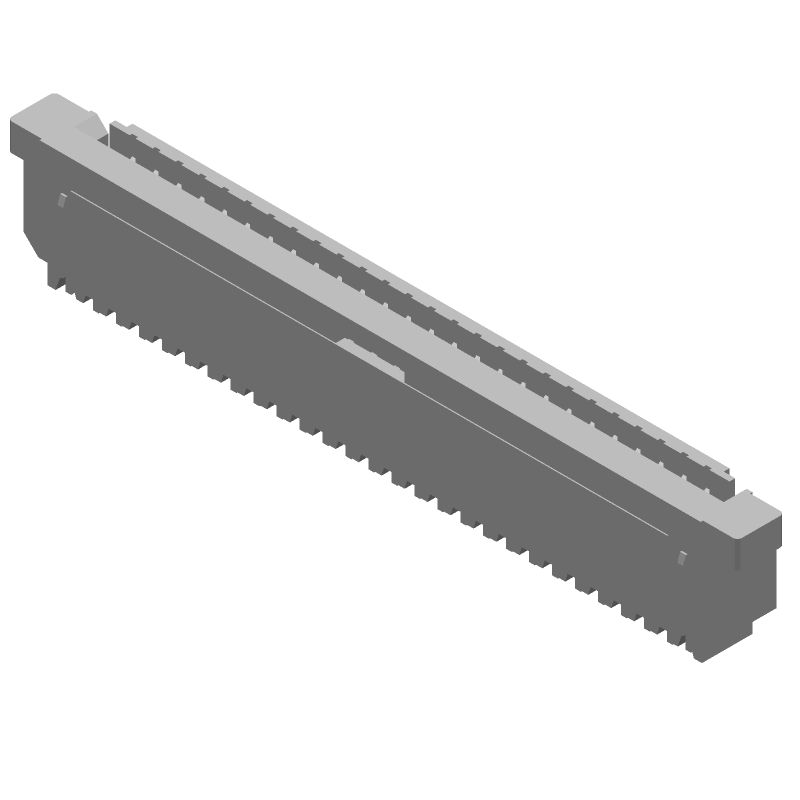

1.00mm Flex Connector, SFW-R series, 26 Position, Bottom side Contact, Side Entry Surface Mount ZIF Connector, Lead Free.

Part Details for SFW26R-1STE1LF by Amphenol Communications Solutions

Results Overview of SFW26R-1STE1LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SFW26R-1STE1LF Information

SFW26R-1STE1LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SFW26R-1STE1LF

Part # Distributor Description Stock Price Buy
DISTI # 65AC3112
Newark Connector, Ffc/Fpc, 26Pos, 1 Row, 1Mm, Pitch Spacing:1Mm, No. Of Contacts:26Contacts, Gender:Receptacle, Product Range:Fci Sfw-R Series, Contact Termination Type:Surface Mount, Contact Position:Bottom, No. Of Rows:1 Row Rohs Compliant: Yes |Amphenol Communications Solutions SFW26R-1STE1LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3142
  • 1 $0.4430
  • 25 $0.4430
  • 50 $0.4430
  • 100 $0.4430
  • 250 $0.4430
  • 500 $0.4430
  • 1,000 $0.4430
$0.4430 Buy Now
DISTI # 62K5627
Newark Connector, Ffc/Fpc, 26Pos, 1 Row, 1Mm, Pitch Spacing:1Mm, No. Of Contacts:26Contacts, Gender:Receptacle, Product Range:Fci Sfw-R Series, Contact Termination Type:Surface Mount, Contact Position:Bottom, No. Of Rows:1 Row Rohs Compliant: Yes |Amphenol Communications Solutions SFW26R-1STE1LF RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.5250
  • 6,000 $0.5050
  • 10,000 $0.4920
$0.4920 / $0.5250 Buy Now
DISTI # 2266-SFW26R-1STE1LF-ND
DigiKey CONN FFC FPC BOTTOM 26POS 1MM RA Min Qty: 1 Lead time: 10 Weeks Container: Box MARKETPLACE PRODUCT 3957
In Stock
  • 2,000 $0.4700
$0.4700 Buy Now
DISTI # 609-1921-1-ND
DigiKey CONN FFC FPC BOTTOM 26POS 1MM RA Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.9000
  • 10 $0.7640
  • 25 $0.7164
  • 50 $0.6820
  • 100 $0.6494
  • 250 $0.6087
  • 500 $0.5796
  • 1,000 $0.5519
  • 2,000 $0.5256
  • 4,000 $0.5005
  • 6,000 $0.4864
  • 10,000 $0.4692
  • 14,000 $0.4582
  • 20,000 $0.4468
$0.4468 / $0.9000 Buy Now
Onlinecomponents.com 1.00mm Flex Connector - SFW-R series - 26 Position - Bottom side Contact - Side Entry Surface Mount ZIF Connector - Lead Free. RoHS: Compliant 3957 Partner Stock
  • 2,000 $0.4903
  • 4,000 $0.4702
  • 6,000 $0.4631
  • 8,000 $0.4561
  • 10,000 $0.4493
  • 16,000 $0.4426
  • 26,000 $0.4359
$0.4359 / $0.4903 Buy Now
Master Electronics 1.00mm Flex Connector - SFW-R series - 26 Position - Bottom side Contact - Side Entry Surface Mount ZIF Connector - Lead Free. RoHS: Compliant 3957 Partner Stock
  • 2,000 $0.4903
  • 4,000 $0.4702
  • 6,000 $0.4631
  • 8,000 $0.4561
  • 10,000 $0.4493
  • 16,000 $0.4426
  • 26,000 $0.4359
$0.4359 / $0.4903 Buy Now

Part Details for SFW26R-1STE1LF

SFW26R-1STE1LF Part Data Attributes

Parametric Data
SFW26R-1STE1LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
SFW26R-1STE1LF Amphenol Communications Solutions 1.00mm Flex Connector, SFW-R series, 26 Position, Bottom side Contact, Side Entry Surface Mount ZIF Connector, Lead Free.
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 26
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Amphenol Communications Solutions
Connector Type FFC/FPC CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Tin (Sn)
Contact Gender FEMALE
Contact Material NOT SPECIFIED
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.039 inch
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 1
Option GENERAL PURPOSE
Terminal Pitch 1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 26
UL Flammability Code 94V-0

Alternate Parts for SFW26R-1STE1LF

This table gives cross-reference parts and alternative options found for SFW26R-1STE1LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SFW26R-1STE1LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SFW26R-1STE1LF Amphenol FCi Check for Price Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE SFW26R-1STE1LF vs SFW26R-1STE1LF
