Resistors / Metal Film Resistors / SFR2500001000JA500
Datasheets
SFR2500001000JA500 by:

Fixed Resistor, Metal Film, 0.4W, 100ohm, 250V, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED

Part Details for SFR2500001000JA500 by Vishay Intertechnologies

Results Overview of SFR2500001000JA500 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SFR2500001000JA500 Information

SFR2500001000JA500 by Vishay Intertechnologies is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for SFR2500001000JA500

Part # Distributor Description Stock Price Buy
DISTI # 96K5296
Newark Through Hole Metal Film Resistor, Sfr125 Series, 100 Ohm, 400 Mw, - 5%, 250 V, Axial Leaded Rohs Compliant: Yes |Vishay SFR2500001000JA500 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Bulk 3872
  • 10 $0.0600
  • 25 $0.0490
  • 50 $0.0390
  • 100 $0.0280
  • 500 $0.0260
  • 1,000 $0.0230
$0.0230 / $0.0600 Buy Now
DISTI # SFR2500001000JA500
Avnet Americas SFR25 5% A5 100R (Alt: SFR2500001000JA500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days 0
  • 5,000 $0.0184
  • 10,000 $0.0183
  • 20,000 $0.0182
  • 30,000 $0.0181
  • 40,000 $0.0181
$0.0181 / $0.0184 Buy Now
DISTI # 594-SFR2500001000JA5
Mouser Electronics Metal Film Resistors - Through Hole 0.4watt 100ohms 5% RoHS: Compliant 15861
  • 1 $0.1300
  • 10 $0.0790
  • 25 $0.0580
  • 100 $0.0520
  • 250 $0.0400
  • 1,000 $0.0350
  • 2,500 $0.0260
  • 10,000 $0.0220
  • 20,000 $0.0200
$0.0200 / $0.1300 Buy Now
Future Electronics SFR25 5% A5 100R RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks Container: Ammo Pack 5000
Ammo Pack
  • 5,000 $0.0194
  • 15,000 $0.0190
  • 20,000 $0.0188
  • 50,000 $0.0184
  • 75,000 $0.0181
$0.0181 / $0.0194 Buy Now
DISTI # SFR2500001000JA500
TTI Metal Film Resistors - Through Hole 0.4watt 100ohms 5% RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Ammo Pack Americas - 0
  • 5,000 $0.0209
  • 10,000 $0.0205
  • 20,000 $0.0198
  • 25,000 $0.0181
  • 40,000 $0.0178
$0.0178 / $0.0209 Buy Now
Future Electronics SFR25 5% A5 100R Min Qty: 5000 Package Multiple: 5000 5000
null
  • 5,000 $0.0310
  • 10,000 $0.0305
  • 15,000 $0.0302
  • 20,000 $0.0300
  • 25,000 $0.0293
$0.0293 / $0.0310 Buy Now
DISTI # SFR2500001000JA500
Avnet Abacus SFR25 5 A5 100R (Alt: SFR2500001000JA500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for SFR2500001000JA500

SFR2500001000JA500 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

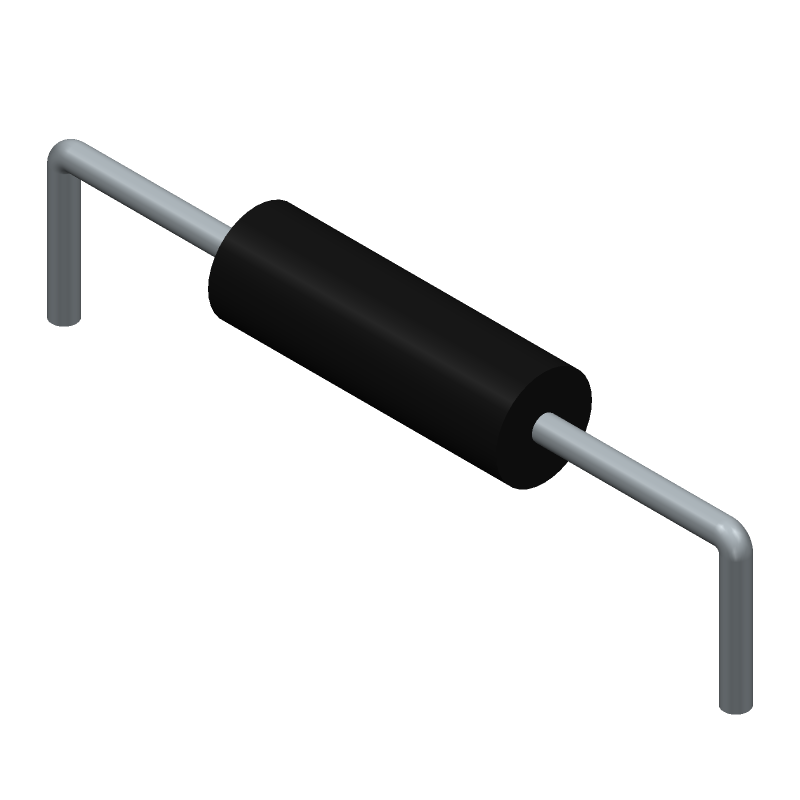

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SFR2500001000JA500 Part Data Attributes

Parametric Data
SFR2500001000JA500 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SFR2500001000JA500 Vishay Intertechnologies Fixed Resistor, Metal Film, 0.4W, 100ohm, 250V, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
Factory Lead Time 14 Weeks
Samacsys Manufacturer Vishay
Additional Feature RATED AC VOLTAGE (V) : 250
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.58 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.5 mm
Package Length 6.5 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method AMMO PACK
Rated Power Dissipation (P) 0.4 W
Rated Temperature 70 °C
Resistance 100 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 5%
Working Voltage 250 V

Alternate Parts for SFR2500001000JA500

This table gives cross-reference parts and alternative options found for SFR2500001000JA500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SFR2500001000JA500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SFR2500001000JR500 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Film, 0.4W, 100ohm, 250V, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED SFR2500001000JA500 vs SFR2500001000JR500
SFR2500001000JA100 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Film, 0.4W, 100ohm, 250V, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED SFR2500001000JA500 vs SFR2500001000JA100
SFR2500001000JA100 Vishay BCcomponents Check for Price RESISTOR, METAL FILM, 0.4 W, 5 %, 100 ppm, 100 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT SFR2500001000JA500 vs SFR2500001000JA100
SFR2500001000JR500 Vishay BCcomponents Check for Price RESISTOR, METAL FILM, 0.4 W, 5 %, 100 ppm, 100 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT SFR2500001000JA500 vs SFR2500001000JR500

SFR2500001000JA500 Related Parts

SFR2500001000JA500 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for SFR2500001000JA500 is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.

  • Yes, the SFR2500001000JA500 is a thick-film resistor designed for high-frequency applications up to 100 MHz. However, it's essential to consider the self-resonance frequency and parasitic inductance when using it in high-frequency circuits.

  • The SFR2500001000JA500 has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's essential to derate the power according to the temperature derating curve provided in the datasheet to ensure reliable operation.

  • The SFR2500001000JA500 has an MSL rating of 1, which means it can withstand normal humidity levels and does not require special handling or storage precautions.

  • Yes, the SFR2500001000JA500 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
