SFM-140-L2-S-D-LC by: Samtec Inc

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket,

Part Details for SFM-140-L2-S-D-LC by Samtec Inc

Results Overview of SFM-140-L2-S-D-LC by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SFM-140-L2-S-D-LC Information

SFM-140-L2-S-D-LC by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SFM-140-L2-S-D-LC

Part # Distributor Description Stock Price Buy
DISTI # 44P3055
Newark Connector, Socket, 80 Position, 1.27Mm, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:80Contacts, Connector Mounting:Surface Mount, Product Range:Sfm Series Rohs Compliant: Yes |Samtec SFM-140-L2-S-D-LC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 38
  • 1 $12.9600
  • 10 $11.9100
  • 25 $10.9700
  • 50 $10.0200
  • 100 $9.0300
$9.0300 / $12.9600 Buy Now
DISTI # 3937-SFM-140-L2-S-D-LC-ND
DigiKey CONN RCPT 80POS 0.05 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT 588
In Stock
  • 1 $72.8700
$72.8700 Buy Now
DISTI # 2266-SFM-140-L2-S-D-LC-ND
DigiKey CONN RCPT 80POS 0.05 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT 100
In Stock
  • 4 $18.1600
  • 100 $14.0900
$14.0900 / $18.1600 Buy Now
DISTI # SAM10699-ND
DigiKey CONN RCPT 80POS 0.05 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 6
In Stock
  • 1 $13.3600
  • 10 $12.2790
  • 25 $11.2888
  • 50 $10.3252
  • 100 $9.3072
  • 250 $8.3939
  • 500 $8.1467
$8.1467 / $13.3600 Buy Now
DISTI # SFM-140-L2-S-D-LC
Avnet Americas PCB Receptacle, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 80 Contacts, Surface Mount - Rail/Tube (Alt: SFM-140-L2-S-D-LC) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 875 Factory Stock
  • 1 $12.7008
  • 10 $11.6122
  • 30 $9.3091
  • 50 $9.0527
  • 100 $8.6688
$8.6688 / $12.7008 Buy Now
DISTI # 200-SFM140L2SDLC
Mouser Electronics Headers & Wire Housings High-Reliability Tiger Eye(TM) Socket Strips RoHS: Compliant 111
  • 1 $13.3600
  • 10 $12.2800
  • 30 $11.2900
  • 50 $10.3300
  • 100 $9.3100
  • 250 $8.3900
  • 500 $7.6000
  • 1,000 $6.7800
$6.7800 / $13.3600 Buy Now
Onlinecomponents.com .050" Tiger Eye™ High-Reliability Socket Strip RoHS: Compliant 100 Partner Stock
  • 5 $12.8900
  • 25 $11.6800
  • 50 $11.1600
  • 100 $10.0400
  • 250 $8.8000
  • 500 $7.9600
  • 1,000 $7.1800
$7.1800 / $12.8900 Buy Now
DISTI # 85038067
Verical Conn Socket Strip SKT 80 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 875
  • 1 $13.3600
  • 10 $12.2800
  • 25 $11.2900
  • 50 $10.3300
  • 100 $9.3100
  • 250 $8.3900
  • 500 $7.6000
  • 1,000 $6.7800
$6.7800 / $13.3600 Buy Now
DISTI # 88115891
Verical Conn Socket Strip SKT 80 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Americas - 100
  • 1 $16.0600
  • 100 $12.4600
$12.4600 / $16.0600 Buy Now
Bristol Electronics   100
RFQ
DISTI # 5cd91953cd7c1c4c38715e39
Samtec High-Reliability Tiger Eye™ Socket Strips, .050" Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 875
  • 1 $13.3600
  • 10 $12.2800
  • 25 $11.2900
  • 50 $10.3300
  • 100 $9.3100
  • 250 $8.3900
  • 500 $7.6000
  • 1,000 $6.7800
$6.7800 / $13.3600 Buy Now
DISTI # SFM-140-L2-S-D-LC
IBS Electronics HEADERS &amp, WIRE HOUSINGS HIGH-RELIABILITY TIGER EYE SOCKET STRIPS .050 PITCH Min Qty: 8 Package Multiple: 1 100
  • 8 $16.0625
  • 100 $12.4625
$12.4625 / $16.0625 Buy Now
Powell Electronics .050 Tiger Eye High-Reliability Skt Stri Min Qty: 1 578
  • 1 $13.3600
  • 10 $12.2800
  • 25 $11.2900
  • 50 $10.3300
  • 100 $9.3100
$9.3100 / $13.3600 Buy Now
DISTI # 000000000000061378
Sager Headers & Wire Housings High-Reliability Tiger Eye Socket Strips, .050 Pitch Min Qty: 1 875
  • 1 $13.3600
  • 10 $12.2800
  • 25 $11.2900
  • 50 $10.3300
  • 100 $9.3100
  • 250 $8.3900
$8.3900 / $13.3600 Buy Now
DISTI # SFM-140-L2-S-D-LC
Avnet Abacus PCB Receptacle BoardtoBoard WiretoBoard 127 mm 2 Rows 80 Contacts Surface Mount (Alt: SFM-140-L2-S-D-LC) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 157
  • 1 $11.5400
  • 100 $8.6500
  • 1,000 $7.5000
$7.5000 / $11.5400 Buy Now
Master Electronics .050" Tiger Eye™ High-Reliability Socket Strip RoHS: Compliant 100 Partner Stock
  • 5 $12.8900
  • 25 $11.6800
  • 50 $11.1600
  • 100 $10.0400
  • 250 $8.8000
  • 500 $7.9600
  • 1,000 $7.1800
$7.1800 / $12.8900 Buy Now

Part Details for SFM-140-L2-S-D-LC

SFM-140-L2-S-D-LC CAD Models

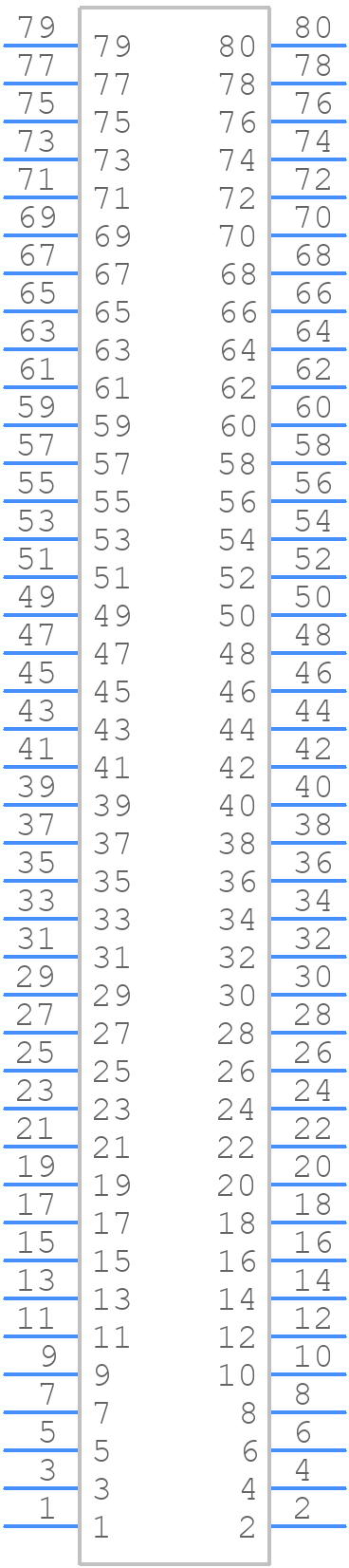

  • Part Symbol
