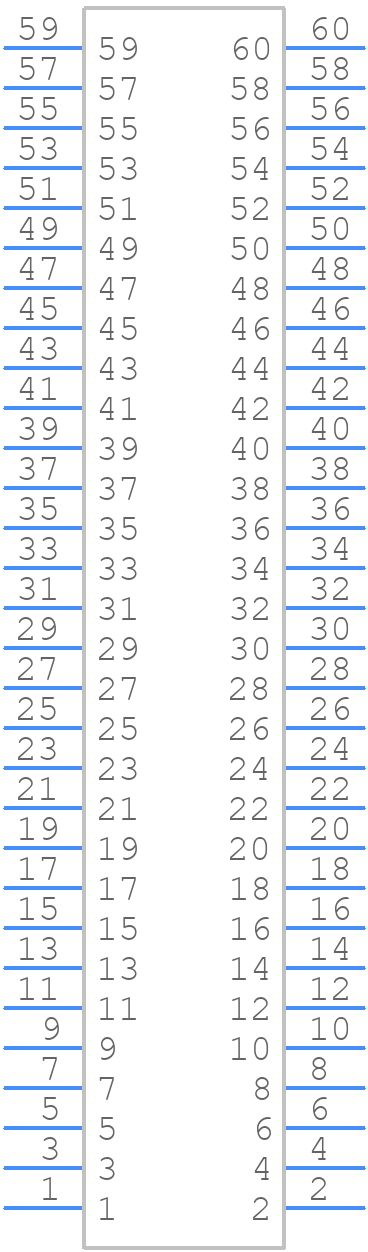

Part Symbol
-

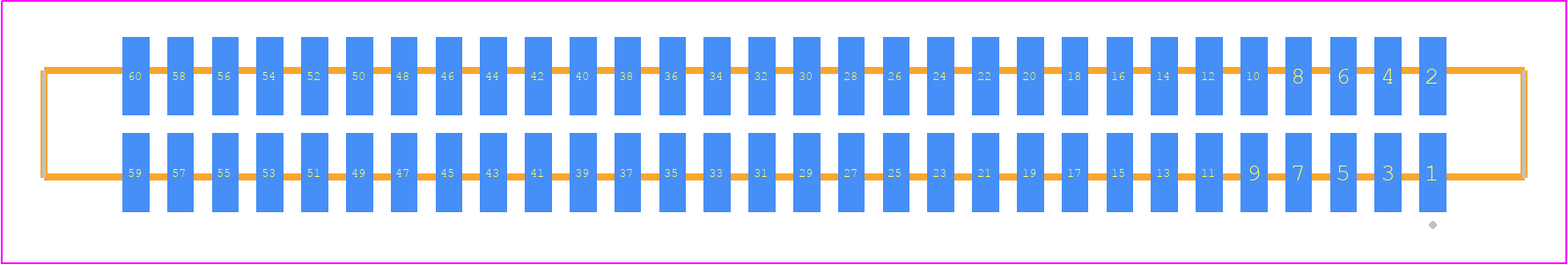

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SFM-130-L2-S-D-P-TR by Samtec Inc
Results Overview of SFM-130-L2-S-D-P-TR by Samtec Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SFM-130-L2-S-D-P-TR Information
SFM-130-L2-S-D-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for SFM-130-L2-S-D-P-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97P6374
|
Newark | High-Reliability Tiger Eye Socket Strips |Samtec SFM-130-L2-S-D-P-TR RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
SFM-130-L2-S-D-P-TR-ND
|
DigiKey | CONN RCPT 60POS 0.05 GOLD SMD Min Qty: 425 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.0300 | Buy Now |
|
DISTI #
SFM-130-L2-S-D-P-T
|
Avnet Americas | - Tape and Reel (Alt: SFM-130-L2-S-D-P-T) RoHS: Compliant Min Qty: 425 Package Multiple: 425 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$5.5142 / $7.2360 | Buy Now |
|
DISTI #
200-SFM130L2SDPTR
|
Mouser Electronics | Headers & Wire Housings High-Reliability Tiger Eye(TM) Socket Strips RoHS: Compliant | 0 |
|
$6.3800 / $7.0300 | Order Now |
|
|
Onlinecomponents.com | .050" Tiger Eye™ High-Reliability Socket Strip RoHS: Compliant | 0 |
|
$6.0300 / $10.5500 | Buy Now |
|
DISTI #
5cd9187dcd7c1c4c38706b00
|
Samtec | High-Reliability Tiger Eye™ Socket Strips, .050" Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 6 Days Container: Tape & Reel | 0 |
|
$5.7200 / $11.1500 | Buy Now |
|
DISTI #
000000000000145815
|
Sager | Headers & Wire Housings High-Reliability Tiger Eye Socket Strips, .050 Pitch Min Qty: 1 | 0 |
|
$7.0300 / $11.1500 | Buy Now |
|
|
Master Electronics | .050" Tiger Eye™ High-Reliability Socket Strip RoHS: Compliant | 0 |
|
$6.0300 / $10.5500 | Buy Now |
Part Details for SFM-130-L2-S-D-P-TR
SFM-130-L2-S-D-P-TR CAD Models
SFM-130-L2-S-D-P-TR Part Data Attributes
|
|
SFM-130-L2-S-D-P-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
SFM-130-L2-S-D-P-TR
Samtec Inc
Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Schedule B Code | 8536.69.40.40 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Description | 60 Position, Dual-Row, High Reliability Socket Strips, 0.050" pitch, Surface Mount | |
| Samacsys Manufacturer | SAMTEC | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 1110.67 | |
| Category CO2 Kg | 3.7 | |
| CO2 | 4109.479 | |
| Compliance Temperature Grade | Military: -55C to +125C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2024-06-27 | |
| CAS Accounted for Wt | 44 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 7440-41-7, 7440-48-4, 7440-02-0 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Additional Feature | TIGER EYE CONTACT | |
| Body Breadth | 0.145 inch | |
| Body Depth | 0.185 inch | |
| Body Length | 1.515 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (30) | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 15 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 10000 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | .3892 N | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mating Contact Row Spacing | 0.05 inch | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.7432 mm | |
| Plating Thickness | 30u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Reference Standard | UL | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 60 | |
| Withdrawl Force-Min | .278 N |
