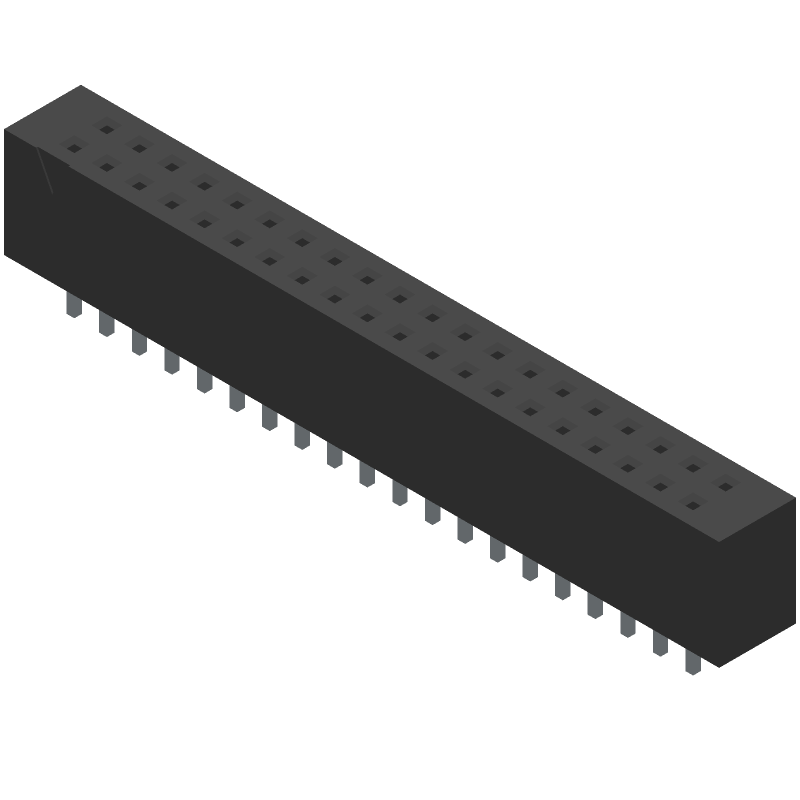

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SFH11-PBPC-D20-ST-BK by Sullins Connector Solutions
Results Overview of SFH11-PBPC-D20-ST-BK by Sullins Connector Solutions
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
SFH11-PBPC-D20-ST-BK Information
SFH11-PBPC-D20-ST-BK by Sullins Connector Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for SFH11-PBPC-D20-ST-BK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
S9200-ND
|
DigiKey | CONN HDR 40POS 0.1 GOLD PCB Min Qty: 1 Lead time: 11 Weeks Container: Tray |
21177 In Stock |
|
$1.0361 / $1.7800 | Buy Now |
|
|
Bristol Electronics | 132 |
|
RFQ | ||
|
|
Quest Components | BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR | 34 |
|
$1.5542 / $1.9428 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR | 1 |
|
$2.8840 | Buy Now |
|
DISTI #
SFH11-PBPC-D20-ST-BK
|
IBS Electronics | 40 POSITION TOTAL DUAL ROW 2.54 MM PITCH STRAIGHT FEMALE BOX HEADER Min Qty: 50 Package Multiple: 1 | 0 |
|
$1.3390 / $1.4040 | Buy Now |
|
|
Vyrian | Connectors | 13716 |
|
RFQ |
Part Details for SFH11-PBPC-D20-ST-BK
SFH11-PBPC-D20-ST-BK CAD Models
SFH11-PBPC-D20-ST-BK Part Data Attributes
|
|
SFH11-PBPC-D20-ST-BK
Sullins Connector Solutions
Buy Now
Datasheet
|
Compare Parts:
SFH11-PBPC-D20-ST-BK
Sullins Connector Solutions
Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SULLINS CONNECTOR SOLUTIONS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Sullins | |
| Body Breadth | 0.276 inch | |
| Body Depth | 0.335 inch | |
| Body Length | 2.2 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | GOLD | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e4 | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.54 mm | |
| Plating Thickness | FLASH inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.126 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 40 |
Alternate Parts for SFH11-PBPC-D20-ST-BK
This table gives cross-reference parts and alternative options found for SFH11-PBPC-D20-ST-BK. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SFH11-PBPC-D20-ST-BK, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SFH11-NBPC-D20-ST-BK | Sullins Connector Solutions | Check for Price | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator | SFH11-PBPC-D20-ST-BK vs SFH11-NBPC-D20-ST-BK |
| SFH11-NPPC-D20-ST-BK | Sullins Connector Solutions | Check for Price | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator | SFH11-PBPC-D20-ST-BK vs SFH11-NPPC-D20-ST-BK |
| SFH11-PPPC-D20-ST-BK | Sullins Connector Solutions | Check for Price | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator | SFH11-PBPC-D20-ST-BK vs SFH11-PPPC-D20-ST-BK |
SFH11-PBPC-D20-ST-BK Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
-
Yes, the SFH11-PBPC-D20-ST-BK is designed to withstand vibrations and is suitable for use in high-vibration environments.
-
The operating temperature range for the SFH11-PBPC-D20-ST-BK is -40°C to 105°C (-40°F to 221°F).
-
Yes, the SFH11-PBPC-D20-ST-BK is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The mating cycle life of the SFH11-PBPC-D20-ST-BK is 500 cycles minimum.
