Diodes / Rectifier Diodes / SF28G-TP
Datasheets
SF28G-TP by: Micro Commercial Components

Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15,

Part Details for SF28G-TP by Micro Commercial Components

Results Overview of SF28G-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

SF28G-TP Information

SF28G-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SF28G-TP

Part # Distributor Description Stock Price Buy
DISTI # SF28G-TP-ND
DigiKey DIODE STANDARD 600V 2A DO15 Min Qty: 4000 Lead time: 16 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 4,000 $0.0522
  • 8,000 $0.0470
  • 12,000 $0.0443
  • 20,000 $0.0413
  • 28,000 $0.0396
  • 40,000 $0.0378
  • 100,000 $0.0341
  • 200,000 $0.0317
$0.0317 / $0.0522 Buy Now
DISTI # 833-SF28G-TP
Mouser Electronics Rectifiers 2A Super Fast Recovery Rectifiers RoHS: Compliant 0
  • 1 $0.3300
  • 10 $0.2280
  • 100 $0.1120
  • 1,000 $0.0650
  • 4,000 $0.0520
  • 8,000 $0.0410
  • 24,000 $0.0370
  • 100,000 $0.0320
$0.0320 / $0.3300 Order Now

Part Details for SF28G-TP

SF28G-TP CAD Models

  • Part Symbol

    Part Symbol

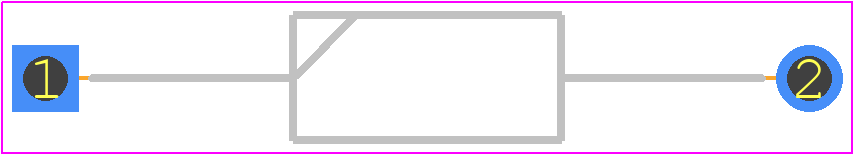

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SF28G-TP Part Data Attributes

Parametric Data
SF28G-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SF28G-TP Micro Commercial Components Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description O-PALF-W2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Additional Feature HIGH RELIABILITY
Application SUPER FAST RECOVERY
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.7 V
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 50 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Output Current-Max 2 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Rep Pk Reverse Voltage-Max 600 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 0.035 µs
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SF28G-TP

This table gives cross-reference parts and alternative options found for SF28G-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SF28G-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SF28G HY Electronic Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs SF28G
SF28G-TP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs SF28G-TP-HF
Part Number Manufacturer Composite Price Description Compare
SF28GD1 Yangzhou Yangjie Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-204AC, DO-15, 2 PIN SF28G-TP vs SF28GD1
SF28G-BP Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs SF28G-BP
MUR260GPL-TP Micro Commercial Components Check for Price Rectifier Diode, SF28G-TP vs MUR260GPL-TP
20D6 Vishay Intertechnologies Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-204AL, SF28G-TP vs 20D6
MUR260GPL-AP Micro Commercial Components Check for Price Rectifier Diode, SF28G-TP vs MUR260GPL-AP
ER206_B0_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, ROHS COMPLIANT, HERMETIC SEALED, PLASTIC PACKAGE-2 SF28G-TP vs ER206_B0_10001
CR2-060TRLEADFREE Central Semiconductor Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs CR2-060TRLEADFREE
SF28X0 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs SF28X0
SF28-BP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs SF28-BP-HF
CR2-060TR Central Semiconductor Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-15, SF28G-TP vs CR2-060TR
