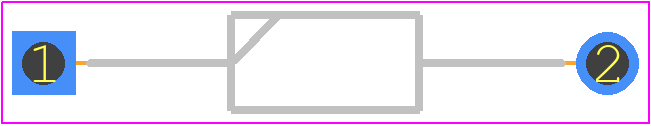

Footprint
-

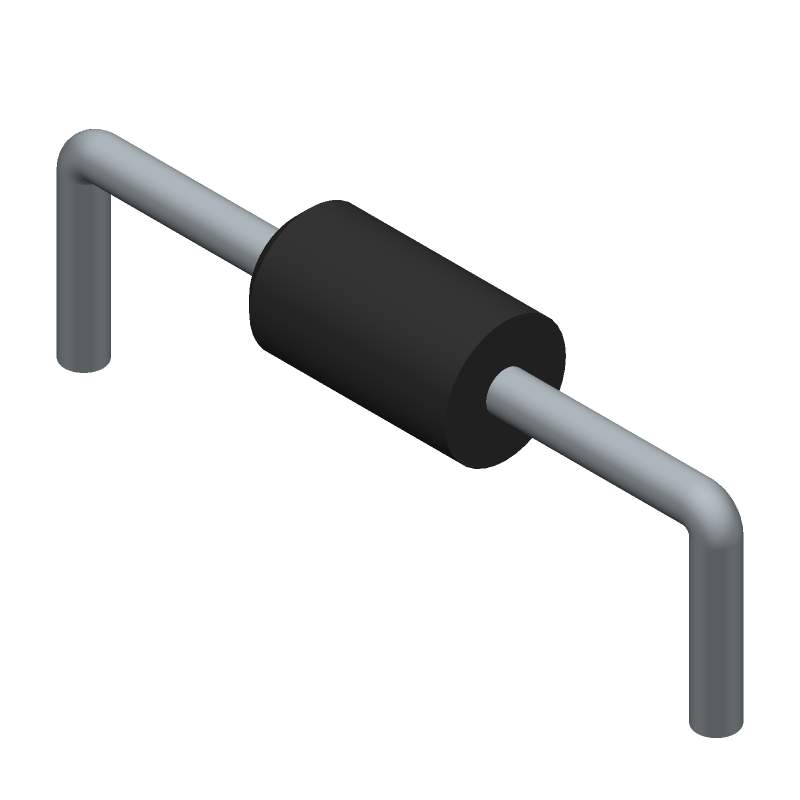

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SF18G by Taiwan Semiconductor
Results Overview of SF18G by Taiwan Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SF18G Information
SF18G by Taiwan Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SF18G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83AH2864
|
Newark | Rectifier, Single, 600V, 1A, Do-41 Rohs Compliant: Yes |Taiwan Semiconductor SF18G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 2820 |
|
$0.1340 / $0.4650 | Buy Now |
|
DISTI #
1801-SF18GCT-ND
|
DigiKey | DIODE STANDARD 600V 1A DO204AL Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
4720 In Stock |
|
$0.0615 / $0.4300 | Buy Now |
|
DISTI #
SF18G
|
Avnet Americas | Diode Super Fast Recovery Rectifier 600V 1A 2-Pin DO-204AL T/R - Tape and Reel (Alt: SF18G) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0659 / $0.0672 | Buy Now |
|
DISTI #
821-SF18G
|
Mouser Electronics | Rectifiers 35ns, 1A, 600V, Super Fast Recovery Rectifier RoHS: Compliant | 0 |
|
$0.0610 / $0.4200 | Order Now |
|
DISTI #
SF18G-TSC
|
TME | Diode: rectifying, THT, 600V, 1A, DO41 Min Qty: 1 | 0 |
|
$0.0850 / $0.5260 | RFQ |
|
DISTI #
SF18G
|
Avnet Asia | Diode Super Fast Recovery Rectifier 600V 1A 2-Pin DO-204AL T/R (Alt: SF18G) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days | 0 |
|
$0.0579 / $0.0647 | Buy Now |
Part Details for SF18G
SF18G CAD Models
SF18G Part Data Attributes
|
|
SF18G
Taiwan Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SF18G
Taiwan Semiconductor
Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, GREEN, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TAIWAN SEMICONDUCTOR CO LTD | |
| Package Description | DO-41, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Taiwan Semiconductor | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY, LOW POWER LOSS | |
| Application | SUPER FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.7 V | |
| JEDEC-95 Code | DO-204AL | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61249-2-21 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.035 µs | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
