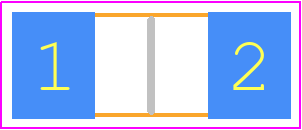

Footprint
-

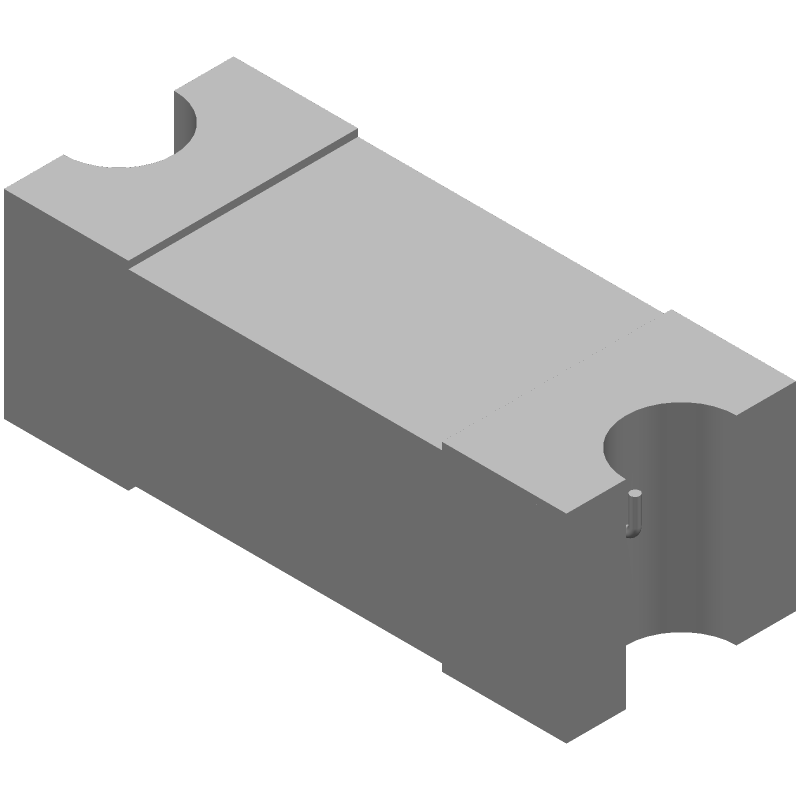

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SF-2410FP500W-2 by Bourns Inc
Results Overview of SF-2410FP500W-2 by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SF-2410FP500W-2 Information
SF-2410FP500W-2 by Bourns Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for SF-2410FP500W-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58AC3925
|
Newark | Fuse, Smd, 5A, Fast Acting, 2410, Fuse Current:5A, Product Range:Singlfuse Sf-2410Fpxxxw Series, Voltage Rating Vac:125V, Voltage Rating V Dc:32V, Blow Characteristic:Fast Acting, Fuse Case Style:2410, Breaking Capacity Current Rohs Compliant: Yes |Bourns SF-2410FP500W-2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1016 |
|
$0.9810 / $1.3400 | Buy Now |
|
DISTI #
SF-2410FP500W-2CT-ND
|
DigiKey | FUSE BRD MT 5A 125VAC/125DC 2410 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4941 In Stock |
|
$0.4125 / $1.1800 | Buy Now |
|
DISTI #
SF-2410FP500W-2
|
Avnet Americas | Fuse Chip 5A 125VAC 125VDC Fast 2-Pin SMD T/R - Tape and Reel (Alt: SF-2410FP500W-2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.3206 / $0.4163 | Buy Now |
|
DISTI #
652-SF-2410FP500W-2
|
Mouser Electronics | Surface Mount Fuses 5A 125V FAST ACTING RoHS: Compliant | 8884 |
|
$0.3790 / $0.9000 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.4135 / $0.4783 | Buy Now |
|
DISTI #
SF-2410FP500W-2
|
TTI | Surface Mount Fuses 5A 125V FAST ACTING RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.4340 / $0.4610 | Buy Now |
|
DISTI #
SF-2410FP500W-2
|
Avnet Abacus | Fuse Chip 5A 125VAC 125VDC Fast 2Pin SMD TR - Tape and Reel (Alt: SF-2410FP500W-2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 19 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.4135 / $0.4783 | Buy Now |
Part Details for SF-2410FP500W-2
SF-2410FP500W-2 CAD Models
SF-2410FP500W-2 Part Data Attributes
|
|
SF-2410FP500W-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SF-2410FP500W-2
Bourns Inc
Electric Fuse, Fast Blow, 5A, 125VAC, 125VDC, 50A (IR), Surface Mount, 2410,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Blow Characteristic | FAST | |
| Body Breadth | 2.49 mm | |
| Body Height | 2.16 mm | |
| Body Length or Diameter | 6.1 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | 2410 | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | 5 J | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | TR, 7 INCH | |
| Rated Breaking Capacity | 50 A | |
| Rated Current | 5 A | |
| Rated Voltage(AC) | 125 V | |
| Rated Voltage(DC) | 125 V | |
| Reference Standard | UL | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Trip Time or Delay | 0.01 s |
