Circuit Protection / Electric Fuses / SF-1206SA800W-2
Datasheets
SF-1206SA800W-2 by: Bourns Inc

Electric Fuse, Slow Blow, 8A, 32VDC, 50A (IR), Surface Mount, 1206,

Part Details for SF-1206SA800W-2 by Bourns Inc

Results Overview of SF-1206SA800W-2 by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming

SF-1206SA800W-2 Information

SF-1206SA800W-2 by Bourns Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.

Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.

Price & Stock for SF-1206SA800W-2

Part # Distributor Description Stock Price Buy
DISTI # 69AH2268
Newark Fuse, Aec-Q200, Slow Blow, 8A, 32V, 1206 Rohs Compliant: Yes |Bourns SF-1206SA800W-2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2985
  • 1 $1.1100
  • 10 $0.8960
  • 25 $0.8190
  • 50 $0.7410
  • 100 $0.6500
  • 250 $0.6020
$0.6020 / $1.1100 Buy Now
DISTI # 65AH0856
Newark 1206 Slow-Blow Wire 8A Auto /Tape & Reel - 7" Reel Rohs Compliant: Yes |Bourns SF-1206SA800W-2 RoHS: Compliant Min Qty: 3500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.6600
  • 4,000 $0.5930
  • 6,000 $0.5720
  • 10,000 $0.5590
$0.5590 / $0.6600 Buy Now
DISTI # 118-SF-1206SA800W-2CT-ND
DigiKey FUSE BOARD MOUNT 8A 32VDC 1206 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3470
In Stock
  • 1 $1.4600
  • 5 $1.2140
  • 10 $1.1200
  • 50 $0.9290
  • 100 $0.8570
  • 250 $0.7702
  • 500 $0.7102
  • 1,000 $0.6546
  • 3,500 $0.5641
  • 7,000 $0.5250
$0.5250 / $1.4600 Buy Now
DISTI # SF-1206SA800W-2
Avnet Americas SMD Fuse, Slow Blow, 8 A, 32 VDC, 1206 [3216 Metric], SF-1206SA-W - Tape and Reel (Alt: SF-1206SA800W-2) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 3,500 $0.5298
  • 7,000 $0.5214
  • 14,000 $0.3861
  • 21,000 $0.3841
  • 28,000 $0.3821
$0.3821 / $0.5298 Buy Now
DISTI # 652-SF-1206SA800W-2
Mouser Electronics Surface Mount Fuses 8A 32V TIME DELAY RoHS: Compliant 2997
  • 1 $1.0700
  • 10 $0.8690
  • 50 $0.7190
  • 100 $0.6310
  • 250 $0.5840
  • 500 $0.5230
  • 1,000 $0.4820
  • 3,500 $0.4120
  • 7,000 $0.3980
$0.3980 / $1.0700 Buy Now
Onlinecomponents.com SMD Slow Blow Fuse - 8A - 1206 - 32VDC - Automotive Grade - -55°C to 125°C - Tape&Reel RoHS: Compliant 0
  • 875 $1.0920
  • 1,750 $0.6720
  • 2,625 $0.5320
  • 3,500 $0.5210
$0.5210 / $1.0920 Buy Now
DISTI # SF-1206SA800W-2
TTI Surface Mount Fuses 8A 32V TIME DELAY RoHS: Compliant pbFree: Pb-Free Min Qty: 3500 Package Multiple: 3500 Container: Reel Americas - 0
  • 3,500 $0.6280
  • 7,000 $0.5250
  • 14,000 $0.5100
  • 21,000 $0.5000
$0.5000 / $0.6280 Buy Now
DISTI # SF-1206SA800W-2
Avnet Abacus Fuse Chip 8A 00084Ohm 32V 2Pin 1206 TR - Tape and Reel (Alt: SF-1206SA800W-2) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 18 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics SMD Slow Blow Fuse - 8A - 1206 - 32VDC - Automotive Grade - -55°C to 125°C - Tape&Reel RoHS: Compliant 0
  • 875 $1.0920
  • 1,750 $0.6720
  • 2,625 $0.5320
  • 3,500 $0.5210
$0.5210 / $1.0920 Buy Now

Part Details for SF-1206SA800W-2

SF-1206SA800W-2 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

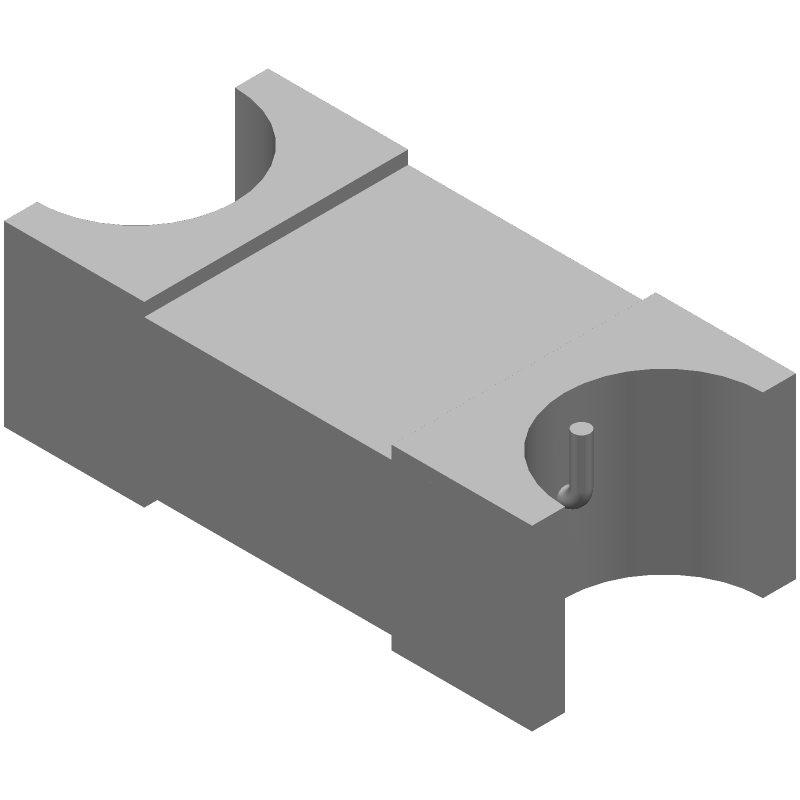

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SF-1206SA800W-2 Part Data Attributes

Parametric Data
SF-1206SA800W-2 Bourns Inc
Buy Now Datasheet
Compare Parts:
SF-1206SA800W-2 Bourns Inc Electric Fuse, Slow Blow, 8A, 32VDC, 50A (IR), Surface Mount, 1206,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Reach Compliance Code compliant
Factory Lead Time 17 Weeks
Samacsys Manufacturer Bourns
Blow Characteristic SLOW
Body Breadth 1.6 mm
Body Height 1.08 mm
Body Length or Diameter 3.2 mm
Circuit Protection Type ELECTRIC FUSE
Fuse Size 1206
JESD-609 Code e3
Joule Integral-Nom 13 J
Mounting Feature SURFACE MOUNT
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Packing Method TR, 7 INCH
Pre-arcing Time-Min 1 ms
Rated Breaking Capacity 50 A
Rated Current 8 A
Rated Voltage(DC) 32 V
Reference Standard AEC-Q200; UL
Surface Mount YES
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Trip Time or Delay 5 s
