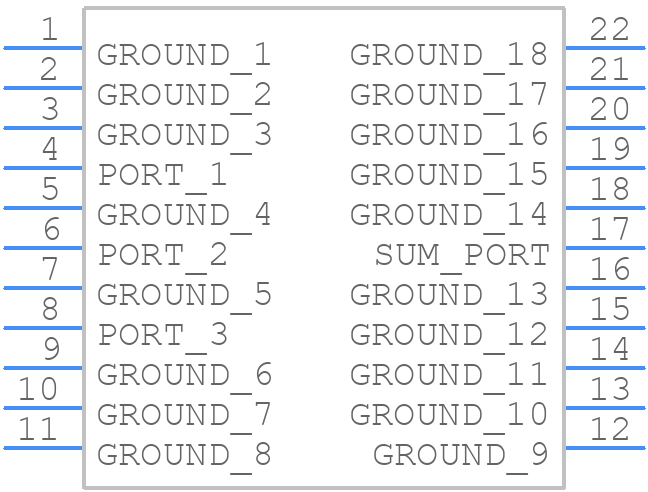

Part Symbol
-
Footprint
-

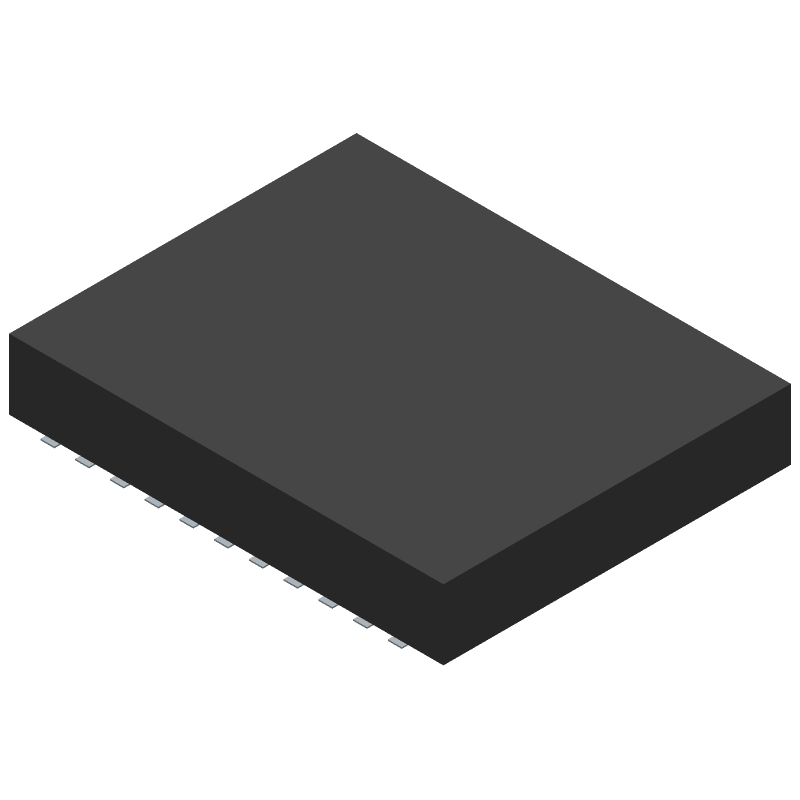

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SEPS-3-33+ by Mini-Circuits
Results Overview of SEPS-3-33+ by Mini-Circuits
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
SEPS-3-33+ Information
SEPS-3-33+ by Mini-Circuits is an RF/Microwave Splitter/Combiner.
RF/Microwave Splitter/Combiners are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 60022-116HLF | Amphenol Communications Solutions | 60022-116HLF-PCN13094 LTB SEP/15/14 | |
| 60022-120HLF | Amphenol Communications Solutions | 60022-120HLF-PCN13094 LTB SEP/15/14 |
Price & Stock for SEPS-3-33+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-SEPS-3-33+CT-ND
|
DigiKey | RF PWR DVDR 700MHZ-3GHZ 22SMD Min Qty: 1 Lead time: 22 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
211 In Stock |
|
$24.3000 / $35.9900 | Buy Now |
|
DISTI #
139-SEPS-3-33
|
Mouser Electronics | Signal Conditioning PWR SPLTR CMBD / SM / RoHS RoHS: Compliant | 200 |
|
$23.3300 / $35.9900 | Buy Now |
|
|
LCSC | 700MHz3GHz 1.2dB SMD-22P31.8x25.4mm RF Power Splitters / Combiners ROHS | 2 |
|
$35.0092 / $36.7743 | Buy Now |
Part Details for SEPS-3-33+
SEPS-3-33+ CAD Models
SEPS-3-33+ Part Data Attributes
|
|
SEPS-3-33+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
SEPS-3-33+
Mini-Circuits
Splitter And Combiner, 700MHz Min, 3000MHz Max, 1.7dB Insertion Loss-Max, ROHS COMPLIANT, JF1258, 22 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 36.02 dBm | |
| Insertion Loss-Max | 1.7 dB | |
| Isolation-Min | 14 dB | |
| JESD-609 Code | e2 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 22 | |
| Operating Frequency-Max | 3000 MHz | |
| Operating Frequency-Min | 700 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Equivalence Code | DILCC22,1 | |
| RF/Microwave Device Type | SPLITTER AND COMBINER | |
| Supply Current-Max | 2250 mA | |
| Surface Mount | YES | |
| Terminal Finish | TIN COPPER OVER NICKEL | |
| VSWR-Max | 2 |
SEPS-3-33+ Frequently Asked Questions (FAQ)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The SEPS-3-33+ is a high-power device, and proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal resistance (θJA) is specified in the datasheet.
-
The SEPS-3-33+ is rated for operation from -40°C to +85°C. However, it's essential to derate the device's power handling capabilities at higher temperatures to ensure reliable operation.
-
While the SEPS-3-33+ is primarily designed for linear applications, it can be used in switching applications with caution. However, the device's switching characteristics, such as rise and fall times, may not be optimized for high-frequency switching. Consult with Mini-Circuits' application engineers for guidance on specific use cases.
-
The SEPS-3-33+ is designed to operate with a 50-ohm input and output impedance. However, the device can be used with other impedance values with proper impedance matching. Consult the datasheet and application notes for guidance on impedance matching and transformation.
