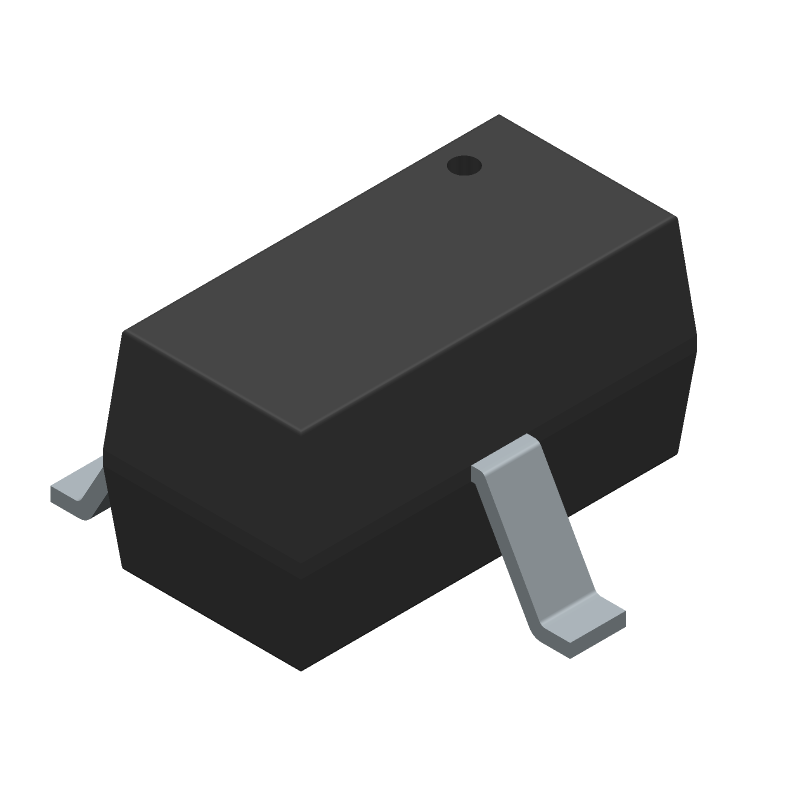

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SDTC114EET1G by onsemi
Results Overview of SDTC114EET1G by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
SDTC114EET1G Information
SDTC114EET1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SDTC114EET1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76T7235
|
Newark | Bipolar Digital Transistor, Npn, Sc75, Transistor Polarity:Single Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm, No. Of Pins:3 Pin Rohs Compliant: Yes |Onsemi SDTC114EET1G RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0220 / $0.0260 | Buy Now |
|
DISTI #
SDTC114EET1GOSCT-ND
|
DigiKey | TRANS PREBIAS NPN 50V 0.1A SC75 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5288 In Stock |
|
$0.0201 / $0.1900 | Buy Now |
|
DISTI #
SDTC114EET1G
|
Avnet Americas | Trans Digital BJT NPN 50V 100mA 3-Pin SOT-416 T/R - Tape and Reel (Alt: SDTC114EET1G) RoHS: Compliant Min Qty: 33000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0200 / $0.0218 | Buy Now |
|
DISTI #
863-SDTC114EET1G
|
Mouser Electronics | Digital Transistors SS SC75 BR XSTR NPN 50V RoHS: Compliant | 14745 |
|
$0.0260 / $0.1800 | Buy Now |
|
DISTI #
V72:2272_07284154
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 3-Pin SOT-416 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2303 Container: Cut Strips | Americas - 17948 |
|
$0.1000 / $0.1016 | Buy Now |
|
DISTI #
P40:2555_24093337
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 3-Pin SOT-416 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2309 | Europe - 9000 |
|
$0.0177 / $0.1636 | Buy Now |
|
DISTI #
V79:2366_25542132
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 3-Pin SOT-416 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2209 | Americas - 21 |
|
$0.0346 / $0.0990 | Buy Now |
|
|
Onlinecomponents.com | NPN Bipolar Digital Transistor (BRT) RoHS: Compliant | 0 |
|
$0.0187 / $0.0231 | Buy Now |
|
DISTI #
87892851
|
Verical | Trans Digital BJT NPN 50V 0.1A 300mW 3-Pin SOT-416 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 760 Package Multiple: 1 Date Code: 2211 | Americas - 71191 |
|
$0.0446 / $0.1190 | Buy Now |
|
DISTI #
86017668
|
Verical | Trans Digital BJT NPN 50V 0.1A 300mW 3-Pin SOT-416 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 13275 Package Multiple: 1 Date Code: 2301 | Americas - 24000 |
|
$0.0236 / $0.0283 | Buy Now |
Part Details for SDTC114EET1G
SDTC114EET1G CAD Models
SDTC114EET1G Part Data Attributes
|
|
SDTC114EET1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
SDTC114EET1G
onsemi
NPN Bipolar Digital Transistor (BRT), SC-75 (SOT-416) 3 LEAD, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Package Description | SC-75, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | BUILT IN BIAS RESISTOR RATIO IS 1 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 35 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
SDTC114EET1G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
-
Implement a robust thermal management system, ensure proper PCB design, and follow the recommended operating conditions. Also, consider using a thermistor or thermocouple for temperature monitoring.
-
Handle the device with an ESD wrist strap or mat, and ensure a humidity-controlled environment. Follow standard ESD handling procedures, and avoid touching the device pins or die.
-
Yes, SDTC114EET1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure compliance with specific industry standards and regulations.
-
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB design, thermal management, and power supply quality. Use oscilloscopes or logic analyzers to debug the issue.
