Diodes / Rectifier Diodes / SDT5H100LP5-7
Datasheets
SDT5H100LP5-7 by:

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon,

Part Details for SDT5H100LP5-7 by Diodes Incorporated

Results Overview of SDT5H100LP5-7 by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SDT5H100LP5-7 Information

SDT5H100LP5-7 by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SDT5H100LP5-7

Part # Distributor Description Stock Price Buy
DISTI # SDT5H100LP5-7DICT-ND
DigiKey DIODE SCHOTTKY 100V 5A POWERDI 5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 27465
In Stock
  • 1 $0.5500
  • 10 $0.3790
  • 100 $0.3080
  • 500 $0.2348
  • 1,500 $0.1565
  • 3,000 $0.1391
$0.1391 / $0.5500 Buy Now
DISTI # SDT5H100LP5-7
Avnet Americas Diode Schottky 100V 5A 3-Pin PowerDI5 T/R - Tape and Reel (Alt: SDT5H100LP5-7) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Reel 7500 Factory Stock
  • 1,500 $0.1235
  • 3,000 $0.1204
  • 6,000 $0.1174
  • 9,000 $0.1155
  • 12,000 $0.1149
$0.1149 / $0.1235 Buy Now
DISTI # 621-SDT5H100LP5-7
Mouser Electronics Schottky Diodes & Rectifiers Schottky Rectifier RoHS: Compliant 11830
  • 1 $0.5400
  • 10 $0.3790
  • 100 $0.3080
  • 500 $0.2350
  • 1,000 $0.1620
  • 1,500 $0.1440
  • 3,000 $0.1390
$0.1390 / $0.5400 Buy Now
DISTI # 73928708
RS Diode, 5A trench schottky barrier rectifier, 100V, VF 0.66V, POWERDI Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 0 Days Container: Bulk 20
  • 1 $0.9300
  • 5 $0.8500
  • 10 $0.7900
  • 100 $0.7200
  • 250 $0.6500
$0.6500 / $0.9300 Buy Now
Quest Components RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 5A, 100V V(RRM), SILICON 17
  • 1 $0.9800
  • 6 $0.4900
$0.4900 / $0.9800 Buy Now
Quest Components RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 5A, 100V V(RRM), SILICON 15
  • 1 $0.3600
  • 15 $0.3000
$0.3000 / $0.3600 Buy Now
Future Electronics 5A TRENCH SCHOTTKY BARRIER RECTIFIER POWERDI Min Qty: 1500 Package Multiple: 1500 19500
null
  • 1,500 $0.1300
  • 3,000 $0.1280
  • 4,500 $0.1270
  • 6,000 $0.1260
  • 7,500 $0.1240
$0.1240 / $0.1300 Buy Now
DISTI # SDT5H100LP5-7
TME Diode: Schottky rectifying, PowerDI®5, SMD, 100V, 5A, reel,tape Min Qty: 1 0
  • 1 $0.4320
  • 10 $0.3750
  • 100 $0.2630
  • 500 $0.1980
  • 1,000 $0.1770
  • 1,500 $0.1720
$0.1720 / $0.4320 RFQ
DISTI # DSKY5328
Rutronik SCHOTTKY-D. 5A 100V POWERDI5 RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Container: Reel Stock DE - 1500
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 1,500 $0.1650
  • 3,000 $0.1579
  • 4,500 $0.1544
  • 6,000 $0.1462
  • 9,000 $0.1391
$0.1391 / $0.1650 Buy Now
DISTI # SDT5H100LP5-7
Avnet Asia Diode Schottky 100V 5A 3-Pin PowerDI5 T/R (Alt: SDT5H100LP5-7) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 20 Weeks, 0 Days 0
  • 1,500 $0.1171
  • 3,000 $0.1156
  • 4,500 $0.1141
  • 7,500 $0.1127
  • 15,000 $0.1099
  • 37,500 $0.1072
  • 75,000 $0.1047
$0.1047 / $0.1171 Buy Now
DISTI # SDT5H100LP5-7
Avnet Silica Diode Schottky 100V 5A 3Pin PowerDI5 TR (Alt: SDT5H100LP5-7) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 10 Weeks, 0 Days Silica - 4500
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 1500 24000
  • 1,500 $0.2167
  • 24,000 $0.2000
$0.2000 / $0.2167 Buy Now
Win Source Electronics DIODE SCHOTTKY 100V 5A POWERDI5 / Diode Schottky 100 V 5A Surface Mount PowerDI™ 5 14128
  • 150 $0.3860
  • 365 $0.3169
  • 565 $0.3069
  • 780 $0.2970
  • 1,010 $0.2871
  • 1,350 $0.2573
$0.2573 / $0.3860 Buy Now

Part Details for SDT5H100LP5-7

SDT5H100LP5-7 CAD Models

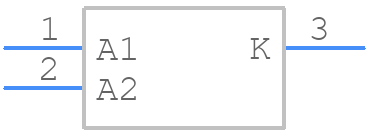

  • Part Symbol

    Part Symbol

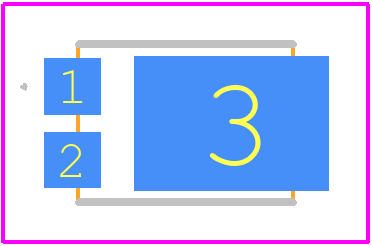

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SDT5H100LP5-7 Part Data Attributes

Parametric Data
SDT5H100LP5-7 Diodes Incorporated
Buy Now Datasheet
Compare Parts:
SDT5H100LP5-7 Diodes Incorporated Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DIODES INC
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 12 Weeks
Samacsys Manufacturer Diodes Incorporated
Additional Feature FREE WHEELING DIODE
Application FAST SOFT RECOVERY
Case Connection CATHODE
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.66 V
JESD-30 Code R-PDSO-F3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 150 A
Number of Elements 1
Number of Phases 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 5 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 3.5 µA
Surface Mount YES
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form FLAT
Terminal Position DUAL

Alternate Parts for SDT5H100LP5-7

This table gives cross-reference parts and alternative options found for SDT5H100LP5-7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SDT5H100LP5-7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SDT5H100P5-7D Diodes Incorporated $0.1699 Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SDT5H100LP5-7 vs SDT5H100P5-7D
SDT5H100P5-7 Diodes Incorporated $0.2431 Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SDT5H100LP5-7 vs SDT5H100P5-7
SS5P10-M3/86A Vishay Intertechnologies $0.3173 Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, TO-277A, SMPC, 3 PIN SDT5H100LP5-7 vs SS5P10-M3/86A
SDT5H100LP5-13 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SDT5H100LP5-7 vs SDT5H100LP5-13
SDT5H100LP5-7D Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SDT5H100LP5-7 vs SDT5H100LP5-7D
SS5P10-M3/87A Vishay Intertechnologies Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, TO-277A, SMPC, 3 PIN SDT5H100LP5-7 vs SS5P10-M3/87A
SS5P10HM3_A/I Vishay Intertechnologies Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, TO-277A, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMPC, 3 PIN SDT5H100LP5-7 vs SS5P10HM3_A/I

SDT5H100LP5-7 Related Parts

SDT5H100LP5-7 Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for SDT5H100LP5-7 is a standard SOT23 package with a 5-pin configuration. The datasheet provides a recommended PCB layout and land pattern, but it's essential to consult the manufacturer's application notes for specific guidance.

  • To ensure reliability in high-temperature applications, it's crucial to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.

  • The SDT5H100LP5-7 has an integrated ESD protection circuit, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Ensure that your PCB design and manufacturing process incorporate ESD protection measures, such as ESD-sensitive component handling and electrostatic discharge-protective packaging.

  • While the SDT5H100LP5-7 is primarily designed for low-frequency applications, it can be used in high-frequency applications with careful consideration of the device's frequency response and parasitic effects. Consult the datasheet and application notes for guidance on high-frequency operation, and consider simulation tools to model the device's behavior.

  • To troubleshoot SDT5H100LP5-7-related issues, start by consulting the datasheet and application notes. Verify that your design meets the recommended operating conditions and follows proper PCB layout guidelines. Use debugging tools, such as oscilloscopes and logic analyzers, to identify and isolate the issue. If necessary, consult with Diodes Incorporated's technical support or a qualified engineer for further assistance.
