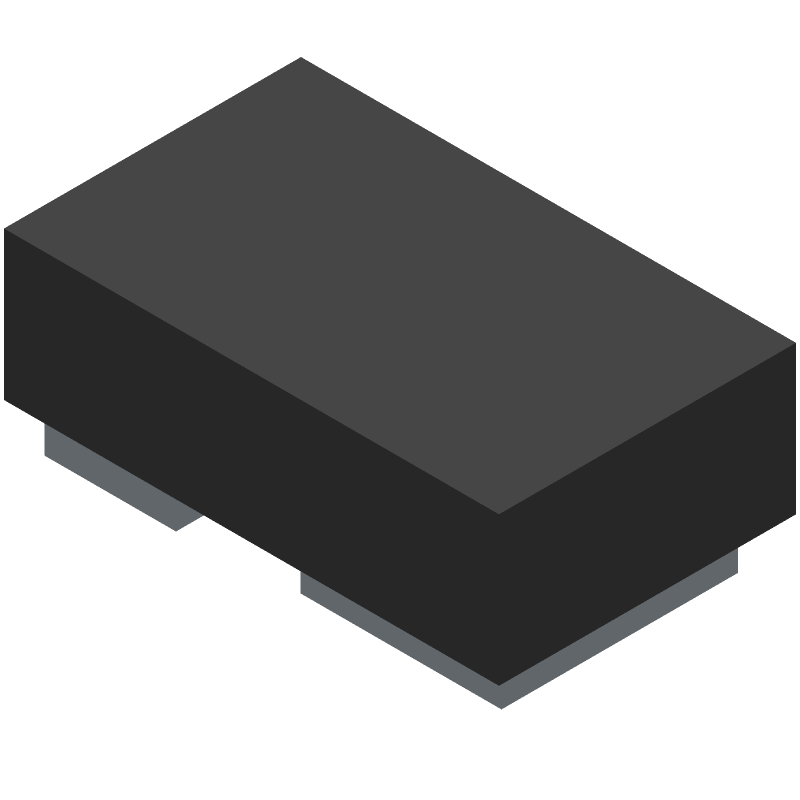

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SDM1A40CSP-7 by Diodes Incorporated
Results Overview of SDM1A40CSP-7 by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SDM1A40CSP-7 Information
SDM1A40CSP-7 by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SDM1A40CSP-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK7146
|
Newark | Schottky Rectifier, 40V, 1A, X3-Wlb1006 Rohs Compliant: Yes |Diodes Inc. SDM1A40CSP-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1940 |
|
$0.1010 / $0.4100 | Buy Now |
|
DISTI #
31-SDM1A40CSP-7TR-ND
|
DigiKey | DIODE SCHOTTKY 40V 1A X3WLB10062 Min Qty: 5000 Lead time: 12 Weeks Container: Tape & Reel (TR) |
5000 In Stock |
|
$0.0629 / $0.0768 | Buy Now |
|
DISTI #
SDM1A40CSP-7
|
Avnet Americas | Schottky Rectifier X3-WLB1006-2 T&R 5K - Tape and Reel (Alt: SDM1A40CSP-7) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 80000 Factory Stock |
|
$0.0598 / $0.0608 | Buy Now |
|
DISTI #
621-SDM1A40CSP-7
|
Mouser Electronics | Schottky Diodes & Rectifiers 1A Schottky 0.56Vf 75uA 40-volt CSP RoHS: Compliant | 1142 |
|
$0.0620 / $0.4100 | Buy Now |
|
DISTI #
SDM1A40CSP-7
|
TME | Diode: Schottky rectifying, X3-WLB1006-2, SMD, 40V, 1A, reel,tape Min Qty: 1 | 0 |
|
$0.1040 / $0.3660 | RFQ |
|
DISTI #
SDM1A40CSP-7
|
Avnet Silica | Schottky Rectifier X3WLB10062 TR 5K (Alt: SDM1A40CSP-7) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | Silica - 5000 |
|
Buy Now | |
|
|
LCSC | 40V Independent Type 1A 510mV1A X3-WLB1006-2 Schottky Diodes ROHS | 4825 |
|
$0.0901 / $0.1740 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 5000 |
|
RFQ | |
|
|
Win Source Electronics | DIODE SCHOTTKY 40V 1A WLB1006 | 15000 |
|
$0.1565 / $0.2346 | Buy Now |
Part Details for SDM1A40CSP-7
SDM1A40CSP-7 CAD Models
SDM1A40CSP-7 Part Data Attributes
|
|
SDM1A40CSP-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
SDM1A40CSP-7
Diodes Incorporated
Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, X3-WLB1006-2, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Application | GENERAL PURPOSE | |
| Case Connection | ANODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-XBCC-N2 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 14 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM |
SDM1A40CSP-7 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for SDM1A40CSP-7 is a 1.6mm x 1.2mm pad with a 0.5mm x 0.5mm thermal pad in the center. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder paste to the PCB pad, and then place the SDM1A40CSP-7 on the pad. Use a reflow oven or a hot air gun to solder the component. Avoid overheating, as it can damage the device.
-
The maximum operating temperature for SDM1A40CSP-7 is 125°C. However, it's recommended to operate the device at a temperature below 100°C to ensure optimal performance and reliability.
-
While SDM1A40CSP-7 is designed to operate in a variety of environments, it's not recommended to use it in high-humidity environments (>80% RH) without proper protection. Consider using a conformal coating or potting the device to prevent moisture ingress.
-
To prevent electrostatic discharge (ESD) damage, handle SDM1A40CSP-7 with an ESD wrist strap or mat. Ensure the PCB and components are properly grounded, and avoid touching the device's pins or exposed metal parts.
