Switches / DIP Switches / SDA02H0SB
Datasheets

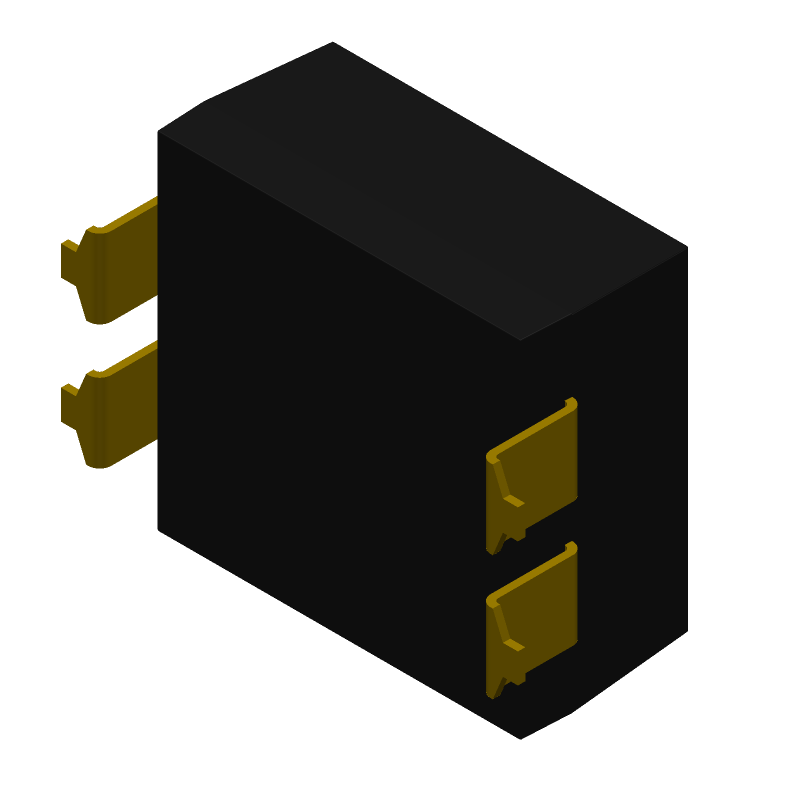

SDA02H0SB by:

SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part Details for SDA02H0SB by C&K

Results Overview of SDA02H0SB by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SDA02H0SB Information

SDA02H0SB by C&K is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for SDA02H0SB

Part # Distributor Description Stock Price Buy
DISTI # 79AH6378
Newark Dip/Rotary Dip Rohs Compliant: Yes |C&k Components SDA02H0SB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 486
Buy Now
DISTI # 35AH5903
Newark Dip Switch, Spst, 2Pos, 0.1A, 5Vdc, Smd, No. Of Circuits:2Circuits, Switch Actuator Style:Slide, Switch Mounting:Surface Mount, Contact Configuration:Spst-No, Contact Voltage Dc Max:5V, Contact Current Dc Max:100Ma Rohs Compliant: Yes |C&k Components SDA02H0SB RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $1.3200
$1.3200 Buy Now
DISTI # CKN6053-ND
DigiKey SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1 Lead time: 11 Weeks Container: Tube 7286
In Stock
  • 1 $1.8100
  • 10 $1.5790
  • 60 $1.4158
  • 120 $1.3564
  • 300 $1.2812
  • 540 $1.2348
  • 1,020 $1.1863
  • 2,520 $1.1203
  • 5,040 $1.0720
$1.0720 / $1.8100 Buy Now
DISTI # 611-SDA02H0SB
Mouser Electronics DIP Switches / SIP Switches FLUSH ACT 2 POS RoHS: Compliant 946
  • 1 $1.7300
  • 10 $1.4200
  • 120 $1.3400
  • 300 $1.1500
  • 540 $1.1100
  • 1,020 $1.1000
  • 5,040 $1.0700
$1.0700 / $1.7300 Buy Now
DISTI # 16864755
Verical Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube RoHS: Compliant Min Qty: 55 Package Multiple: 1 Americas - 9132
  • 1 $1.1400
  • 300 $1.1300
  • 550 $1.1000
  • 600 $1.0500
$1.0500 / $1.1400 Buy Now
Bristol Electronics   25
RFQ
Quest Components SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT 12
  • 1 $4.5000
  • 3 $3.7500
  • 8 $3.3000
$3.3000 / $4.5000 Buy Now
DISTI # SDA02H0SB
TTI DIP Switches / SIP Switches FLUSH ACT 2 POS RoHS: Compliant Min Qty: 600 Package Multiple: 60 Container: Tube Americas - 0
  • 600 $1.3300
  • 1,020 $1.3000
$1.3000 / $1.3300 Buy Now
DISTI # SDA02H0SB
IBS Electronics SWITCH DIP OFF ON SPST 2 RECESSED SLIDE 0.1A 24VDC GULL WING 1000CYCLE 2.54MM SMD TUBE Min Qty: 150 Package Multiple: 1 9132
  • 150 $1.2000
  • 300 $1.1250
  • 550 $1.1000
  • 600 $1.0500
$1.0500 / $1.2000 Buy Now
DISTI # 000000000002422733
Sager DIP Switches / SIP Switches FLUSH ACT 2 POS Min Qty: 1 2400
  • 1 $1.3600
  • 118 $1.2100
  • 296 $1.1900
  • 592 $1.1300
  • 1,183 $1.0900
  • 2,367 $1.0600
$1.0600 / $1.3600 Buy Now

Part Details for SDA02H0SB

SDA02H0SB Part Data Attributes

Parametric Data
SDA02H0SB C&K
Buy Now Datasheet
Compare Parts:
SDA02H0SB C&K SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Factory Lead Time 48 Weeks
Samacsys Manufacturer C & K COMPONENTS
Actuator Material POLYAMIDE6T
Actuator Type SLIDE TYPE
Additional Feature LOW PROFIE, UL
Body Breadth 7.06 mm
Body Color BLACK
Body Height 3.5 mm
Body Length or Diameter 7.49 mm
Center Contact Material BERYLLIUM COPPER
Center Contact Plating GOLD
Contact Current(DC)-Max 0.1 A
Contact (DC) Max Rating R Load 0.1A@5VDC
Contact Function ON-OFF
Contact Resistance 0.05 mΩ
Contact Voltage(DC)-Max 5 V
Dielectric Withstand Volts 300VDC V
Electrical Life 1000 Cycle(s)
End Contact Material BERYLLIUM COPPER
End Contact Plating GOLD
Housing Material POLYPHENYLENE SULPHIDE
Insulation Resistance 100000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
JESD-609 Code e4
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Positions 2
Number of Switch Sections 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method TUBE
Sealing TOP TAPE SEALED
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type SLIDE DIP SWITCH
Terminal Finish GOLD OVER NICKEL
Terminal Material BRASS
Termination Type SOLDER

Alternate Parts for SDA02H0SB

This table gives cross-reference parts and alternative options found for SDA02H0SB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SDA02H0SB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SDA02H0SBR C&K $1.6379 SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT SDA02H0SB vs SDA02H0SBR
SDA02H0SBD C&K $1.6844 SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT SDA02H0SB vs SDA02H0SBD
SDA02H0SKR C&K Check for Price SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT SDA02H0SB vs SDA02H0SKR
SDA02H0SK ITT Interconnect Solutions Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight SDA02H0SB vs SDA02H0SK
SDA02H0SKD C&K Check for Price SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 50VDC, SURFACE MOUNT-STRAIGHT SDA02H0SB vs SDA02H0SKD
Part Number Manufacturer Composite Price Description Compare
219-2LPSTR CTS Corporation $0.4630 Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-2LPSTR
SDA02H0SBDR C&K $2.8772 SLIDE DIP SWITCH- SDA02H0SB vs SDA02H0SBDR
219-2ESJ CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-2ESJ
2192ESTJRFP CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 2192ESTJRFP
219-2LPSTF CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-2LPSTF
219-02LPSTJR CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-02LPSTJR
219-2MSRF CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-2MSRF
219-02LPSTJ CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-02LPSTJ
219-02MST CTS Corporation Check for Price Slide Dip Switch, 2 Switches, SPST, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT SDA02H0SB vs 219-02MST
ADE02S TE Connectivity Check for Price SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,SURFACE MOUNT-STRAIGHT SDA02H0SB vs ADE02S

SDA02H0SB Related Parts

SDA02H0SB Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the SDA02H0SB is -40°C to 85°C.

  • To ensure proper debouncing, it is recommended to use a debouncing circuit or a microcontroller with built-in debouncing capabilities. Additionally, the switch can be debounced using software by implementing a delay between switch transitions.

  • The maximum current rating for the SDA02H0SB is 50mA. Exceeding this rating may cause damage to the switch or affect its reliability.

  • Yes, the SDA02H0SB is designed to withstand high-vibration environments. However, it is recommended to follow proper mounting and installation procedures to ensure the switch remains secure and functional.

  • The SDA02H0SB can be cleaned using a soft brush and a mild detergent. Avoid using harsh chemicals or abrasive materials that may damage the switch or its components.
